Snail Job

🚀 灵活，可靠和快速的分布式任务重试和分布式任务调度平台

参考文档：

基础配置

添加依赖

xml

<properties>
    <snail-job.version>1.3.0</snail-job.version>
</properties>
<dependencies>
    <!--Snail Job：灵活，可靠和快速的分布式任务重试和分布式任务调度平台-->
    <dependency>
        <groupId>com.aizuda</groupId>
        <artifactId>snail-job-client-starter</artifactId>
        <version>${snail-job.version}</version>
    </dependency>
    <!--重试模块-->
    <dependency>
        <groupId>com.aizuda</groupId>
        <artifactId>snail-job-client-retry-core</artifactId>
        <version>${snail-job.version}</version>
    </dependency>
    <!--定时任务-->
    <dependency>
        <groupId>com.aizuda</groupId>
        <artifactId>snail-job-client-job-core</artifactId>
        <version>${snail-job.version}</version>
    </dependency>
</dependencies>

完整的 pom.xml 文件如下

xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <!-- 项目模型版本 -->
    <modelVersion>4.0.0</modelVersion>

    <!-- 项目坐标 -->
    <groupId>local.ateng.java</groupId>
    <artifactId>snail-job</artifactId>
    <version>v1.0</version>
    <name>snail-job</name>
    <description>SnailJob 🚀 灵活，可靠和快速的分布式任务重试和分布式任务调度平台</description>
    <url>https://snailjob.opensnail.com/</url>

    <!-- 项目属性 -->
    <properties>
        <java.version>21</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>3.4.1</spring-boot.version>
        <maven-compiler.version>3.12.1</maven-compiler.version>
        <lombok.version>1.18.36</lombok.version>
        <snail-job.version>1.3.0</snail-job.version>
        <hutool.version>5.8.35</hutool.version>
    </properties>

    <!-- 项目依赖 -->
    <dependencies>
        <!-- Spring Boot Web Starter: 包含用于构建Web应用程序的Spring Boot依赖项 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <exclusions>
                <exclusion>
                    <artifactId>spring-boot-starter-tomcat</artifactId>
                    <groupId>org.springframework.boot</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <!-- Web 容器使用 undertow 性能更强 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-undertow</artifactId>
        </dependency>

        <!-- Spring Boot Starter Test: 包含用于测试Spring Boot应用程序的依赖项 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- Lombok: 简化Java代码编写的依赖项 -->
        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- Hutool: Java工具库，提供了许多实用的工具方法 -->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>${hutool.version}</version>
        </dependency>

        <!--Snail Job：灵活，可靠和快速的分布式任务重试和分布式任务调度平台-->
        <dependency>
            <groupId>com.aizuda</groupId>
            <artifactId>snail-job-client-starter</artifactId>
            <version>${snail-job.version}</version>
        </dependency>
        <!--重试模块-->
        <dependency>
            <groupId>com.aizuda</groupId>
            <artifactId>snail-job-client-retry-core</artifactId>
            <version>${snail-job.version}</version>
        </dependency>
        <!--定时任务-->
        <dependency>
            <groupId>com.aizuda</groupId>
            <artifactId>snail-job-client-job-core</artifactId>
            <version>${snail-job.version}</version>
        </dependency>

    </dependencies>

    <!-- Spring Boot 依赖管理 -->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <!-- 插件仓库配置 -->
    <repositories>
        <!-- Central Repository -->
        <repository>
            <id>central</id>
            <name>阿里云中央仓库</name>
            <url>https://maven.aliyun.com/repository/central</url>
            <!--<name>Maven官方中央仓库</name>
            <url>https://repo.maven.apache.org/maven2/</url>-->
        </repository>
    </repositories>

    <!-- 构建配置 -->
    <build>
        <finalName>${project.name}-${project.version}</finalName>
        <plugins>
            <!-- Maven 编译插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>${maven-compiler.version}</version>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                    <encoding>${project.build.sourceEncoding}</encoding>
                    <!-- 编译参数 -->
                    <compilerArgs>
                        <!-- 启用Java 8参数名称保留功能 -->
                        <arg>-parameters</arg>
                    </compilerArgs>
                </configuration>
            </plugin>

            <!-- Spring Boot Maven 插件 -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
        <resources>
            <!-- 第一个资源配置块 -->
            <resource>
                <directory>src/main/resources</directory>
                <filtering>false</filtering>
            </resource>
            <!-- 第二个资源配置块 -->
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>application*</include>
                    <include>bootstrap*.yml</include>
                    <include>common*</include>
                    <include>banner*</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

</project>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171

服务端创建命名空间和组

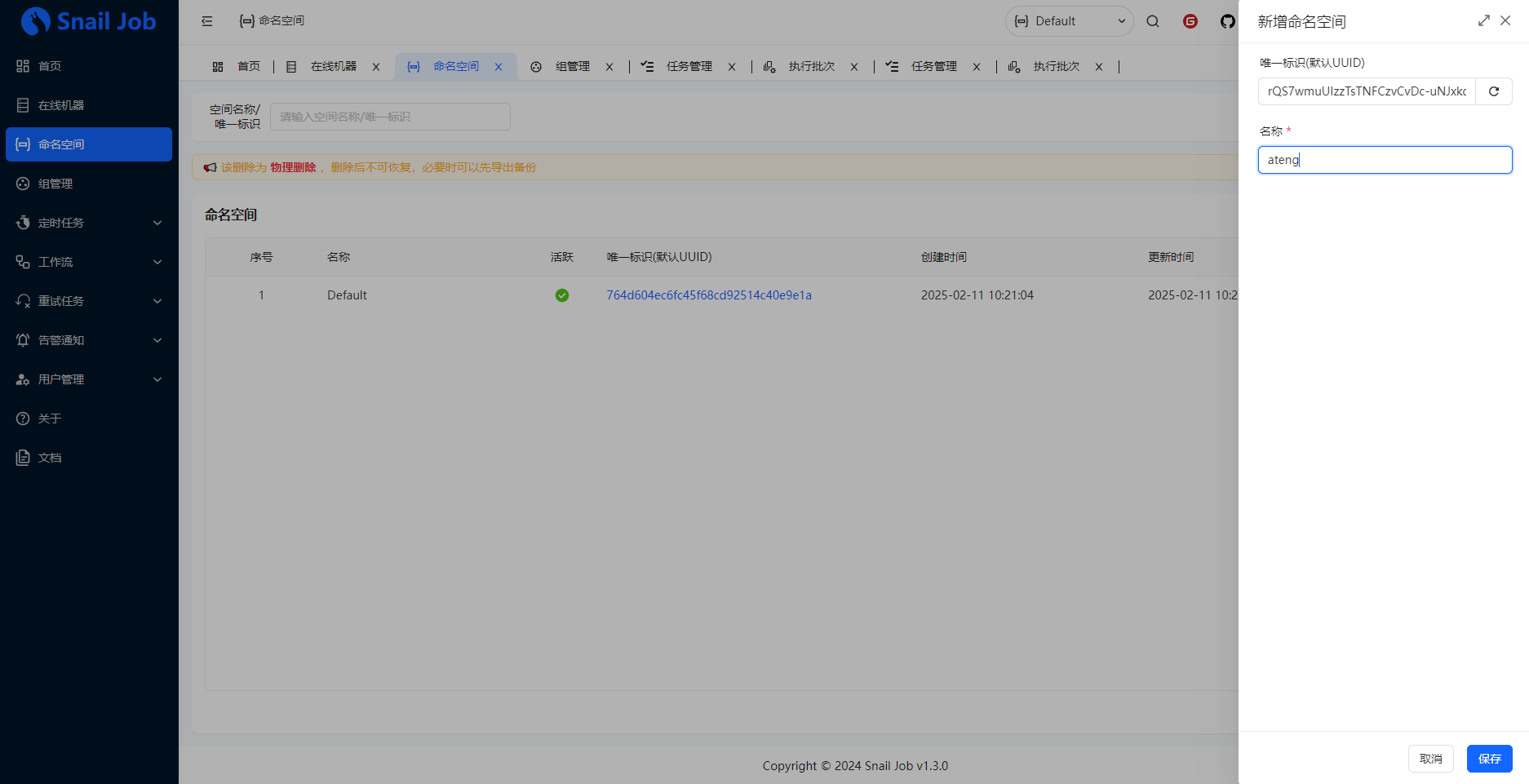

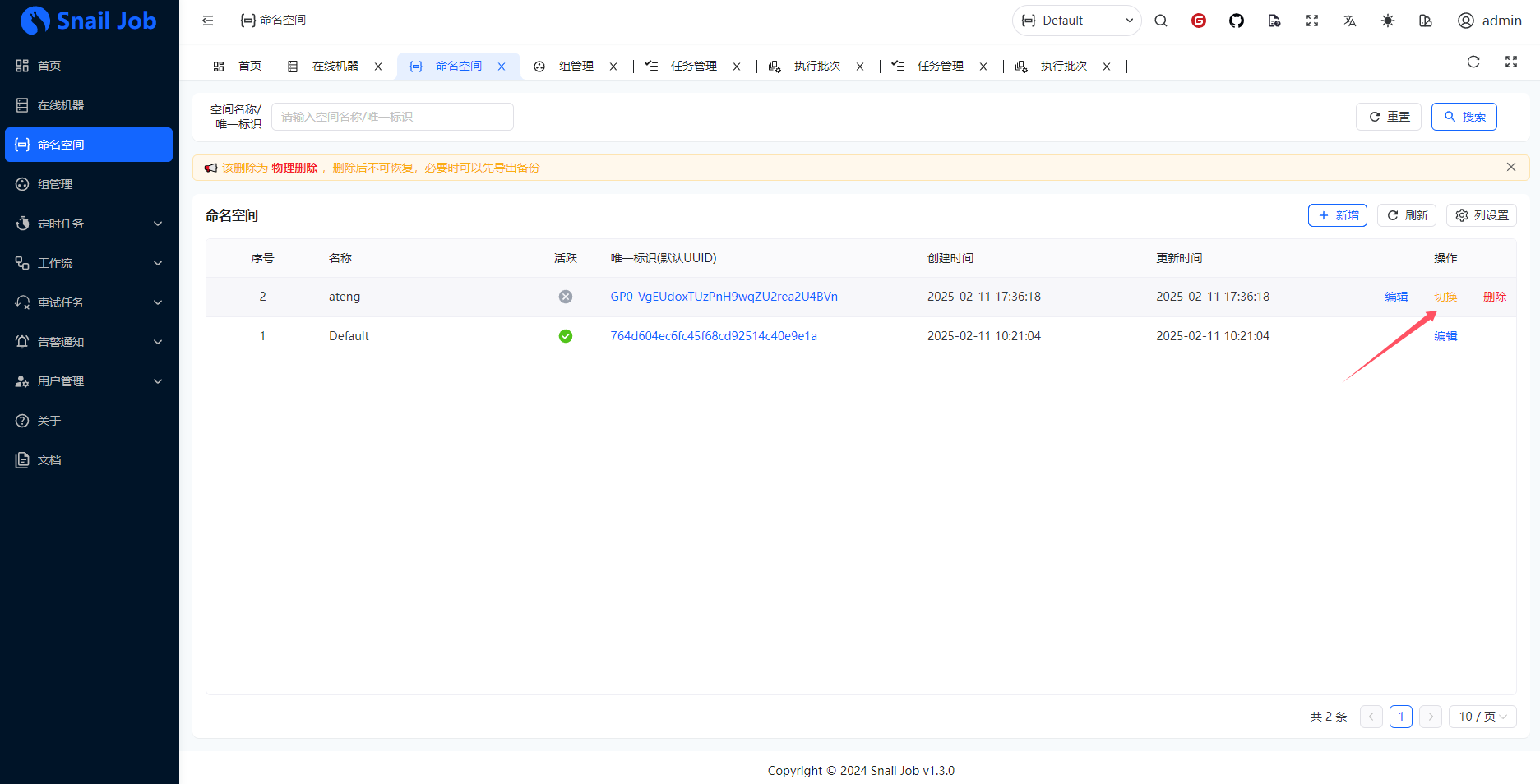

新增命名空间

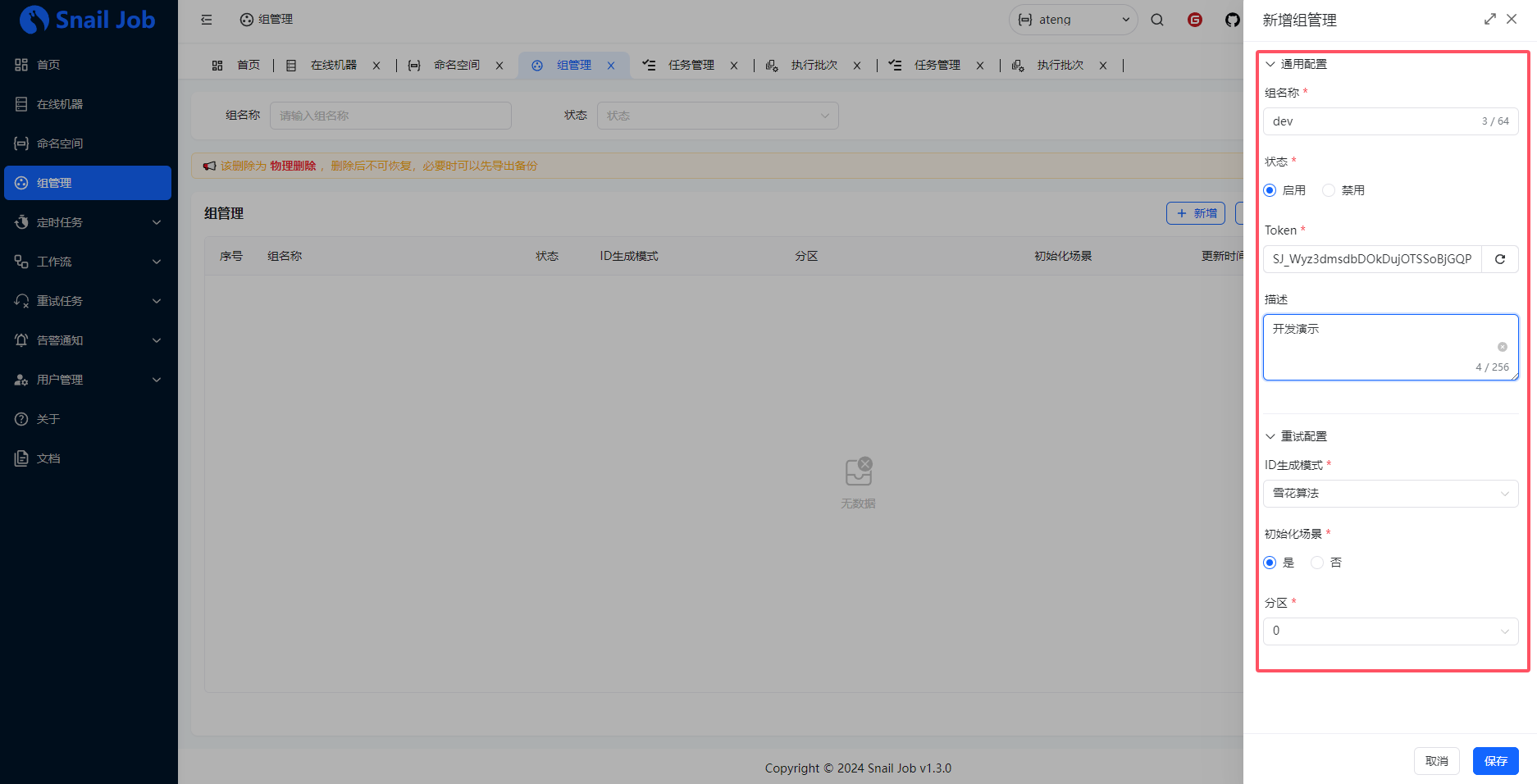

新增组

编辑配置

yaml

server:
  port: 19001
  servlet:
    context-path: /
spring:
  main:
    web-application-type: servlet
  application:
    name: ${project.artifactId}
---
# Snail Job
snail-job:
  # 任务调度服务器信息
  server:
    # 服务器IP地址（或域名）；集群时建议通过 nginx 做负载均衡
    host: 192.168.1.10
    # 服务器通讯端口（不是后台管理页面服务端口）
    port: 32682
  # 通知类型
  rpc-type: grpc
  # 命名空间 【上面配置的空间的唯一标识】
  namespace: GP0-VgEUdoxTUzPnH9wqZU2rea2U4BVn
  # 接入组名【上面配置的组名称】注意: 若通过注解配置了这里的配置不生效
  group: dev
  # 接入组 token 【上面配置的token信息】
  token: SJ_Wyz3dmsdbDOkDujOTSSoBjGQP1BMsVnj
  # 客户端绑定IP，必须服务器可以访问到；默认自动推断，在服务器无法调度客户端时需要手动配置
  #host: 127.0.0.1
  # 客户端通讯端口，默认 1789，设置客户端client为-1时，支持随机端口号
  port: -1

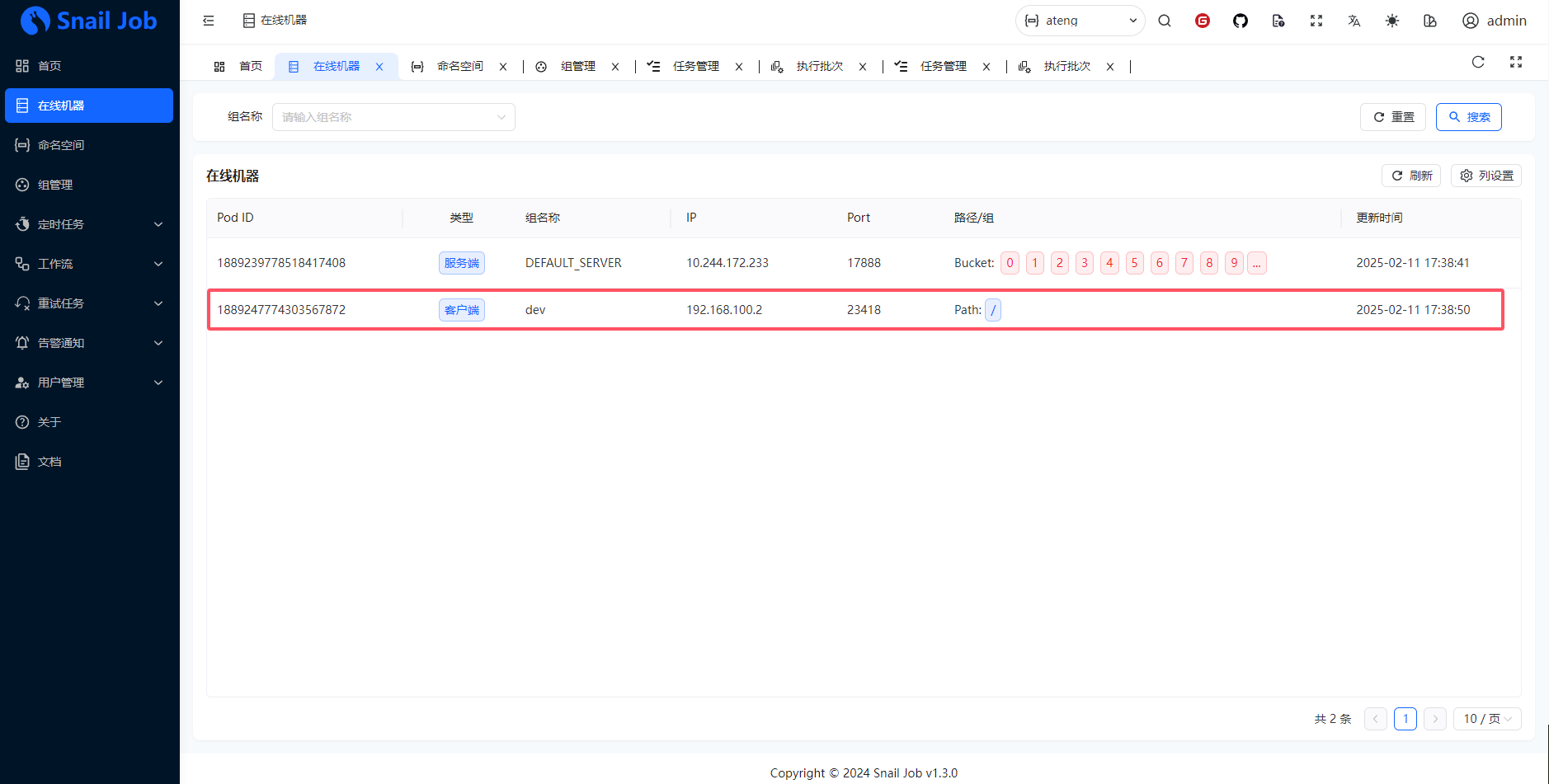

启动Snail Job

java

package local.ateng.java.snailjob;

import com.aizuda.snailjob.client.starter.EnableSnailJob;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@EnableSnailJob
public class TaskSnailJobApplication {

    public static void main(String[] args) {
        SpringApplication.run(TaskSnailJobApplication.class, args);
    }

}

定时任务

参考：官方文档

创建执行器

java

package local.ateng.java.snailjob.task;

import com.aizuda.snailjob.client.job.core.annotation.JobExecutor;
import com.aizuda.snailjob.client.job.core.dto.JobArgs;
import com.aizuda.snailjob.client.model.ExecuteResult;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;

/**
 * Snail Job 执行器
 *
 * @author 孔余
 * @email 2385569970@qq.com
 * @since 2025-02-11
 */
@Component
@Slf4j
public class DemoTask {

    @JobExecutor(name = "demoJob")
    public ExecuteResult jobExecute(JobArgs jobArgs) {
        log.info("执行Snail Job任务, JobArgs={}, 线程={}", jobArgs, Thread.currentThread());
        return ExecuteResult.success();
    }

}

创建定时任务

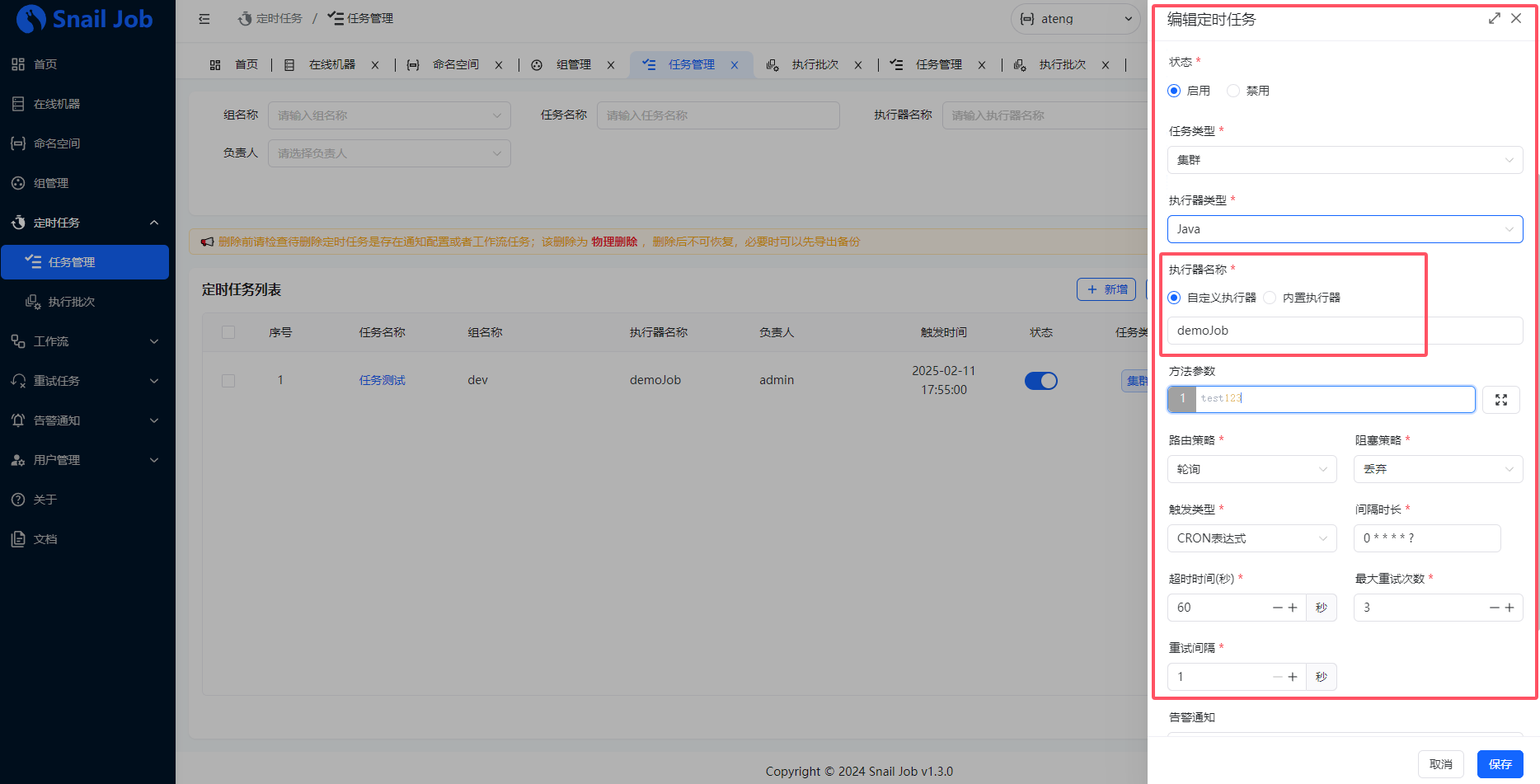

在Snail Job上创建一个 任务测试 的定时任务

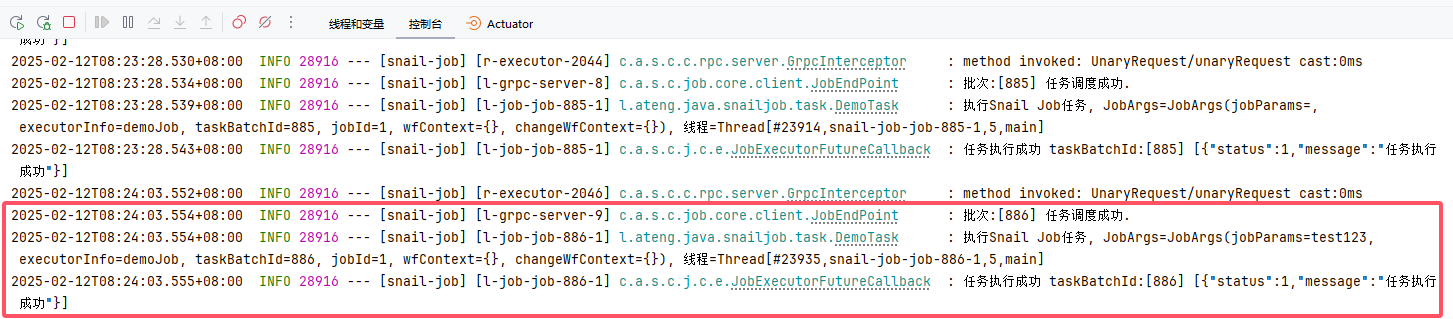

任务执行后如下图所示

重试任务

参考：官方文档

创建重试服务

java

package local.ateng.java.snailjob.service;

import cn.hutool.core.util.RandomUtil;
import com.aizuda.snailjob.client.core.annotation.Retryable;
import com.aizuda.snailjob.client.core.retryer.RetryType;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;

@Component
@Slf4j
public class RetryService {

    // 本地重试
    @Retryable(scene = "localRetry", localTimes = 5, localInterval = 3, retryStrategy = RetryType.ONLY_LOCAL)
    public void localRetry() {
        myTask("localRetry");
    }

    // 远程重试
    @Retryable(scene = "remoteRetry", retryStrategy = RetryType.ONLY_REMOTE)
    public void remoteRetry() {
        myTask("remoteRetry");
    }

    // 先本地重试，再远程重试
    @Retryable(scene = "localRemoteRetry", localTimes = 5, localInterval = 3, retryStrategy = RetryType.LOCAL_REMOTE)
    public void localRemoteRetry() {
        myTask("localRemoteRetry");
    }

    private void myTask(String type) {
        log.info("[重试任务][{}] 运行任务...", type);
        int num = RandomUtil.randomInt(0, 3);
        log.info("[重试任务][{}] 计算结果：{}", type, 100 / num);
    }

}

创建重试接口

java

package local.ateng.java.snailjob.controller;

import local.ateng.java.snailjob.service.RetryService;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/retry")
@RequiredArgsConstructor(onConstructor = @__(@Autowired))
public class RetryController {
    private final RetryService retryService;

    @GetMapping("/localRetry")
    public String localRetryApi() {
        retryService.localRetry();
        return "ok";
    }

    @GetMapping("/remoteRetry")
    public String remoteRetryApi() {
        retryService.remoteRetry();
        return "ok";
    }

    @GetMapping("/localRemoteRetry")
    public String localRemoteRetryApi() {
        retryService.localRemoteRetry();
        return "ok";
    }

}

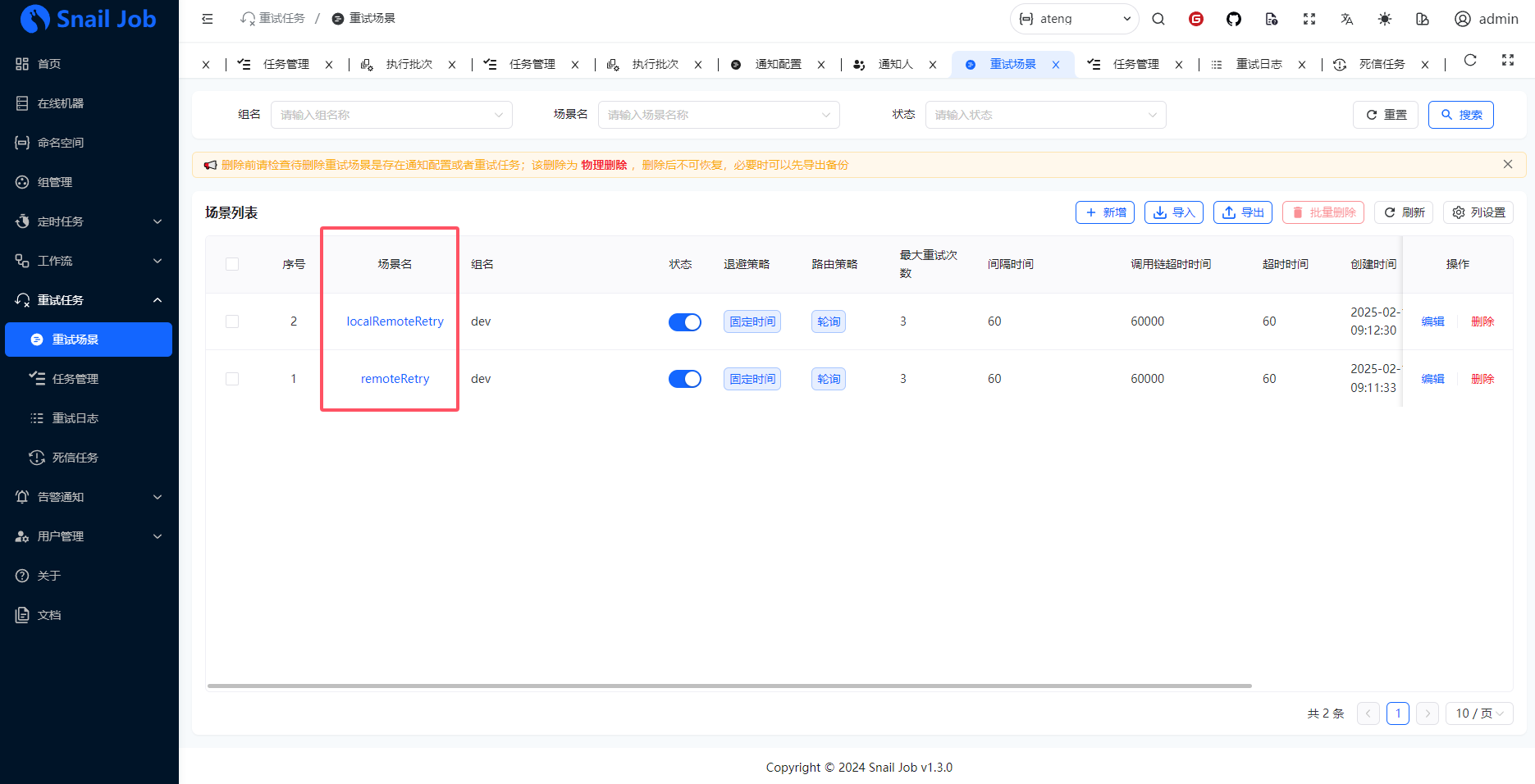

添加重试场景

添加对应服务注解中的scene场景名称，后续调用接口触发任务的重试

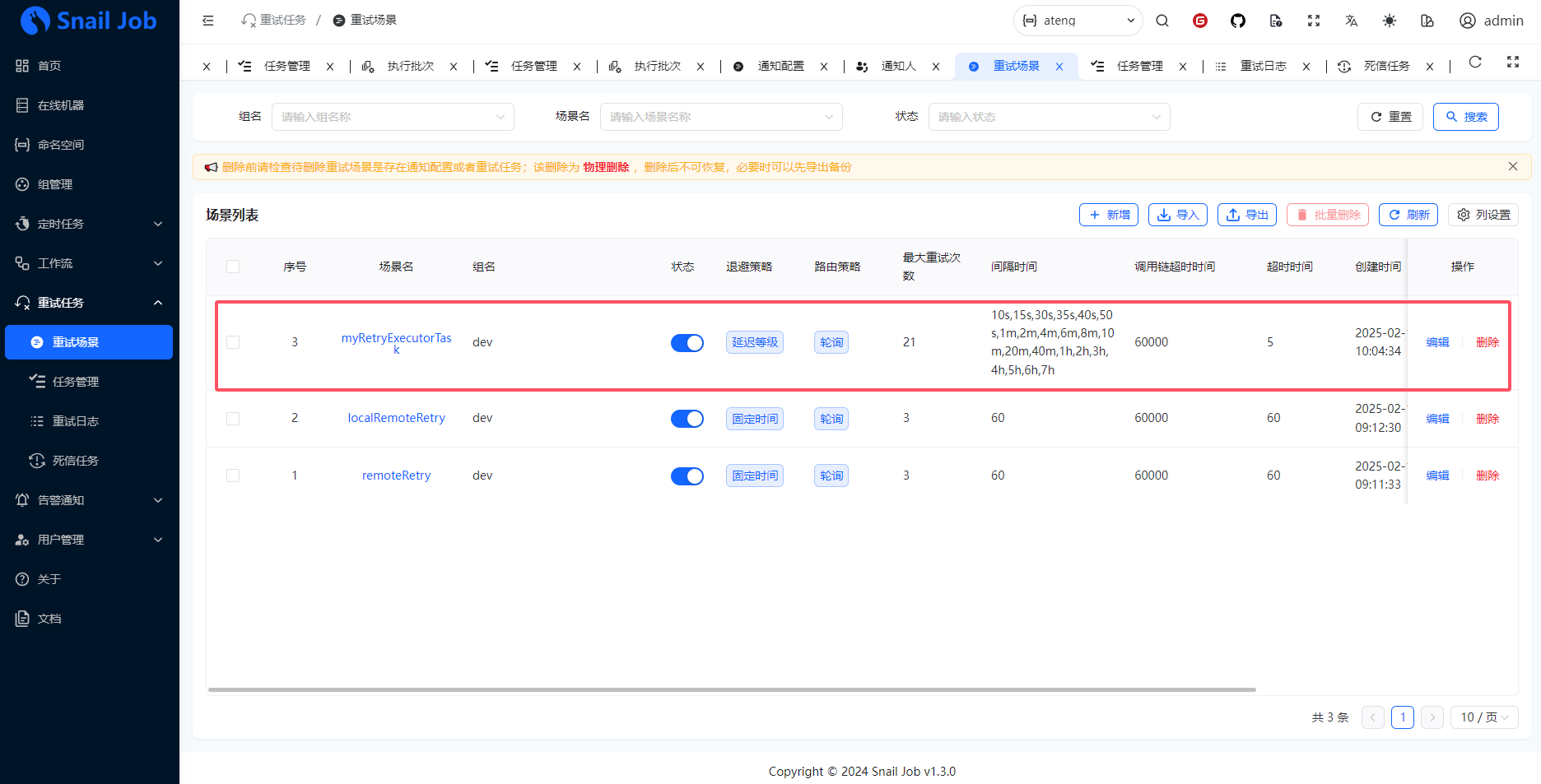

手动创建重试任务

参考：官方文档

创建VO

java

package local.ateng.java.snailjob.vo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.time.LocalDateTime;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class MyUserVo {
    private Long id;
    private String name;
    private Integer age;
    private LocalDateTime startTime;
    private LocalDateTime endTime;
}

创建ExecutorMethodRegister

java

package local.ateng.java.snailjob.task;

import cn.hutool.core.convert.Convert;
import com.aizuda.snailjob.client.core.annotation.ExecutorMethodRegister;
import com.aizuda.snailjob.client.core.strategy.ExecutorMethod;
import local.ateng.java.snailjob.vo.MyUserVo;
import lombok.extern.slf4j.Slf4j;

@ExecutorMethodRegister(scene = RetryExecutorTask.SCENE)
@Slf4j
public class RetryExecutorTask implements ExecutorMethod {
    /**
     * 自定义场景值
     */
    public final static String SCENE = "myRetryExecutorTask";

    @Override
    public Object doExecute(Object params) {
        // 将特定类型的 Object 对象指定为 Object[]
        Object[] args = (Object[]) params;
        MyUserVo myUserVo = Convert.convert(MyUserVo.class, args[0]);
        log.info("进入手动重试方法,参数信息是{}", myUserVo);
        return true;
    }
}

执行任务服务

java

package local.ateng.java.snailjob.service;

import com.aizuda.snailjob.client.core.retryer.RetryTaskTemplateBuilder;
import com.aizuda.snailjob.client.core.retryer.SnailJobTemplate;
import local.ateng.java.snailjob.task.RetryExecutorTask;
import local.ateng.java.snailjob.vo.MyUserVo;
import org.springframework.stereotype.Component;

import java.time.LocalDateTime;

@Component
public class RetryExecutorService {

    public void myExecutorMethod(){
        MyUserVo userVo = new MyUserVo(10010L, "阿腾", 25, LocalDateTime.now(), LocalDateTime.now().plusDays(1));
        SnailJobTemplate snailJobTemplate = RetryTaskTemplateBuilder.newBuilder()
                // 手动指定场景名称
                .withScene(RetryExecutorTask.SCENE)
                // 指定要执行的任务
                .withExecutorMethod(RetryExecutorTask.class)
                // 指定参数
                .withParam(userVo)
                .build();
        // 执行模板
        snailJobTemplate.executeRetry();
    }

}

添加接口

java

@RestController
@RequestMapping("/retry")
@RequiredArgsConstructor(onConstructor = @__(@Autowired))
public class RetryController {
    private final RetryExecutorService retryExecutorService;

    @GetMapping("/retryExecutor")
    public String retryExecutor() {
        retryExecutorService.myExecutorMethod();
        return "ok";
    }

}

调用接口

调用接口执行任务，然后就会自动创建一个 重试场景，最后将该任务调度节点执行。

curl http://127.0.0.1:19002/retry/retryExecutor

OpenAPI

参考：官方文档

创建任务

编辑代码

java

    /**
     * 新增集群模式的任务
     *
     * @param jobName 任务名称
     * @return 任务id
     */
    @GetMapping("/addClusterJob")
    public Long addClusterJob(String jobName) {
        return SnailJobOpenApi.addClusterJob()
                .setRouteKey(AllocationAlgorithmEnum.RANDOM)
                .setJobName(jobName)
                .setExecutorInfo("testJobExecutor")
                .setExecutorTimeout(30)
                .setDescription("add")
                .setBlockStrategy(BlockStrategyEnum.DISCARD)
                .setMaxRetryTimes(1)
                .setTriggerType(TriggerTypeEnum.SCHEDULED_TIME)
                .setTriggerInterval(String.valueOf(60))
                .addArgsStr("测试数据", 123)
                .addArgsStr("addArg", "args")
                .setRetryInterval(3)
                .execute();
    }

调用接口

C:\Users\admin>curl http://127.0.0.1:19002/openapi/addClusterJob?jobName=openapiJob
2

查询任务

编辑代码

java

    /**
     * 查看任务详情
     *
     * @param jobId
     * @return 任务详情
     */
    @GetMapping("/queryJob")
    public JobResponseVO queryJob(Long jobId){
        return SnailJobOpenApi.getJobDetail(jobId).execute();
    }

调用接口

C:\Users\admin>curl http://127.0.0.1:19002/openapi/queryJob?jobId=2
{"id":2,"groupName":"dev","jobName":"openapiJob","argsStr":"{\"测试数据\":123,\"addArg\":\"args\"}","extAttrs":"","nextTriggerAt":"2025-02-12T15:11:57","jobStatus":1,"routeKey":2,"executorType":1,"executorInfo":"testJobExecutor","triggerType":2,"triggerInterval":"60","blockStrategy":1,"executorTimeout":30,"maxRetryTimes":1,"retryInterval":3,"taskType":1,"parallelNum":1,"description":"add","createDt":"2025-02-12T15:08:57","updateDt":"2025-02-12T15:10:51"}

Snail Job ​

基础配置 ​

添加依赖 ​

服务端创建命名空间和组 ​

新增命名空间 ​

新增组 ​

编辑配置 ​

启动Snail Job ​

定时任务 ​

创建执行器 ​

创建定时任务 ​

重试任务 ​

创建重试服务 ​

创建重试接口 ​

添加重试场景 ​

手动创建重试任务 ​

创建VO ​

创建ExecutorMethodRegister ​

执行任务服务 ​

添加接口 ​

调用接口 ​

OpenAPI ​

创建任务 ​

查询任务 ​

Snail Job

基础配置

添加依赖

服务端创建命名空间和组

新增命名空间

新增组

编辑配置

启动Snail Job

定时任务

创建执行器

创建定时任务

重试任务

创建重试服务

创建重试接口

添加重试场景

手动创建重试任务

创建VO

创建ExecutorMethodRegister

执行任务服务

添加接口

调用接口

OpenAPI

创建任务

查询任务
