Vben Admin 5 企业级管理系统框架
Vben Admin 5 是一套基于 Vue3、Vite、TypeScript 的现代化中后台管理框架，内置完善的权限体系、多主题布局、国际化、多标签页、数据展示组件等常用功能。项目采用模块化与配置化设计，支持快速二次开发，适合中后台系统、运营平台、管理控制台等场景。开发体验流畅、代码规范、生态完善。
当前环境
node: v22
pnpm: 10.12.4启动项目
获取源码
git clone https://github.com/vbenjs/vue-vben-admin.git
cd vue-vben-admin切换到指定版本
切换到 tag v5.6.0 并创建分支
git checkout -b v5.6.0_branch v5.6.0安装依赖
如果已全局安装 pnpm：
pnpm install💡 如果没有安装 pnpm，可以执行：
corepack enable corepack prepare pnpm@10.12.4 --activate

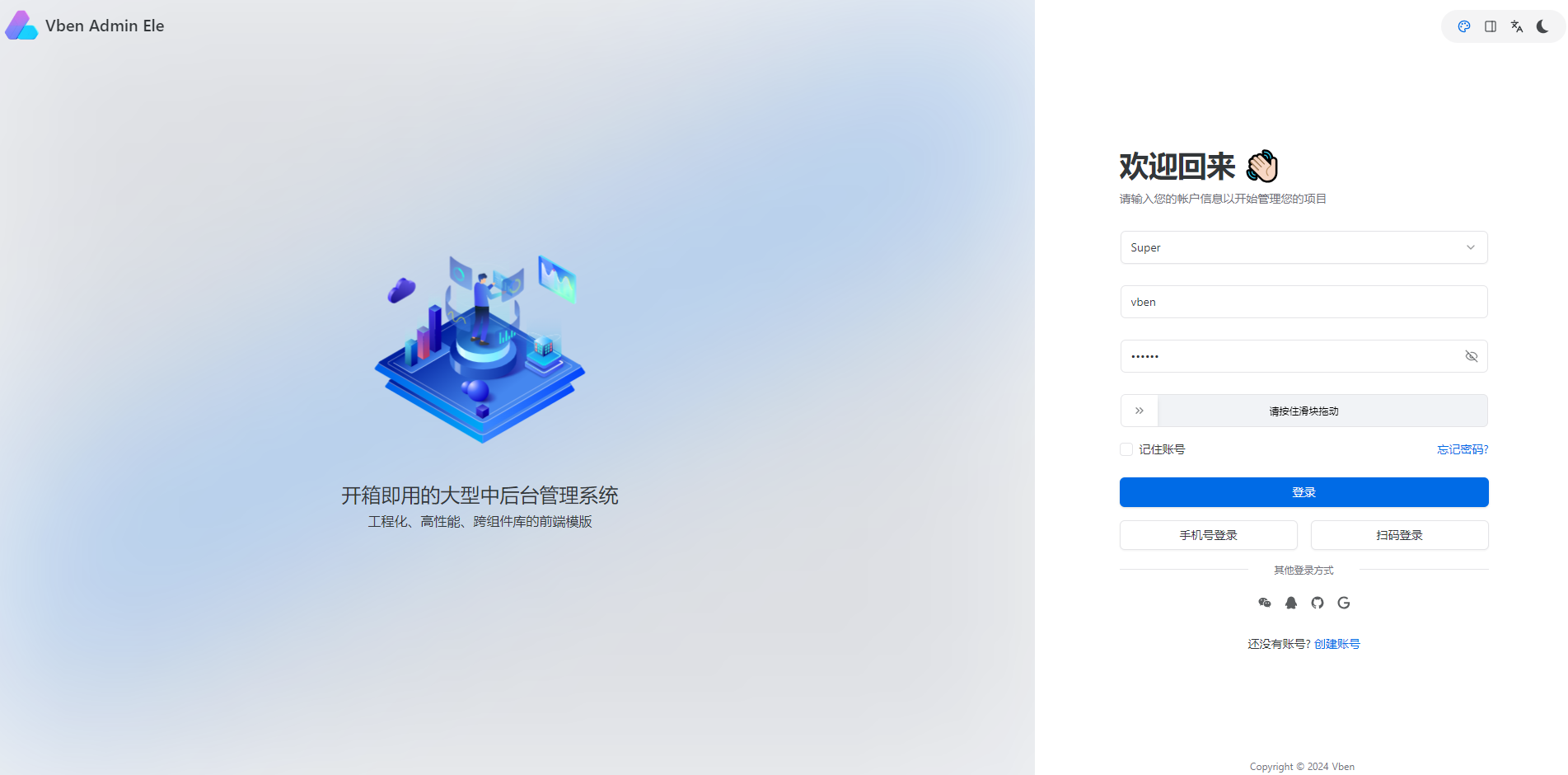

启动项目
pnpm run dev:ele应用精简
参考文档：链接
应用精简
我这里使用的 UI 组件是 Element Plus，我先拷贝一份 apps/web-ele 应用为 apps/ateng-web
rm -rf apps/web-ele/node_modules
cp -r apps/web-ele apps/ateng-web
rm -rf apps/web-antd apps/web-ele apps/web-naive apps/web-tdesign修改应用名称
apps/ateng-web/package.json
"name": "@apps/ateng-web"其他精简
如果你不需要演示代码，你可以直接删除 playground 文件夹。
rm -rf playground如果你不需要文档，你可以直接删除docs文件夹。
rm -rf docs如果你想更进一步精简，你可以删除参考以下文件或者文件夹的作用，判断自己是否需要，不需要删除即可：
rm -rf .changeset .github .vscode scripts/deploy命令调整
在精简后，你可能需要根据你的项目调整命令，在根目录下的package.json文件中，你可以调整scripts字段，移除你不需要的命令。
json
{
"scripts": {
"build:web": "pnpm run build --filter=@apps/ateng-web",
"dev:web": "pnpm -F @apps/ateng-web run dev",
}
}清理依赖
pnpm clean安装依赖
pnpm install启动项目
pnpm run dev:web
添加页面
参考文档：链接
添加页面
src/views/system/user/index.vue
vue
<script lang="ts" setup>
import { Page } from '@vben/common-ui';
</script>
<template>
<Page title="用户管理" description="Hello World 示例">
Hello, Vben Admin with Element Plus! 👋
</Page>
</template>添加路由
src/router/routes/modules/system.ts
ts
import type { RouteRecordRaw } from 'vue-router';
const routes: RouteRecordRaw[] = [
{
meta: {
icon: 'ic:baseline-view-in-ar',
keepAlive: true,
order: 1000,
title: '系统管理',
},
name: 'System',
path: '/system',
children: [
{
meta: {
title: '用户管理',
},
name: 'user',
path: '/system/user',
component: () => import('#/views/system/user/index.vue'),
},
],
},
];
export default routes;修改配置
修改 ESLint 配置
编辑 eslint.config.mjs
js
// @ts-check
import { defineConfig } from '@vben/eslint-config';
export default defineConfig([
{
rules: {
/**
* =========================================================
* JavaScript 通用规则
* =========================================================
*/
'no-console': 'off', // 开发日志允许
'no-debugger': 'warn', // 调试代码提醒即可
complexity: 'off', // 函数复杂度限制关闭
'max-lines': 'off', // 文件最大行数关闭
'max-params': 'off', // 函数最大参数关闭
'max-depth': 'off', // 嵌套深度关闭
/**
* =========================================================
* TypeScript 规则
* =========================================================
*/
'@typescript-eslint/no-explicit-any': 'off', // 允许 any
'@typescript-eslint/explicit-function-return-type': 'off', // 不强制函数返回类型
'@typescript-eslint/consistent-type-imports': 'off', // type import 不强制
'@typescript-eslint/ban-ts-comment': 'off', // 允许临时 ts-ignore
'@typescript-eslint/ban-types': 'off', // 允许使用一些 TS 类型
/**
* =========================================================
* Vue3 规则
* =========================================================
*/
'vue/multi-word-component-names': 'off', // 单文件组件名允许单词
'vue/require-default-prop': 'off', // props 默认值不强制
'vue/no-v-html': 'off', // v-html 允许
'vue/no-mutating-props': 'warn', // 保留警告，防止常见 bug
/**
* =========================================================
* perfectionist / import 排序
* =========================================================
*/
'perfectionist/sort-imports': 'off', // import 排序关闭
'perfectionist/sort-objects': 'off', // object key 排序关闭
'perfectionist/sort-union-types': 'off', // union 类型排序关闭
'import/order': 'off', // import 排序关闭
/**
* =========================================================
* 代码风格交给 Prettier 管理
* =========================================================
*/
semi: 'off',
quotes: 'off',
'max-len': 'off',
},
},
]);组件适配（Element Plus）
适配步骤
修改文件：/src/adapter/component/index.ts
1️⃣ 异步引入组件 2️⃣ 在 ComponentType 中声明类型 3️⃣ 在 components 映射中注册
1. 引入 ElementPlus 组件
在文件顶部，和 ElInput、ElSelectV2 一样写。
ts
const ElSlider = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/slider/index'),
import('element-plus/es/components/slider/style/css'),
]).then(([res]) => res.ElSlider),
);这里做了两件事：
- 按需加载组件
- 按需加载样式
这是 Vben 推荐写法，防止 UI 库打包过大。
2. 在 ComponentType 中声明
找到这里：
ts
export type ComponentType =添加一个类型：
ts
| 'Slider'变成：
ts
export type ComponentType =
| 'ApiSelect'
| 'ApiTreeSelect'
| 'Checkbox'
| 'CheckboxGroup'
| 'DatePicker'
| 'Divider'
| 'IconPicker'
| 'Input'
| 'InputNumber'
| 'RadioGroup'
| 'Select'
| 'Slider' // 新增
| 'Space'
| 'Switch'
| 'TimePicker'
| 'TreeSelect'
| 'Upload'
| BaseFormComponentType;否则 vben-form / vben-table 会报类型错误。
3. 在 components 中注册
找到：
ts
const components: Partial<Record<ComponentType, Component>> = {加入：
ts
Slider: ElSlider,完整示例：
ts
const components: Partial<Record<ComponentType, Component>> = {
Input: withDefaultPlaceholder(ElInput, 'input'),
InputNumber: withDefaultPlaceholder(ElInputNumber, 'input'),
Slider: ElSlider,
Select: (props, { attrs, slots }) => {
return h(ElSelectV2, { ...props, attrs }, slots);
},
}4. 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'progress',
label: '进度',
component: 'Slider',
componentProps: {
min: 0,
max: 100,
},
}等价于：
vue
<el-slider v-model="progress" :min="0" :max="100"/>组件适配
Slider 滑块
- 引入 ElementPlus 组件
ts
const ElSlider = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/slider/index'),
import('element-plus/es/components/slider/style/css'),
]).then(([res]) => res.ElSlider),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Slider' // 新增
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Slider: ElSlider,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'progress',
label: '进度',
component: 'Slider',
componentProps: {
min: 0,
max: 100,
},
}等价于：
vue
<el-slider v-model="progress" :min="0" :max="100"/>ColorPicker 主题颜色
- 引入 ElementPlus 组件
ts
const ElColorPicker = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/color-picker/index'),
import('element-plus/es/components/color-picker/style/css'),
]).then(([res]) => res.ElColorPicker),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'ColorPicker' // 新增
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
ColorPicker: ElColorPicker,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'color',
label: '主题颜色',
component: 'ColorPicker',
componentProps: {
showAlpha: true, // 支持透明度
predefine: [ // 预设颜色
'#ff4500',
'#ff8c00',
'#ffd700',
'#90ee90',
'#00ced1',
'#1e90ff',
'#c71585'
]
}
}等价于：
vue
<el-color-picker v-model="color" :show-alpha="true" />该组件来自 Element Plus，常用于：
- 🎨 主题颜色设置
- 🧩 组件样式配置
- 🖌 页面设计器 / 低代码平台
- 🖼 图表颜色配置
Rate 评分
- 引入 ElementPlus 组件
ts
const ElRate = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/rate/index'),
import('element-plus/es/components/rate/style/css'),
]).then(([res]) => res.ElRate),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Rate' // 新增
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Rate: ElRate,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'score',
label: '评分',
component: 'Rate',
componentProps: {
max: 5,
allowHalf: true,
showScore: true,
},
}等价于：
vue
<el-rate v-model="score" :max="5" :allow-half="true" show-score />该组件来自 Element Plus，常用于：
- ⭐ 商品评分
- 📝 用户评价
- 📊 满意度调查
- 🧾 服务质量评分
Cascader 级联
- 引入 ElementPlus 组件
ts
const ElCascader = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/cascader/index'),
import('element-plus/es/components/cascader/style/css'),
]).then(([res]) => res.ElCascader),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Cascader' // 新增
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Cascader: ElCascader,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'region',
label: '地区',
component: 'Cascader',
componentProps: {
options: [
{
value: 'zhejiang',
label: '浙江',
children: [
{ value: 'hangzhou', label: '杭州' },
{ value: 'ningbo', label: '宁波' },
],
},
{
value: 'jiangsu',
label: '江苏',
children: [
{ value: 'nanjing', label: '南京' },
{ value: 'suzhou', label: '苏州' },
],
},
],
props: {
checkStrictly: true, // 可选任意层级
},
},
}等价于：
vue
<el-cascader v-model="region" :options="options" />该组件来自 Element Plus，常用于：
- 🌏 省市区选择
- 🏢 组织架构选择
- 📁 多级分类选择
- 🗂 树形数据层级选择
Transfer 穿梭框
- 引入 ElementPlus 组件
ts
const ElTransfer = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/transfer/index'),
import('element-plus/es/components/transfer/style/css'),
]).then(([res]) => res.ElTransfer),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Transfer' // 新增
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Transfer: ElTransfer,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'roles',
label: '角色分配',
component: 'Transfer',
componentProps: {
data: [
{ key: 1, label: '管理员' },
{ key: 2, label: '编辑' },
{ key: 3, label: '访客' },
],
filterable: true,
titles: ['可选角色', '已选角色'],
},
}等价于：
vue
<el-transfer
v-model="roles"
:data="data"
filterable
:titles="['可选角色','已选角色']"
/>该组件来自 Element Plus，常用于：
- 👥 用户角色分配
- 🔐 权限分配
- 📦 资源选择
- 🧩 多项数据批量选择
Autocomplete 自动完成
- 引入 ElementPlus 组件
ts
const ElAutocomplete = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/autocomplete/index'),
import('element-plus/es/components/autocomplete/style/css'),
]).then(([res]) => res.ElAutocomplete),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Autocomplete' // 新增
| 'Transfer'
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Autocomplete: ElAutocomplete,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'keyword',
label: '关键词',
component: 'Autocomplete',
componentProps: {
fetchSuggestions(queryString, cb) {
const results = [
{ value: 'Vue' },
{ value: 'React' },
{ value: 'Angular' },
].filter(item =>
item.value.toLowerCase().includes(queryString.toLowerCase())
);
cb(results);
},
placeholder: '请输入关键词',
},
}等价于：
vue
<el-autocomplete
v-model="keyword"
:fetch-suggestions="fetchSuggestions"
placeholder="请输入关键词"
/>该组件来自 Element Plus，常用于：
- 🔎 搜索建议
- 👤 用户选择
- 🏷 标签推荐
- 📦 商品名称快速输入
Mention @用户
- 引入 ElementPlus 组件
ts
const ElMention = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/mention/index'),
import('element-plus/es/components/mention/style/css'),
]).then(([res]) => res.ElMention),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Mention' // 新增
| 'Autocomplete'
| 'Transfer'
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Mention: ElMention,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'content',
label: '评论内容',
component: 'Mention',
componentProps: {
options: [
{ label: '张三', value: 'zhangsan' },
{ label: '李四', value: 'lisi' },
{ label: '王五', value: 'wangwu' },
],
placeholder: '输入 @ 选择用户',
},
}等价于：
vue
<el-mention
v-model="content"
:options="options"
placeholder="输入 @ 选择用户"
/>该组件来自 Element Plus，常用于：
- 👥 评论 @用户
- 💬 聊天消息 @成员
- 📢 任务指派
- 📝 协作编辑提醒成员
Avatar 头像
- 引入 ElementPlus 组件
ts
const ElAvatar = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/avatar/index'),
import('element-plus/es/components/avatar/style/css'),
]).then(([res]) => res.ElAvatar),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Avatar' // 新增
| 'Mention'
| 'Autocomplete'
| 'Transfer'
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Avatar: ElAvatar,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'avatar',
label: '用户头像',
component: 'Avatar',
componentProps: {
size: 60,
src: 'https://example.com/avatar.png',
shape: 'circle',
},
}等价于：
vue
<el-avatar
:size="60"
src="https://example.com/avatar.png"
shape="circle"
/>该组件来自 Element Plus，常用于：
- 👤 用户头像展示
- 🧑💻 系统用户列表
- 💬 聊天头像
- 🧾 评论用户头像
Progress 进度条
- 引入 ElementPlus 组件
ts
const ElProgress = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/progress/index'),
import('element-plus/es/components/progress/style/css'),
]).then(([res]) => res.ElProgress),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Progress' // 新增
| 'Avatar'
| 'Mention'
| 'Autocomplete'
| 'Transfer'
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Progress: ElProgress,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'taskProgress',
label: '任务进度',
component: 'Progress',
componentProps: {
percentage: 75,
status: 'success', // success / exception / warning
strokeWidth: 10,
},
}等价于：
vue
<el-progress
:percentage="75"
status="success"
:stroke-width="10"
/>该组件来自 Element Plus，常用于：
- 📦 文件上传进度
- ⏳ 任务执行进度
- 📝 数据导入/导出进度
- ⚙️ 系统处理状态可视化
Tag 标签
- 引入 ElementPlus 组件
ts
const ElTag = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/tag/index'),
import('element-plus/es/components/tag/style/css'),
]).then(([res]) => res.ElTag),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Tag' // 新增
| 'Progress'
| 'Avatar'
| 'Mention'
| 'Autocomplete'
| 'Transfer'
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Tag: ElTag,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'status',
label: '状态',
component: 'Tag',
componentProps: {
type: 'success', // success / warning / info / danger / primary
effect: 'dark', // light / dark / plain
},
}等价于：
vue
<el-tag type="success" effect="dark">启用</el-tag>该组件来自 Element Plus，常用于：
- 🔖 状态标签（启用/禁用）
- 📌 分类或标记
- ⚠️ 告警或提示
- 🏷 标签展示、列表标识
Badge 徽标
- 引入 ElementPlus 组件
ts
const ElBadge = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/badge/index'),
import('element-plus/es/components/badge/style/css'),
]).then(([res]) => res.ElBadge),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Badge' // 新增
| 'Tag'
| 'Progress'
| 'Avatar'
| 'Mention'
| 'Autocomplete'
| 'Transfer'
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Badge: ElBadge,
}- 在 Vben Form 中使用
适配后可以直接在 Vben Form 使用：
ts
{
fieldName: 'notifications',
label: '消息数量',
component: 'Badge',
componentProps: {
value: 12, // 徽标数值
max: 99, // 超过显示 99+
type: 'danger', // success / warning / info / danger / primary
isDot: false, // 是否仅显示小红点
},
}等价于：
vue
<el-badge :value="12" max="99" type="danger">
<template #default>
<el-button>消息</el-button>
</template>
</el-badge>该组件来自 Element Plus，常用于：
- 🔔 消息数量提示
- 🆕 未读通知
- 📌 任务提醒徽标
- ⚠️ 状态或警告标识
Result 结果页
- 引入 ElementPlus 组件
ts
const ElResult = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/result/index'),
import('element-plus/es/components/result/style/css'),
]).then(([res]) => res.ElResult),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Result' // 新增
| 'Badge'
| 'Tag'
| 'Progress'
| 'Avatar'
| 'Mention'
| 'Autocomplete'
| 'Transfer'
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Result: ElResult,
}- 在 Vben Form 或页面中使用
适配后可以直接使用 Result 组件 显示操作结果：
ts
{
fieldName: 'operationResult',
label: '操作结果',
component: 'Result',
componentProps: {
status: 'success', // success / error / warning / info
title: '提交成功',
subTitle: '您的表单已成功提交。',
},
}等价于：
vue
<el-result
status="success"
title="提交成功"
sub-title="您的表单已成功提交。"
/>该组件来自 Element Plus，常用于：
- ✅ 表单提交成功提示
- ❌ 操作失败提示
- ⚠️ 警告或异常状态
- ℹ️ 信息提示页面
Empty 空状态
- 引入 ElementPlus 组件
ts
const ElEmpty = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/empty/index'),
import('element-plus/es/components/empty/style/css'),
]).then(([res]) => res.ElEmpty),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Empty' // 新增
| 'Result'
| 'Badge'
| 'Tag'
| 'Progress'
| 'Avatar'
| 'Mention'
| 'Autocomplete'
| 'Transfer'
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Empty: ElEmpty,
}- 在 Vben Form 或页面中使用
适配后可以直接使用 Empty 组件 显示无数据状态：
ts
{
fieldName: 'noData',
label: '空状态展示',
component: 'Empty',
componentProps: {
description: '暂无数据', // 自定义提示文字
},
}等价于：
vue
<el-empty description="暂无数据" />该组件来自 Element Plus，常用于：
- 📭 无数据列表提示
- 🗂 空表格占位
- 📦 资源或任务为空提示
- 🖼 页面或模块空状态展示
Skeleton 骨架屏
- 引入 ElementPlus 组件
ts
const ElSkeleton = defineAsyncComponent(() =>
Promise.all([
import('element-plus/es/components/skeleton/index'),
import('element-plus/es/components/skeleton/style/css'),
]).then(([res]) => res.ElSkeleton),
);- 在 ComponentType 中声明
ts
export type ComponentType =
| 'Skeleton' // 新增
| 'Empty'
| 'Result'
| 'Badge'
| 'Tag'
| 'Progress'
| 'Avatar'
| 'Mention'
| 'Autocomplete'
| 'Transfer'
| 'Cascader'
| 'Rate'
| 'ColorPicker'
| 'Slider'
| 'Upload'
| BaseFormComponentType;- 在 components 中注册
ts
const components: Partial<Record<ComponentType, Component>> = {
Skeleton: ElSkeleton,
}- 在 Vben Form 或页面中使用
适配后可以直接使用 Skeleton 组件 显示加载占位：
ts
{
fieldName: 'loadingPlaceholder',
label: '加载占位',
component: 'Skeleton',
componentProps: {
rows: 3, // 显示 3 行骨架
animated: true, // 动画效果
loading: true, // 是否显示骨架
},
}等价于：
vue
<el-skeleton :rows="3" animated loading />该组件来自 Element Plus，常用于：
- ⏳ 数据加载占位
- 📄 列表、表格加载状态
- 🖼 图片或卡片加载占位
- 🛠 异步内容加载提示
组件使用
Page 常规页面组件
提供一个常规页面布局的组件，包括头部、内容区域、底部三个部分。
参考文档：链接
基础标题 + 描述 + 内容
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
</script>
<template>
<Page title="用户管理" description="查看并操作用户信息">
<div>
这是主要内容。
</div>
</Page>
</template>头部右侧操作按钮（extra slot）
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
import { ElButton } from 'element-plus';
function handleAdd() {
console.log('点击新增');
}
</script>
<template>
<Page title="用户管理" description="带头部按钮">
<template #extra>
<ElButton type="primary" @click="handleAdd">新增用户</ElButton>
</template>
主体内容...
</Page>
</template>自定义标题 / 描述 插槽
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
</script>
<template>
<Page>
<template #title>
<span class="bg-indigo-600 text-white">📌 自定义标题</span>
</template>
<template #description>
这里使用插槽定义了描述内容
</template>
页面内容
</Page>
</template>底部 Footer 区域
设置了底部区域的插槽，主题内容区域的高度必须要有，不然部分内容会被覆盖
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
import { ElButton } from 'element-plus';
</script>
<template>
<Page title="用户编辑" description="底部操作按钮示例">
<div class="h-[400px] bg-blue-50">主体内容...</div>
<template #footer>
<div>
<ElButton>取消</ElButton>
<ElButton type="primary">保存</ElButton>
</div>
</template>
</Page>
</template>不显示头部 — 纯内容
如果没有设置 title、description 或 extra，头部就不会渲染：
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
</script>
<template>
<Page>
纯内容页面，不渲染头部
</Page>
</template>Header 区域样式（headerClass）
用于给页面头部增加视觉强调，例如模块分隔、主题色块、信息提示等。
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
</script>
<template>
<Page
title="自定义 Header"
description="用于强调标题和描述区域"
header-class="bg-indigo-600 text-white px-6 py-4 shadow-lg rounded"
>
内容区域...
</Page>
</template>内容区域样式（contentClass）
用于给内容区加背景、padding、卡片效果等，让主体内容更聚焦。
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
</script>
<template>
<Page
title="内容样式示例"
content-class="p-8 bg-yellow-100 border-2 border-yellow-500 rounded-lg shadow-inner"
>
这是带背景 + 内边距 + 内阴影的内容区域
</Page>
</template>Footer 区域样式（footerClass）
常用于表单提交区域、审批确认按钮区、工具栏等底部操作区域。
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
import { ElButton } from 'element-plus';
</script>
<template>
<Page
title="底部操作示例"
description="底部区域用于承载操作按钮"
footer-class="bg-green-600 text-white px-6 py-3 flex justify-between items-center rounded shadow-md"
>
<div class="h-[400px] bg-blue-50">主体内容...</div>
<template #footer>
<span class="font-semibold">操作区：</span>
<div class="space-x-2">
<ElButton>取消</ElButton>
<ElButton type="primary">确认</ElButton>
</div>
</template>
</Page>
</template>自动撑满内容高度（autoContentHeight）
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
</script>
<template>
<div class="h-[400px] border border-gray-300">
<Page title="开启 autoContentHeight" auto-content-height>
<div class="h-full bg-green-200">内容自动撑满高度</div>
</Page>
</div>
</template>双列布局（左右分栏）
vue
<script setup lang="ts">
import { Page } from '@vben/common-ui';
</script>
<template>
<Page title="双列布局示例" description="左侧为列表，右侧为详情">
<div class="flex w-full gap-4">
<!-- 左侧 -->
<div
class="min-h-[300px] w-1/3 rounded border border-gray-300 bg-gray-50 p-3"
>
<div class="mb-2 font-semibold">用户列表</div>
<ul class="space-y-2">
<li class="cursor-pointer rounded px-2 py-1 hover:bg-gray-200">
用户 A
</li>
<li class="cursor-pointer rounded px-2 py-1 hover:bg-gray-200">
用户 B
</li>
<li class="cursor-pointer rounded px-2 py-1 hover:bg-gray-200">
用户 C
</li>
</ul>
</div>
<!-- 右侧 -->
<div class="min-h-[300px] flex-1 rounded border border-gray-300 p-4">
<div class="mb-2 font-semibold">详情区域</div>
<p>在此显示用户的详细信息。</p>
</div>
</div>
</Page>
</template>Form 表单
参考文档：链接
基础用法
vue
<script lang="ts" setup>
import type { UploadUserFile } from 'element-plus';
import { h, toRaw } from 'vue';
import { Page } from '@vben/common-ui';
import dayjs from 'dayjs';
import { ElButton, ElCard, ElMessage, ElTag } from 'element-plus';
import { useVbenForm, z } from '#/adapter/form';
/**
* 本地 Select 选项
*/
const selectOptions = [
{ label: '选项一', value: '1' },
{ label: '选项二', value: '2' },
];
/**
* 本地 Tree 数据
*/
const treeOptions = [
{
label: '根节点',
value: 'root',
children: [
{
label: '子节点 1',
value: 'child-1',
},
{
label: '子节点 2',
value: 'child-2',
},
],
},
];
const [BaseForm, baseFormApi] = useVbenForm({
commonConfig: {
colon: true,
componentProps: {
class: 'w-full',
},
},
layout: 'horizontal',
handleSubmit: onSubmit,
schema: [
{
component: 'Input',
fieldName: 'username',
label: '用户名',
rules: 'required',
componentProps: {
placeholder: '请输入用户名',
},
},
{
component: 'Input',
fieldName: 'password',
label: '密码',
componentProps: {
type: 'password',
},
},
{
component: 'Select',
fieldName: 'select',
label: '下拉选择',
componentProps: {
options: selectOptions,
clearable: true,
filterable: true,
placeholder: '请选择',
},
},
{
component: 'TreeSelect',
fieldName: 'treeSelect',
label: '树选择',
componentProps: {
data: treeOptions,
clearable: true,
filterable: true,
},
},
{
component: 'CheckboxGroup',
fieldName: 'checkboxGroup',
label: '多选组',
componentProps: {
options: selectOptions,
},
},
{
component: 'Checkbox',
fieldName: 'agree',
label: '',
renderComponentContent: () => ({
default: () => ['我已阅读并同意'],
}),
rules: z.boolean().refine((v) => v, {
message: '请先同意协议',
}),
},
{
component: 'DatePicker',
fieldName: 'date',
label: '日期选择',
componentProps: {
placeholder: '请选择日期',
},
},
{
component: 'DatePicker',
fieldName: 'range',
label: '日期范围',
componentProps: {
type: 'daterange',
rangeSeparator: '-',
startPlaceholder: '开始日期',
endPlaceholder: '结束日期',
},
},
{
component: 'Upload',
fieldName: 'files',
label: '文件上传',
componentProps: {
action: '#', // 上传接口（此示例没有真正上传）
listType: 'picture-card', // 图片卡片风格
autoUpload: false, // 不自动上传
limit: 1, // 文件数量限制
onChange: (file: UploadFile) => {
console.log('选择的文件：', file);
},
onRemove: (file: UploadFile) => {
console.log('删除的文件：', file);
},
},
rules: 'selectRequired',
},
{
component: 'Switch',
fieldName: 'enabled',
label: '启用状态',
},
{
component: 'InputNumber',
fieldName: 'amount',
label: '金额',
suffix: () => '¥',
},
{
component: 'Divider',
fieldName: 'divider',
renderComponentContent: () => ({
default: () => h(ElTag, { type: 'info' }, () => '基础示例结束'),
}),
},
],
wrapperClass: 'grid-cols-1 md:grid-cols-2 lg:grid-cols-3',
});
function onSubmit(values: Record<string, any>) {
const files = toRaw(values.files) as UploadUserFile[];
values.files = files.map((f) => f.url);
ElMessage.success({
message: `提交数据：${JSON.stringify(values, null, 2)}`,
duration: 3000,
});
}
function handleSetFormValue() {
baseFormApi.setValues({
username: 'admin',
password: '123456',
select: '1',
treeSelect: 'child-1',
checkboxGroup: ['1'],
agree: true,
date: dayjs(),
range: [dayjs().subtract(1, 'day'), dayjs()],
enabled: true,
amount: 100,
rate: 4,
remark: '这是一个本地示例',
});
}
</script>
<template>
<Page
title="基础表单"
description="VBen Admin5 + Element Plus 本地无依赖基础表单示例"
content-class="flex flex-col gap-4"
>
<ElCard>
<template #header>
<div class="flex items-center justify-between">
<span>基础示例</span>
<ElButton type="primary" @click="handleSetFormValue">
设置表单值
</ElButton>
</div>
</template>
<BaseForm />
</ElCard>
</Page>
</template>查询表单
表单校验
动态表单
自定义布局
自定义组件
表单操作 API
合并表单
滚动到错误字段
Vxe Table 表格（官网示例）
参考文档：链接
基础表格
这个示例展示静态数据列表，包含丰富字段、多行数据、点击单元格事件、分页关闭、边框/斑马纹/Loading 动态控制，并保留 Page 组件结构。
vue
<script lang="ts" setup>
import type { VxeGridListeners, VxeGridProps } from '#/adapter/vxe-table';
import { Page } from '@vben/common-ui';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
nickname: string;
role: string | undefined;
address: string;
email: string;
phone: string;
city: string | undefined;
company: string | undefined;
}
// 模拟 100 条数据
const tableData: RowType[] = Array.from({ length: 100 }).map((_, i) => ({
id: i + 1,
name: `User_${i + 1}`,
age: 20 + (i % 25),
nickname: `Nick_${i + 1}`,
role: ['Dev', 'QA', 'PM'][i % 3],
address: `Street_${i + 10}, District_${(i % 8) + 1}`,
email: `user_${i + 1}@example.com`,
phone: `090-${1000 + i}-${2000 + i}`,
city: ['Tokyo', 'Osaka', 'Nagoya'][i % 3],
company: ['Google', 'Microsoft', 'Nintendo'][i % 3],
}));
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ title: '序号', type: 'seq', width: 60 },
{ field: 'name', title: '姓名', minWidth: 120 },
{ field: 'age', title: '年龄', width: 60, sortable: true },
{ field: 'nickname', title: '昵称', minWidth: 120 },
{ field: 'role', title: '角色', minWidth: 100 },
{ field: 'city', title: '城市', minWidth: 100 },
{ field: 'company', title: '公司', minWidth: 130 },
{ field: 'email', title: '邮箱', minWidth: 200, showOverflow: true },
{ field: 'phone', title: '电话', minWidth: 150 },
{ field: 'address', title: '地址', minWidth: 220, showOverflow: true },
],
data: tableData,
pagerConfig: { enabled: false },
sortConfig: { multiple: true },
};
const gridEvents: VxeGridListeners<RowType> = {
cellClick: ({ row }) => {
ElMessage.info(`点击单元格：${row.name}`);
},
};
const [Grid, gridApi] = useVbenVxeGrid<RowType>({
gridOptions,
gridEvents,
});
const showBorder = gridApi.useStore((s) => s.gridOptions?.border);
const showStripe = gridApi.useStore((s) => s.gridOptions?.stripe);
function toggleBorder() {
gridApi.setGridOptions({ border: !showBorder.value });
}
function toggleStripe() {
gridApi.setGridOptions({ stripe: !showStripe.value });
}
function triggerLoading() {
gridApi.setLoading(true);
setTimeout(() => gridApi.setLoading(false), 1500);
}
</script>
<template>
<Page
title="基础表格示例"
description="展示静态数据列表，支持多列排序、样式切换、加载状态与单元格事件。"
>
<!-- Page 顶栏扩展区域 -->
<template #extra>
<ElButton type="primary">帮助文档</ElButton>
</template>
<Grid
table-title="用户信息列表"
table-title-help="支持排序、点击提示、样式控制"
>
<template #toolbar-tools>
<ElButton class="mr-8" type="primary" @click="toggleBorder">
{{ showBorder ? '隐藏' : '显示' }}边框
</ElButton>
<ElButton class="mr-8" type="primary" @click="triggerLoading">
显示Loading
</ElButton>
<ElButton type="primary" @click="toggleStripe">
{{ showStripe ? '隐藏' : '显示' }}斑马纹
</ElButton>
</template>
</Grid>
</Page>
</template>
<style scoped>
.mr-8 {
margin-right: 8px;
}
</style>远程加载
实现表格的远程分页加载、远程排序及刷新控制。
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ref } from 'vue';
import { Page } from '@vben/common-ui';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/* ------------------------------
* 数据模型定义
* ------------------------------ */
export interface RowType {
id: number;
name: string;
age: number;
role: string | undefined;
city: string | undefined;
company: string | undefined;
phone: string;
email: string;
address: string;
joinDate: string;
}
/* ------------------------------
* 远程分页请求参数类型
* ------------------------------ */
export interface RemoteQueryParams {
page: number;
pageSize: number;
sortBy?: string;
sortOrder?: string;
}
/* ------------------------------
* 远程分页返回类型
* ------------------------------ */
export interface RemoteQueryResult<T> {
total: number;
items: T[];
}
/* ------------------------------
* 构造模拟数据库
* ------------------------------ */
const mockDatabase: RowType[] = Array.from({ length: 200 }).map((_, idx) => ({
id: idx + 1,
name: `User-${idx + 1}`,
age: 18 + (idx % 40),
role: ['Admin', 'User', 'Guest'][idx % 3],
city: ['Tokyo', 'Osaka', 'Nagoya'][idx % 3],
company: ['Google', 'Amazon', 'Meta'][idx % 3],
phone: `1380000${(1000 + idx).toString().slice(-4)}`,
email: `user${idx + 1}@example.com`,
address: `Address-${idx + 1}, Some Street`,
joinDate: new Date(Date.now() - idx * 86_400_000).toISOString(),
}));
/* ------------------------------
* 模拟远程分页接口
* ------------------------------ */
async function fakeRemoteQuery(
params: RemoteQueryParams,
): Promise<RemoteQueryResult<RowType>> {
ElMessage.info(`fakeRemoteQuery 请求参数: ${JSON.stringify(params)}`);
const { page, pageSize } = params;
const start = (page - 1) * pageSize;
const end = start + pageSize;
return new Promise<RemoteQueryResult<RowType>>((resolve) => {
setTimeout(() => {
resolve({
total: mockDatabase.length,
items: mockDatabase.slice(start, end),
});
}, 500);
});
}
/* ------------------------------
* VxeGrid 配置
* ------------------------------ */
const gridOptions: VxeGridProps<RowType> = {
height: 'auto',
exportConfig: {},
columns: [
{ type: 'seq', title: '序号', width: 60 },
{ field: 'id', title: 'ID', width: 70, sortable: true },
{ field: 'name', title: 'Name', minWidth: 120, sortable: true },
{ field: 'age', title: 'Age', width: 80, sortable: true },
{ field: 'role', title: 'Role', minWidth: 100, sortable: true },
{ field: 'city', title: 'City', minWidth: 100, sortable: true },
{ field: 'company', title: 'Company', minWidth: 120, sortable: true },
{ field: 'phone', title: 'Phone', minWidth: 140 },
{ field: 'email', title: 'Email', minWidth: 180 },
{ field: 'address', title: 'Address', minWidth: 220 },
{
field: 'joinDate',
title: 'Join Date',
minWidth: 140,
formatter: ({ cellValue }) => cellValue?.slice(0, 10),
sortable: true,
},
],
toolbarConfig: {
custom: true,
export: true,
refresh: true,
zoom: true,
},
proxyConfig: {
sort: true,
ajax: {
query: async ({ page, sort }) => {
const result = await fakeRemoteQuery({
page: page.currentPage,
pageSize: page.pageSize,
sortBy: sort.field,
sortOrder: sort.order,
});
return {
total: result.total,
items: result.items,
};
},
},
},
sortConfig: {
remote: true,
multiple: false, // 单列排序
defaultSort: {
field: 'age',
order: 'asc',
},
},
};
/* ------------------------------
* Grid 实例
* ------------------------------ */
const [Grid, gridApi] = useVbenVxeGrid<RowType>({
gridOptions,
});
const loading = ref(false);
function refreshCurrentPage() {
loading.value = true;
gridApi.query().finally(() => (loading.value = false));
}
function refreshToFirstPage() {
loading.value = true;
gridApi.reload().finally(() => (loading.value = false));
}
</script>
<template>
<Page auto-content-height>
<Grid
table-title="远程加载示例"
table-title-help="单列排序，仅打印后端参数"
>
<template #toolbar-tools>
<ElButton
class="mr-8"
type="primary"
:loading="loading"
@click="refreshCurrentPage"
>
刷新当前页
</ElButton>
<ElButton type="primary" :loading="loading" @click="refreshToFirstPage">
刷新并回到第一页
</ElButton>
</template>
</Grid>
</Page>
</template>
<style scoped>
.mr-8 {
margin-right: 8px;
}
</style>多列排序
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ref } from 'vue';
import { Page } from '@vben/common-ui';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/* ------------------------------
* 数据模型定义
* ------------------------------ */
export interface RowType {
id: number;
name: string;
age: number;
role?: string;
city?: string;
company?: string;
phone: string;
email: string;
address: string;
joinDate: string;
}
/* ------------------------------
* 排序字段类型定义（更安全）
* ------------------------------ */
export interface SortItem {
field: keyof RowType;
order: 'asc' | 'desc';
}
/* ------------------------------
* 远程分页请求参数类型
* ------------------------------ */
export interface RemoteQueryParams {
page: number;
pageSize: number;
sorts?: SortItem[];
}
/* ------------------------------
* 远程分页返回类型
* ------------------------------ */
export interface RemoteQueryResult<T> {
total: number;
items: T[];
}
/* ------------------------------
* 构造模拟数据库
* ------------------------------ */
const mockDatabase: RowType[] = Array.from({ length: 200 }).map((_, idx) => ({
id: idx + 1,
name: `User-${idx + 1}`,
age: 18 + (idx % 40),
role: ['Admin', 'User', 'Guest'][idx % 3],
city: ['Tokyo', 'Osaka', 'Nagoya'][idx % 3],
company: ['Google', 'Amazon', 'Meta'][idx % 3],
phone: `1380000${(1000 + idx).toString().slice(-4)}`,
email: `user${idx + 1}@example.com`,
address: `Address-${idx + 1}, Some Street`,
joinDate: new Date(Date.now() - idx * 86_400_000).toISOString(),
}));
/* ------------------------------
* 模拟远程接口
* ------------------------------ */
async function fakeRemoteQuery(
params: RemoteQueryParams,
): Promise<RemoteQueryResult<RowType>> {
ElMessage.info(`fakeRemoteQuery 参数: ${JSON.stringify(params)}`);
const { page, pageSize } = params;
const start = (page - 1) * pageSize;
const end = start + pageSize;
return new Promise<RemoteQueryResult<RowType>>((resolve) => {
setTimeout(() => {
resolve({
total: mockDatabase.length,
items: mockDatabase.slice(start, end),
});
}, 500);
});
}
/* ------------------------------
* VxeGrid 配置
* ------------------------------ */
const gridOptions: VxeGridProps<RowType> = {
height: 'auto',
columns: [
{ type: 'seq', title: '序号', width: 60 },
{ field: 'id', title: 'ID', width: 70, sortable: true },
{ field: 'name', title: 'Name', minWidth: 120, sortable: true },
{ field: 'age', title: 'Age', width: 80, sortable: true },
{ field: 'role', title: 'Role', minWidth: 100, sortable: true },
{ field: 'city', title: 'City', minWidth: 100, sortable: true },
{ field: 'company', title: 'Company', minWidth: 120, sortable: true },
{ field: 'phone', title: 'Phone', minWidth: 140 },
{ field: 'email', title: 'Email', minWidth: 180 },
{ field: 'address', title: 'Address', minWidth: 220 },
{
field: 'joinDate',
title: 'Join Date',
minWidth: 140,
sortable: true,
formatter: ({ cellValue }) => cellValue.slice(0, 10),
},
],
toolbarConfig: {
custom: true,
export: true,
refresh: true,
zoom: true,
},
proxyConfig: {
sort: true,
ajax: {
query: async ({ page, sorts }) => {
const sortParams: SortItem[] = (sorts ?? [])
.filter((s) => s.order)
.map((s) => ({
field: s.field as keyof RowType,
order: s.order as 'asc' | 'desc',
}));
const result = await fakeRemoteQuery({
page: page.currentPage,
pageSize: page.pageSize,
sorts: sortParams,
});
return {
total: result.total,
items: result.items,
};
},
},
},
sortConfig: {
remote: true,
multiple: true,
trigger: 'default',
},
};
/* ------------------------------
* Grid实例 & 刷新控制
* ------------------------------ */
const [Grid, gridApi] = useVbenVxeGrid<RowType>({ gridOptions });
const loading = ref(false);
const refreshCurrentPage = () => {
loading.value = true;
gridApi.query().finally(() => (loading.value = false));
};
const refreshToFirstPage = () => {
loading.value = true;
gridApi.reload().finally(() => (loading.value = false));
};
</script>
<template>
<Page auto-content-height>
<Grid table-title="远程加载示例" table-title-help="支持多列远程排序">
<template #toolbar-tools>
<ElButton
class="mr-8"
type="primary"
:loading="loading"
@click="refreshCurrentPage"
>
刷新当前页
</ElButton>
<ElButton type="primary" :loading="loading" @click="refreshToFirstPage">
刷新并回到第一页
</ElButton>
</template>
</Grid>
</Page>
</template>
<style scoped>
.mr-8 {
margin-right: 8px;
}
</style>树形表格
创建一个可展开/折叠的树形表格，支持父子层级树结构展示，并提供“展开全部 / 折叠全部”操作
vue
<script lang="ts" setup>
import type { VxeGridListeners, VxeGridProps } from '#/adapter/vxe-table';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/* ------------------------------
* 数据模型定义
* ------------------------------ */
interface RowType {
id: number;
parentId: null | number;
name: string;
type: string;
size: number;
date: string;
}
/* ------------------------------
* 构造模拟树数据
* ------------------------------ */
const tableData: RowType[] = [
{
id: 1,
parentId: 0,
name: 'src',
type: 'folder',
size: 0,
date: '2024-01-10',
},
{
id: 2,
parentId: 1,
name: 'api',
type: 'folder',
size: 0,
date: '2024-01-10',
},
{
id: 3,
parentId: 2,
name: 'index.ts',
type: 'file',
size: 22,
date: '2024-01-08',
},
{
id: 4,
parentId: 1,
name: 'components',
type: 'folder',
size: 0,
date: '2024-01-09',
},
{
id: 5,
parentId: 4,
name: 'Table.vue',
type: 'file',
size: 45,
date: '2024-01-07',
},
{
id: 6,
parentId: 0,
name: 'package.json',
type: 'file',
size: 3,
date: '2024-01-05',
},
];
/* ------------------------------
* Grid 配置
* ------------------------------ */
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ type: 'seq', width: 60, title: '序号' },
{ field: 'name', title: 'Name', minWidth: 250, treeNode: true },
{ field: 'type', title: 'Type', minWidth: 120 },
{ field: 'size', title: 'Size (KB)', width: 100 },
{ field: 'date', title: 'Updated', width: 120 },
],
data: tableData,
pagerConfig: { enabled: false },
treeConfig: {
transform: true,
rowField: 'id',
parentField: 'parentId',
},
};
/* ------------------------------
* Grid 事件
* ------------------------------ */
const gridEvents: VxeGridListeners<RowType> = {
cellClick: ({ row }) => {
ElMessage.info(`点击：${row.name} (type: ${row.type})`);
},
};
/* ------------------------------
* 实例与方法
* ------------------------------ */
const [Grid, gridApi] = useVbenVxeGrid({
gridOptions,
gridEvents,
});
const expandAll = () => {
gridApi.grid?.setAllTreeExpand(true);
};
const collapseAll = () => {
gridApi.grid?.setAllTreeExpand(false);
};
</script>
<template>
<Grid table-title="文件结构树" table-title-help="支持点击提示">
<template #toolbar-tools>
<ElButton type="primary" class="mr-8" @click="expandAll">
展开全部
</ElButton>
<ElButton type="primary" @click="collapseAll"> 折叠全部 </ElButton>
</template>
</Grid>
</template>
<style scoped>
.mr-8 {
margin-right: 8px;
}
</style>固定表头/列
在 远程分页 + 远程排序 模式下，结合 固定左/右列、固定表头、工具栏、刷新控制、及自定义单元格渲染 的完整表格使用方案。
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ref } from 'vue';
import { Page } from '@vben/common-ui';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/* ------------------------------
* 数据模型定义
* ------------------------------ */
export interface RowType {
id: number;
name: string;
age: number;
role: string | undefined;
city: string | undefined;
company: string | undefined;
phone: string;
email: string;
address: string;
joinDate: string;
}
/* ------------------------------
* 远程分页请求参数类型
* ------------------------------ */
export interface RemoteQueryParams {
page: number;
pageSize: number;
sortBy?: string;
sortOrder?: string;
}
/* ------------------------------
* 远程分页返回类型
* ------------------------------ */
export interface RemoteQueryResult<T> {
total: number;
items: T[];
}
/* ------------------------------
* 模拟 Fake 数据库
* ------------------------------ */
const mockDatabase: RowType[] = Array.from({ length: 200 }).map((_, idx) => ({
id: idx + 1,
name: `User-${idx + 1}`,
age: 18 + (idx % 40),
role: ['Admin', 'User', 'Guest'][idx % 3],
city: ['Tokyo', 'Osaka', 'Nagoya'][idx % 3],
company: ['Google', 'Amazon', 'Meta'][idx % 3],
phone: `1380000${(1000 + idx).toString().slice(-4)}`,
email: `user${idx + 1}@example.com`,
address: `Address-${idx + 1}, Some Street`,
joinDate: new Date(Date.now() - idx * 86_400_000).toISOString(),
}));
/* ------------------------------
* 模拟远程分页接口
* ------------------------------ */
async function fakeRemoteQuery(
params: RemoteQueryParams,
): Promise<RemoteQueryResult<RowType>> {
ElMessage.info(`fakeRemoteQuery 请求参数: ${JSON.stringify(params)}`);
const { page, pageSize } = params;
const start = (page - 1) * pageSize;
const end = start + pageSize;
return new Promise<RemoteQueryResult<RowType>>((resolve) => {
setTimeout(() => {
resolve({
total: mockDatabase.length,
items: mockDatabase.slice(start, end),
});
}, 500);
});
}
/* ------------------------------
* VxeGrid 配置（改成固定表头 / 固定列）
* ------------------------------ */
const gridOptions: VxeGridProps<RowType> = {
height: 'auto',
exportConfig: {},
columns: [
{ type: 'seq', title: '序号', width: 60, fixed: 'left' },
{ field: 'id', title: 'ID', width: 70, sortable: true, fixed: 'left' },
{ field: 'name', title: 'Name', minWidth: 120, sortable: true },
{ field: 'age', title: 'Age', width: 80, sortable: true },
{ field: 'role', title: 'Role', minWidth: 100, sortable: true },
{ field: 'city', title: 'City', minWidth: 100, sortable: true },
{ field: 'company', title: 'Company', minWidth: 120, sortable: true },
{ field: 'phone', title: 'Phone', minWidth: 140 },
{ field: 'email', title: 'Email', minWidth: 180 },
{ field: 'address', title: 'Address', minWidth: 220 },
{
field: 'joinDate',
title: 'Join Date',
minWidth: 140,
formatter: ({ cellValue }) => cellValue?.slice(0, 10),
sortable: true,
},
{
title: '操作',
fixed: 'right',
width: 120,
slots: { default: 'action' },
},
],
toolbarConfig: {
custom: true,
export: true,
refresh: true,
zoom: true,
},
proxyConfig: {
sort: true,
ajax: {
query: async ({ page, sort }) => {
const result = await fakeRemoteQuery({
page: page.currentPage,
pageSize: page.pageSize,
sortBy: sort.field,
sortOrder: sort.order,
});
return {
total: result.total,
items: result.items,
};
},
},
},
sortConfig: {
remote: true,
multiple: false,
defaultSort: {
field: 'age',
order: 'asc',
},
},
};
/* ------------------------------
* Grid 实例控制
* ------------------------------ */
const [Grid, gridApi] = useVbenVxeGrid<RowType>({
gridOptions,
});
const loading = ref(false);
function refreshCurrentPage() {
loading.value = true;
gridApi.query().finally(() => (loading.value = false));
}
function refreshToFirstPage() {
loading.value = true;
gridApi.reload().finally(() => (loading.value = false));
}
</script>
<template>
<Page auto-content-height>
<Grid
table-title="固定表头 / 固定列示例"
table-title-help="左侧固定序号和ID，右侧固定操作列"
>
<template #toolbar-tools>
<ElButton
class="mr-8"
type="primary"
:loading="loading"
@click="refreshCurrentPage"
>
刷新当前页
</ElButton>
<ElButton type="primary" :loading="loading" @click="refreshToFirstPage">
刷新并回到第一页
</ElButton>
</template>
<template #action="{ row }: { row: RowType }">
<ElButton
type="primary"
link
size="small"
@click="ElMessage.info(JSON.stringify(row))"
>
编辑
</ElButton>
</template>
</Grid>
</Page>
</template>
<style scoped>
.mr-8 {
margin-right: 8px;
}
</style>自定义单元格
这个示例演示了 vxe-grid 的后端分页代理模式（proxyConfig + pagerConfig），配合 固定列（左右固定）、自定义单元格渲染（slots），实现了带分页、固定表头列与自定义操作列的完整表格呈现流程。
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { Page } from '@vben/common-ui';
import { ElButton, ElImage, ElMessage, ElSwitch, ElTag } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/* ------------------------------
* 常量定义
* ------------------------------ */
const categories = ['Food', 'Book', 'Toy'] as const;
const colors = ['red', 'blue', 'green'] as const;
const statuses = ['error', 'success', 'warning'] as const;
/* ------------------------------
* Row 模型定义
* ------------------------------ */
interface RowType {
id: number;
category: string | undefined;
color: string | undefined;
imageUrl: string;
open: boolean;
price: string;
productName: string;
releaseDate: string;
status: 'error' | 'success' | 'warning' | undefined;
}
/* ------------------------------
* Mock 数据库
* ------------------------------ */
const mockDatabase: RowType[] = Array.from({ length: 50 }).map((_, idx) => ({
id: idx + 1,
category: categories[idx % categories.length],
color: colors[idx % colors.length],
imageUrl:
'https://fuss10.elemecdn.com/1/34/19aa98b1fcb2781c4fba33d850549jpeg.jpeg',
open: Math.random() > 0.5,
price: `$${(10 + idx).toFixed(2)}`,
productName: `Product-${idx + 1}`,
releaseDate: new Date(Date.now() - idx * 86_400_000).toISOString(),
status: statuses[idx % statuses.length],
}));
/* ------------------------------
* 模拟接口
* ------------------------------ */
async function fakeRemoteQuery(page: number, pageSize: number) {
ElMessage.info(`fakeRemoteQuery: page=${page}, pageSize=${pageSize}`);
const start = (page - 1) * pageSize;
const end = start + pageSize;
return new Promise<{ items: RowType[]; total: number }>((resolve) => {
setTimeout(() => {
resolve({
total: mockDatabase.length,
items: mockDatabase.slice(start, end),
});
}, 400);
});
}
/* ------------------------------
* VxeGrid 配置（核心：自定义 slots 渲染单元格）
* ------------------------------ */
const gridOptions: VxeGridProps<RowType> = {
height: 'auto',
showOverflow: false,
keepSource: true,
checkboxConfig: {
highlight: true,
labelField: 'productName',
},
columns: [
{ type: 'seq', title: '序号', width: 60 },
{ field: 'category', title: 'Category', width: 120 },
{
field: 'imageUrl',
title: 'Image',
width: 100,
slots: { default: 'image-url' },
},
{
field: 'open',
title: 'Open',
width: 100,
slots: { default: 'open' },
},
{
field: 'status',
title: 'Status',
width: 100,
slots: { default: 'status' },
},
{ field: 'color', title: 'Color', width: 100 },
{ field: 'productName', title: 'Product Name', width: 200 },
{ field: 'price', title: 'Price', width: 100 },
{
field: 'releaseDate',
title: 'Date',
width: 160,
formatter: ({ cellValue }) => cellValue?.slice(0, 10),
},
{
title: '操作',
width: 120,
fixed: 'right',
slots: { default: 'action' },
},
],
pagerConfig: {},
proxyConfig: {
ajax: {
query: async ({ page }) => {
const res = await fakeRemoteQuery(page.currentPage, page.pageSize);
return {
total: res.total,
items: res.items,
};
},
},
},
};
const [Grid] = useVbenVxeGrid<RowType>({
gridOptions,
});
</script>
<template>
<Page auto-content-height>
<Grid>
<!-- 自定义图片 -->
<template #image-url="{ row }">
<ElImage :src="row.imageUrl" style="width: 30px; height: 30px" />
</template>
<!-- 自定义开关 -->
<template #open="{ row }">
<ElSwitch v-model="row.open" />
</template>
<!-- 自定义状态 Tag -->
<template #status="{ row }">
<ElTag
:type="
row.status === 'error'
? 'danger'
: row.status === 'success'
? 'success'
: 'warning'
"
>
{{ row.status }}
</ElTag>
</template>
<!-- 自定义操作按钮 -->
<template #action="{ row }">
<ElButton
link
type="primary"
@click="ElMessage.info(JSON.stringify(row))"
>
编辑
</ElButton>
</template>
</Grid>
</Page>
</template>搜索表单
vue
<script lang="ts" setup>
import type { VbenFormProps } from '#/adapter/form';
import type { VxeTableGridOptions } from '#/adapter/vxe-table';
import { Page } from '@vben/common-ui';
import { ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/* ---------------------------------------
* 常量定义
* --------------------------------------- */
const colors = ['Red', 'Blue', 'Green'] as const;
/* ---------------------------------------
* Row 模型定义
* --------------------------------------- */
interface RowType {
id: number;
name: string;
category: string;
color: 'Blue' | 'Green' | 'Red' | undefined;
productName: string;
price: number;
releaseDate: string;
}
/* ---------------------------------------
* 搜索表单字段类型
* --------------------------------------- */
export interface SearchFormModel {
category?: string;
productName?: string;
price?: string;
color?: string;
start?: string;
end?: string;
}
/* ---------------------------------------
* 模拟 Fake 数据库
* --------------------------------------- */
const mockDatabase: RowType[] = Array.from({ length: 200 }).map((_, idx) => ({
id: idx + 1,
name: `User-${idx + 1}`,
category: `C-${(idx % 5) + 1}`,
color: colors[idx % colors.length],
productName: `Product-${idx + 1}`,
price: 10 + idx,
releaseDate: new Date(Date.now() - idx * 86_400_000).toISOString(),
}));
/* ---------------------------------------
* 模拟远程分页 + 搜索接口
* --------------------------------------- */
async function fakeRemoteQuery(
page: number,
pageSize: number,
params: SearchFormModel,
) {
ElMessage.info(`查询参数: ${JSON.stringify(params)}`);
const total = mockDatabase.length;
const startIndex = (page - 1) * pageSize;
const pageData = mockDatabase.slice(startIndex, startIndex + pageSize);
return { total, items: pageData };
}
/* ---------------------------------------
* 表单配置
* --------------------------------------- */
const formOptions: VbenFormProps = {
fieldMappingTime: [['date', ['start', 'end']]],
schema: [
{
component: 'Input',
label: 'Category',
fieldName: 'category',
},
{
component: 'Input',
label: 'ProductName',
fieldName: 'productName',
},
{
component: 'Input',
label: 'Price',
fieldName: 'price',
},
{
component: 'Select',
label: 'Color',
fieldName: 'color',
componentProps: {
options: [
{ label: 'Red', value: 'Red' },
{ label: 'Blue', value: 'Blue' },
{ label: 'Green', value: 'Green' },
],
placeholder: '请选择',
},
},
{
component: 'DatePicker',
label: 'Date',
fieldName: 'date',
componentProps: {
type: 'daterange',
rangeSeparator: '-',
startPlaceholder: '开始日期',
endPlaceholder: '结束日期',
},
},
],
showCollapseButton: false,
submitOnChange: false,
submitOnEnter: false,
};
/* ---------------------------------------
* 表格配置
* --------------------------------------- */
const gridOptions: VxeTableGridOptions<RowType> = {
height: 'auto',
columns: [
{ title: '序号', type: 'seq', width: 60 },
{ field: 'category', title: 'Category' },
{ field: 'color', title: 'Color' },
{ field: 'productName', title: 'Product Name' },
{ field: 'price', title: 'Price' },
{
field: 'releaseDate',
title: 'Date',
formatter: ({ cellValue }) => cellValue?.slice(0, 10),
},
],
pagerConfig: {},
toolbarConfig: {
custom: true,
export: true,
refresh: true,
search: true,
zoom: true,
},
proxyConfig: {
ajax: {
query: async ({ page }, formValues: SearchFormModel) => {
const result = await fakeRemoteQuery(
page.currentPage,
page.pageSize,
formValues,
);
return {
total: result.total,
items: result.items,
};
},
},
},
};
/* ---------------------------------------
* Grid 实例
* --------------------------------------- */
const [Grid] = useVbenVxeGrid({
formOptions,
gridOptions,
});
</script>
<template>
<Page auto-content-height>
<Grid />
</Page>
</template>单元格编辑
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ref } from 'vue';
import { Page } from '@vben/common-ui';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/* ------------------------------
* 数据模型定义
* ------------------------------ */
export interface RowType {
id: number;
name: string;
age: number;
role: string | undefined;
city: string | undefined;
company: string | undefined;
phone: string;
email: string;
address: string;
joinDate: string;
}
/* ------------------------------
* 远程分页请求参数类型
* ------------------------------ */
export interface RemoteQueryParams {
page: number;
pageSize: number;
sortBy?: string;
sortOrder?: string;
}
/* ------------------------------
* 远程分页返回类型
* ------------------------------ */
export interface RemoteQueryResult<T> {
total: number;
items: T[];
}
/* ------------------------------
* 构造模拟数据库
* ------------------------------ */
const mockDatabase: RowType[] = Array.from({ length: 200 }).map((_, idx) => ({
id: idx + 1,
name: `User-${idx + 1}`,
age: 18 + (idx % 40),
role: ['Admin', 'User', 'Guest'][idx % 3],
city: ['Tokyo', 'Osaka', 'Nagoya'][idx % 3],
company: ['Google', 'Amazon', 'Meta'][idx % 3],
phone: `1380000${(1000 + idx).toString().slice(-4)}`,
email: `user${idx + 1}@example.com`,
address: `Address-${idx + 1}, Some Street`,
joinDate: new Date(Date.now() - idx * 86_400_000).toISOString(),
}));
/* ------------------------------
* 模拟远程分页接口
* ------------------------------ */
async function fakeRemoteQuery(
params: RemoteQueryParams,
): Promise<RemoteQueryResult<RowType>> {
ElMessage.info(`fakeRemoteQuery 请求参数: ${JSON.stringify(params)}`);
const { page, pageSize } = params;
const start = (page - 1) * pageSize;
const end = start + pageSize;
return new Promise<RemoteQueryResult<RowType>>((resolve) => {
setTimeout(() => {
resolve({
total: mockDatabase.length,
items: mockDatabase.slice(start, end),
});
}, 500);
});
}
/* ------------------------------
* VxeGrid 配置
* ------------------------------ */
const gridOptions: VxeGridProps<RowType> = {
height: 'auto',
exportConfig: {},
columns: [
{ type: 'seq', title: '序号', width: 60 },
{ field: 'id', title: 'ID', width: 70, sortable: true },
{
field: 'name',
title: 'Name',
minWidth: 120,
sortable: true,
editRender: { name: 'input' },
},
{
field: 'age',
title: 'Age',
width: 80,
sortable: true,
editRender: { name: 'input' },
},
{
field: 'role',
title: 'Role',
minWidth: 100,
sortable: true,
editRender: { name: 'input' },
},
{ field: 'city', title: 'City', minWidth: 100, sortable: true },
{ field: 'company', title: 'Company', minWidth: 120, sortable: true },
{ field: 'phone', title: 'Phone', minWidth: 140 },
{ field: 'email', title: 'Email', minWidth: 180 },
{ field: 'address', title: 'Address', minWidth: 220 },
{
field: 'joinDate',
title: 'Join Date',
minWidth: 140,
formatter: ({ cellValue }) => cellValue?.slice(0, 10),
sortable: true,
},
],
editConfig: {
mode: 'cell',
trigger: 'click',
},
toolbarConfig: {
custom: true,
export: true,
refresh: true,
zoom: true,
},
proxyConfig: {
sort: true,
ajax: {
query: async ({ page, sort }) => {
const result = await fakeRemoteQuery({
page: page.currentPage,
pageSize: page.pageSize,
sortBy: sort.field,
sortOrder: sort.order,
});
return {
total: result.total,
items: result.items,
};
},
},
},
sortConfig: {
remote: true,
multiple: false, // 单列排序
defaultSort: {
field: 'age',
order: 'asc',
},
},
};
/* ------------------------------
* Grid 实例
* ------------------------------ */
const [Grid, gridApi] = useVbenVxeGrid<RowType>({
gridOptions,
});
const loading = ref(false);
function refreshCurrentPage() {
loading.value = true;
gridApi.query().finally(() => (loading.value = false));
}
function refreshToFirstPage() {
loading.value = true;
gridApi.reload().finally(() => (loading.value = false));
}
</script>
<template>
<Page auto-content-height>
<Grid
table-title="远程加载示例"
table-title-help="单列排序，仅打印后端参数"
>
<template #toolbar-tools>
<ElButton
class="mr-8"
type="primary"
:loading="loading"
@click="refreshCurrentPage"
>
刷新当前页
</ElButton>
<ElButton type="primary" :loading="loading" @click="refreshToFirstPage">
刷新并回到第一页
</ElButton>
</template>
</Grid>
</Page>
</template>
<style scoped>
.mr-8 {
margin-right: 8px;
}
</style>行编辑
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { Page } from '@vben/common-ui';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/** =============================
* 数据模型定义
* ============================= */
export interface RowType {
id: number;
name: string;
age: number;
role: string | undefined;
city: string | undefined;
company: string | undefined;
phone: string;
email: string;
address: string;
joinDate: string;
}
export interface RemoteQueryParams {
page: number;
pageSize: number;
}
export interface RemoteQueryResult<T> {
total: number;
items: T[];
}
/** =============================
* 模拟数据库
* ============================= */
const mockDatabase: RowType[] = Array.from({ length: 200 }).map((_, idx) => ({
id: idx + 1,
name: `User-${idx + 1}`,
age: 18 + (idx % 40),
role: ['Admin', 'User', 'Guest'][idx % 3],
city: ['Tokyo', 'Osaka', 'Nagoya'][idx % 3],
company: ['Google', 'Amazon', 'Meta'][idx % 3],
phone: `1380000${(1000 + idx).toString().slice(-4)}`,
email: `user${idx + 1}@example.com`,
address: `Address-${idx + 1}, Some Street`,
joinDate: new Date(Date.now() - idx * 86_400_000).toISOString(),
}));
/** =============================
* 模拟远程分页接口
* ============================= */
async function fakeRemoteQuery(
params: RemoteQueryParams,
): Promise<RemoteQueryResult<RowType>> {
const { page, pageSize } = params;
const start = (page - 1) * pageSize;
const end = start + pageSize;
return new Promise((resolve) => {
setTimeout(() => {
resolve({
total: mockDatabase.length,
items: mockDatabase.slice(start, end),
});
}, 400);
});
}
/** =============================
* VxeGrid 配置
* ============================= */
const gridOptions: VxeGridProps<RowType> = {
height: 'auto',
columns: [
{ type: 'seq', title: '序号', width: 60, fixed: 'left' },
{ field: 'id', title: 'ID', width: 70 },
{
field: 'name',
title: 'Name',
minWidth: 120,
editRender: { name: 'input' },
},
{ field: 'age', title: 'Age', width: 80, editRender: { name: 'input' } },
{
field: 'role',
title: 'Role',
minWidth: 100,
editRender: { name: 'input' },
},
{ field: 'city', title: 'City', minWidth: 100 },
{ field: 'company', title: 'Company', minWidth: 120 },
{ field: 'phone', title: 'Phone', minWidth: 140 },
{ field: 'email', title: 'Email', minWidth: 180 },
{ field: 'address', title: 'Address', minWidth: 220 },
{
field: 'joinDate',
title: 'Join Date',
minWidth: 140,
formatter: ({ cellValue }) => cellValue.slice(0, 10),
},
{
title: '操作',
fixed: 'right',
width: 160,
slots: { default: 'action' },
},
],
/** 行编辑配置 */
editConfig: {
mode: 'row',
trigger: 'click',
},
pagerConfig: {},
proxyConfig: {
ajax: {
query: async ({ page }) => {
return await fakeRemoteQuery({
page: page.currentPage,
pageSize: page.pageSize,
});
},
},
},
};
/** =============================
* Grid 实例 & 接口
* ============================= */
const [Grid, gridApi] = useVbenVxeGrid<RowType>({
gridOptions,
});
/** =============================
* 事件处理
* ============================= */
function isEditingRow(row: RowType) {
return gridApi.grid?.isEditByRow(row);
}
function editRow(row: RowType) {
gridApi.grid?.setEditRow(row);
}
async function saveRow(row: RowType) {
await gridApi.grid?.clearEdit();
ElMessage.success(`假保存成功: User ${row.id}`);
ElMessage.info(`fakeSaveRow 参数:, ${JSON.stringify(row, null, 2)}`);
}
function cancelEdit() {
gridApi.grid?.clearEdit();
}
</script>
<template>
<Page auto-content-height>
<Grid table-title="行编辑示例">
<template #action="{ row }">
<template v-if="isEditingRow(row)">
<ElButton type="success" link @click="saveRow(row)">保存</ElButton>
<ElButton type="danger" link @click="cancelEdit">取消</ElButton>
</template>
<template v-else>
<ElButton type="primary" link @click="editRow(row)">编辑</ElButton>
</template>
</template>
</Grid>
</Page>
</template>虚拟滚动
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ref } from 'vue';
import { Page } from '@vben/common-ui';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/* ------------------------------
* 数据模型
* ------------------------------ */
export interface RowType {
id: number;
name: string;
age: number;
role: string | undefined;
city: string | undefined;
company: string | undefined;
phone: string;
email: string;
address: string;
joinDate: string;
}
/* ------------------------------
* 模拟后端接口（不排序，不分页）
* ------------------------------ */
async function fakeRemoteQuery(): Promise<RowType[]> {
ElMessage.info(`fakeRemoteQuery 请求数据`);
// 构造数据
const data: RowType[] = Array.from({ length: 200 }).map((_, idx) => ({
id: idx + 1,
name: `User-${idx + 1}`,
age: 18 + (idx % 40),
role: ['Admin', 'User', 'Guest'][idx % 3],
city: ['Tokyo', 'Osaka', 'Nagoya'][idx % 3],
company: ['Google', 'Amazon', 'Meta'][idx % 3],
phone: `1380000${(1000 + idx).toString().slice(-4)}`,
email: `user${idx + 1}@example.com`,
address: `Address-${idx + 1}, Some Street`,
joinDate: new Date(Date.now() - idx * 86_400_000).toISOString(),
}));
return new Promise((resolve) => setTimeout(() => resolve(data), 400));
}
/* ------------------------------
* Grid 配置
* ------------------------------ */
const gridOptions: VxeGridProps<RowType> = {
height: 'auto',
// 开启虚拟滚动
virtualYConfig: {
enabled: true,
gt: 50, // 大于50行启用虚拟滚动
oSize: 20, // 每次渲染偏移量
preSize: 20, // 预加载数量
immediate: true, // 实时渲染
scrollToTopOnChange: true,
},
showOverflow: true,
pagerConfig: { enabled: false }, // 不分页
columns: [
{ type: 'seq', title: '序号', width: 60 },
{ field: 'id', title: 'ID', width: 70 },
{ field: 'name', title: 'Name', minWidth: 120 },
{ field: 'age', title: 'Age', width: 80 },
{ field: 'role', title: 'Role', minWidth: 100 },
{ field: 'city', title: 'City', minWidth: 100 },
{ field: 'company', title: 'Company', minWidth: 120 },
{ field: 'phone', title: 'Phone', minWidth: 140 },
{ field: 'email', title: 'Email', minWidth: 180 },
{ field: 'address', title: 'Address', minWidth: 220 },
{
field: 'joinDate',
title: 'Join Date',
minWidth: 140,
formatter: ({ cellValue }) => cellValue?.slice(0, 10),
},
],
toolbarConfig: {
custom: true,
export: true,
refresh: true,
zoom: true,
},
};
/* ------------------------------
* Grid 实例
* ------------------------------ */
const [Grid, gridApi] = useVbenVxeGrid<RowType>({ gridOptions });
const loading = ref(false);
/* ------------------------------
* 加载数据
* ------------------------------ */
async function loadData() {
loading.value = true;
try {
const list = await fakeRemoteQuery();
gridApi.setGridOptions({ data: list });
} finally {
loading.value = false;
}
}
/* ------------------------------
* 初始化加载
* ------------------------------ */
loadData();
/* ------------------------------
* 刷新操作
* ------------------------------ */
function refreshData() {
loadData();
}
</script>
<template>
<Page auto-content-height>
<Grid table-title="不分页示例" table-title-help="加载全部数据，无排序">
<template #toolbar-tools>
<ElButton
class="mr-8"
type="primary"
:loading="loading"
@click="refreshData"
>
刷新
</ElButton>
</template>
</Grid>
</Page>
</template>
<style scoped>
.mr-8 {
margin-right: 8px;
}
</style>Vxe Table 表格（自定义示例）
基础表格渲染
支持普通列展示、列标题、自定义列字段等。
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
role: string;
}
const tableData: RowType[] = [
{ id: 1, name: '张三', age: 24, role: 'Admin' },
{ id: 2, name: '李四', age: 28, role: 'User' },
{ id: 3, name: '王五', age: 31, role: 'Guest' },
];
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ title: '序号', type: 'seq', width: 50 },
{ field: 'name', title: 'Name' },
{ field: 'age', title: 'Age' },
{ field: 'role', title: 'Role' },
],
data: tableData,
pagerConfig: { enabled: false },
};
const [Grid] = useVbenVxeGrid({ gridOptions });
</script>
<template>
<div class="w-full">
<Grid />
</div>
</template>边框与样式控制
支持控制表格边框显示、斑马纹、对齐等样式项
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ElButton } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
role: string;
}
const tableData: RowType[] = [
{ id: 1, name: '张三', age: 24, role: 'Admin' },
{ id: 2, name: '李四', age: 28, role: 'User' },
{ id: 3, name: '王五', age: 31, role: 'Guest' },
];
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ title: '序号', type: 'seq', width: 50 },
{ field: 'name', title: 'Name' },
{ field: 'age', title: 'Age' },
{ field: 'role', title: 'Role' },
],
data: tableData,
border: true,
stripe: true,
align: 'center',
pagerConfig: { enabled: false },
};
const [Grid, gridApi] = useVbenVxeGrid({ gridOptions });
function toggleBorder() {
gridApi.setGridOptions({
border: !gridApi.useStore((s) => s.gridOptions?.border).value,
});
}
function toggleStripe() {
gridApi.setGridOptions({
stripe: !gridApi.useStore((s) => s.gridOptions?.stripe).value,
});
}
</script>
<template>
<div class="w-full">
<Grid>
<template #toolbar-tools>
<ElButton size="small" class="mr-2" @click="toggleBorder">
切换边框
</ElButton>
<ElButton size="small" class="mr-2" @click="toggleStripe">
切换斑马纹
</ElButton>
</template>
</Grid>
</div>
</template>Loading 状态控制
可通过 API 触发表格 loading 效果
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ElButton } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
role: string;
}
const tableData: RowType[] = [
{ id: 1, name: '张三', age: 24, role: 'Admin' },
{ id: 2, name: '李四', age: 28, role: 'User' },
{ id: 3, name: '王五', age: 31, role: 'Guest' },
];
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ title: '序号', type: 'seq', width: 50 },
{ field: 'name', title: 'Name' },
{ field: 'age', title: 'Age' },
{ field: 'role', title: 'Role' },
],
data: tableData,
pagerConfig: { enabled: false },
};
const [Grid, gridApi] = useVbenVxeGrid({ gridOptions });
function showLoading() {
gridApi.setLoading(true);
setTimeout(() => gridApi.setLoading(false), 1500);
}
</script>
<template>
<div class="w-full">
<Grid>
<template #toolbar-tools>
<ElButton size="small" class="mr-2" @click="showLoading">
显示 Loading
</ElButton>
</template>
</Grid>
</div>
</template>分页列表
内置分页能力，可开启/关闭分页、控制 total/当前页/页面大小等
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
role: string;
}
// 模拟全量数据（100条）
const fullTableData: RowType[] = Array.from({ length: 100 }, (_, i) => ({
id: i + 1,
name: `用户${i + 1}`,
age: 20 + (i % 50),
role: `角色${i + 1}`,
}));
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ title: '序号', type: 'seq', width: 60 },
{ field: 'name', title: 'Name' },
{ field: 'age', title: 'Age' },
{ field: 'role', title: 'Role' },
],
pagerConfig: {
enabled: true,
pageSize: 10,
pageSizes: [10, 20, 50, 100],
total: 0, // 初始可为0，由 proxy 返回后自动更新
},
proxyConfig: {
enabled: true,
autoLoad: true,
response: {
result: 'items',
total: 'total',
},
ajax: {
query: async ({ page }) => {
const currentPage = page?.currentPage || 1;
const pageSize = page?.pageSize || 10;
const start = (currentPage - 1) * pageSize;
const end = start + pageSize;
// 模拟异步延迟（可选）
await new Promise((resolve) => setTimeout(resolve, 200));
return {
items: fullTableData.slice(start, end),
total: fullTableData.length,
};
},
},
},
};
const [Grid] = useVbenVxeGrid({ gridOptions });
</script>
<template>
<div class="w-full">
<Grid />
</div>
</template>排序配置
支持单列或多列排序并通过 sortConfig 控制行为
vue
<script lang="ts" setup>
import type { VxeGridListeners, VxeGridProps } from '#/adapter/vxe-table';
import { ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
address: string;
}
// 模拟数据
const data: RowType[] = [
{ id: 1, name: '张三', age: 26, address: '北京' },
{ id: 2, name: '李四', age: 31, address: '上海' },
{ id: 3, name: '王五', age: 22, address: '杭州' },
];
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ title: '序号', type: 'seq', width: 60 },
{ field: 'name', title: '姓名' },
{ field: 'age', title: '年龄', sortable: true },
{ field: 'address', title: '地址', sortable: true },
],
data,
pagerConfig: { enabled: false },
sortConfig: {
remote: true,
multiple: true,
},
};
const gridEvents: VxeGridListeners<RowType> = {
sortChange: async ({ sortList }) => {
// sortList = [{ field: 'age', order: 'asc' }, { field: 'name', order: 'desc' }]
if (sortList.length === 0) {
ElMessage.info('排序已清空');
// await remoteSortQuery([]);
return;
}
// 传给后台的排序参数数组
const orders = sortList
.filter((item) => item.order)
.map((item) => ({
field: item.field,
order: item.order,
}));
ElMessage.info(`远程多列排序: ${JSON.stringify(orders)}`);
// 发给后端
// await remoteSortQuery(orders);
},
};
const [Grid] = useVbenVxeGrid({
gridOptions,
gridEvents,
});
</script>
<template>
<div class="w-full">
<Grid />
</div>
</template>表头筛选功能
支持表头筛选条件（基于 vxe-table 原生筛选机制）
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
role: string;
}
const tableData: RowType[] = [
{ id: 1, name: '张三', age: 24, role: 'Admin' },
{ id: 2, name: '李四', age: 28, role: 'User' },
{ id: 3, name: '王五', age: 31, role: 'Guest' },
{ id: 4, name: '赵六', age: 28, role: 'User' },
];
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ title: '序号', type: 'seq', width: 50 },
{
field: 'name',
title: 'Name',
filters: [
{ label: '张三', value: '张三' },
{ label: '李四', value: '李四' },
{ label: '王五', value: '王五' },
],
filterMethod({ option, row }) {
return row.name === option.value;
},
},
{
field: 'role',
title: 'Role',
filters: [
{ label: 'Admin', value: 'Admin' },
{ label: 'User', value: 'User' },
{ label: 'Guest', value: 'Guest' },
],
filterMultiple: true,
filterMethod({ option, row }) {
return row.role === option.value;
},
},
{ field: 'age', title: 'Age' },
],
data: tableData,
pagerConfig: { enabled: false },
};
const [Grid] = useVbenVxeGrid({ gridOptions });
</script>
<template>
<div class="w-full">
<Grid />
</div>
</template>列表多选（Checkbox）
支持勾选多行并通过 checkboxConfig 控制行为，同时可以通过 gridApi 获取选择结果。
vue
<script lang="ts" setup>
import type { VxeGridListeners, VxeGridProps } from '#/adapter/vxe-table';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
role: string;
disable?: boolean;
}
const tableData: RowType[] = [
{ id: 1, name: '张三', age: 24, role: 'Admin' },
{ id: 2, name: '李四', age: 28, role: 'User' },
{ id: 3, name: '王五', age: 31, role: 'Guest' },
{ id: 4, name: '赵六', age: 22, role: 'User', disable: true },
];
const gridOptions: VxeGridProps<RowType> = {
rowConfig: {
keyField: 'id', // 每行唯一标识字段，对应 RowType 中的 id
},
columns: [
{ type: 'checkbox', width: 60 },
{ title: '序号', type: 'seq', width: 60 },
{ field: 'name', title: '姓名' },
{ field: 'age', title: '年龄' },
{ field: 'role', title: '角色' },
],
data: tableData,
pagerConfig: { enabled: false },
checkboxConfig: {
reserve: true,
checkMethod({ row }) {
// 禁止 disable 行被手动选中
return !row.disable;
},
},
};
const gridEvents: VxeGridListeners<RowType> = {
checkboxChange({ records }) {
ElMessage.success(`当前选中 ${records.length} 项`);
},
checkboxAll({ records }) {
ElMessage.success(`全选/取消全选：共 ${records.length} 项`);
},
};
const [Grid, gridApi] = useVbenVxeGrid({ gridOptions, gridEvents });
/** 获取所有已勾选的行 */
function getSelectedRows() {
const rows = gridApi.grid?.getCheckboxRecords() ?? [];
ElMessage.success(`已选中 ${rows.length} 行`);
}
/** 清空所有勾选 */
function clearSelections() {
gridApi.grid?.clearCheckboxRow(); // 调用原生方法
ElMessage.success('清空勾选成功');
}
/** 默认勾选第一行 */
function checkFirstRow() {
const first = tableData[0];
if (!first) {
ElMessage.success('无可勾选数据');
return;
}
gridApi.grid?.setCheckboxRow(first, true); // 原生方法设置勾选
ElMessage.success('已勾选第一行');
}
</script>
<template>
<div class="w-full">
<Grid>
<template #toolbar-tools>
<ElButton size="small" class="mr-2" @click="getSelectedRows">
获取选中
</ElButton>
<ElButton size="small" class="mr-2" @click="clearSelections">
清空选中
</ElButton>
<ElButton size="small" @click="checkFirstRow"> 勾选第一行 </ElButton>
</template>
</Grid>
</div>
</template>固定表头 / 固定列
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ElButton, ElMessage } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
role: string;
department: string;
phone: string;
email: string;
address: string;
createTime: string;
}
// 模拟全量数据（100 条）
const fullTableData: RowType[] = Array.from({ length: 100 }, (_, i) => ({
id: i + 1,
name: `用户${i + 1}`,
age: 20 + (i % 30),
role: `角色${(i % 5) + 1}`,
department: `部门${(i % 8) + 1}`,
phone: `1380000${String(i).padStart(4, '0')}`,
email: `user${i + 1}@demo.com`,
address: `某某省某某市某某区 ${i + 1} 号`,
createTime: new Date(2025, i % 12, (i % 28) + 1, 10, 30, 0).toLocaleString(),
}));
const gridOptions: VxeGridProps<RowType> = {
// 固定表头必备：给 maxHeight
maxHeight: 800,
columns: [
{ fixed: 'left', title: '序号', type: 'seq', width: 60 },
{ field: 'name', title: '姓名', minWidth: 120 },
{ field: 'age', title: '年龄', minWidth: 100 },
{ field: 'role', title: '角色', minWidth: 120 },
{ field: 'department', title: '部门', minWidth: 140 },
{ field: 'phone', title: '手机号', minWidth: 160 },
{ field: 'email', title: '邮箱', minWidth: 200 },
{ field: 'address', title: '地址', minWidth: 260 },
{ field: 'createTime', title: '创建时间', minWidth: 180 },
{
field: 'id',
title: '操作',
fixed: 'right',
width: 140,
slots: { default: 'action' }, // 使用插槽渲染操作列
},
],
pagerConfig: {
enabled: true,
pageSize: 10,
pageSizes: [10, 20, 50, 100],
total: 0,
},
proxyConfig: {
enabled: true,
autoLoad: true,
response: {
result: 'items',
total: 'total',
},
ajax: {
query: async ({ page }) => {
const currentPage = page?.currentPage || 1;
const pageSize = page?.pageSize || 10;
const start = (currentPage - 1) * pageSize;
const end = start + pageSize;
// 模拟延迟
await new Promise((r) => setTimeout(r, 200));
return {
items: fullTableData.slice(start, end),
total: fullTableData.length,
};
},
},
},
rowConfig: {
keyField: 'id',
isHover: true,
},
};
const [Grid] = useVbenVxeGrid({ gridOptions });
/** 点击编辑 */
function handleEdit(row: RowType) {
ElMessage.success(`点击编辑：${JSON.stringify(row)}`);
}
/** 点击删除 */
function handleDelete(row: RowType) {
ElMessage.warning(`点击删除：${JSON.stringify(row)}`);
}
</script>
<template>
<div class="vp-raw w-full">
<Grid>
<!-- 操作列插槽，给 row 明确类型 -->
<template #action="{ row }: { row: RowType }">
<ElButton type="primary" size="small" @click="handleEdit(row)">
编辑
</ElButton>
<ElButton type="danger" size="small" @click="handleDelete(row)">
删除
</ElButton>
</template>
</Grid>
</div>
</template>树形表格
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ElButton } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
parentId: null | number; // 关键：父节点 ID
name: string;
age: number;
role: string;
}
// 树形数据（平铺结构，由 treeConfig.transform 自动转树）
const tableData: RowType[] = [
{ id: 1, parentId: 0, name: '技术部', age: 0, role: 'Department' },
{ id: 2, parentId: 1, name: '张三', age: 24, role: 'Admin' },
{ id: 3, parentId: 1, name: '李四', age: 28, role: 'User' },
{ id: 4, parentId: 0, name: '市场部', age: 0, role: 'Department' },
{ id: 5, parentId: 4, name: '王五', age: 31, role: 'Guest' },
{ id: 6, parentId: 4, name: '赵六', age: 26, role: 'User' },
];
const gridOptions: VxeGridProps<RowType> = {
// 开启树形表格配置
treeConfig: {
transform: true, // 指定表格为树形表格
parentField: 'parentId', // 父节点字段名
rowField: 'id', // 行数据字段名
expandAll: true, // 默认展开全部
},
columns: [
{ title: '序号', type: 'seq', width: 60 },
{
title: '名称',
field: 'name',
treeNode: true, // 关键：告诉 vxe 这是树节点列
minWidth: 200,
},
{ field: 'age', title: 'Age', width: 100 },
{ field: 'role', title: 'Role', minWidth: 120 },
],
data: tableData,
pagerConfig: { enabled: false },
rowConfig: {
keyField: 'id',
},
};
const [Grid, gridApi] = useVbenVxeGrid({ gridOptions });
const expandAll = () => {
gridApi.grid?.setAllTreeExpand(true);
};
const collapseAll = () => {
gridApi.grid?.setAllTreeExpand(false);
};
</script>
<template>
<div class="w-full">
<Grid>
<template #toolbar-tools>
<ElButton class="mr-2" type="primary" @click="expandAll">
展开全部
</ElButton>
<ElButton type="primary" @click="collapseAll"> 折叠全部 </ElButton>
</template>
</Grid>
</div>
</template>分页 + 搜索表单
vue
<script lang="ts" setup>
import type { VbenFormProps } from '#/adapter/form';
import type { VxeGridProps } from '#/adapter/vxe-table';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
/* ================= 类型定义 ================= */
interface RowType {
id: number;
name: string;
age: number;
role: string;
}
/* ================= 搜索表单配置 ================= */
const formOptions: VbenFormProps = {
collapsed: false,
showCollapseButton: true,
submitButtonOptions: {
content: '查询',
},
submitOnChange: false,
submitOnEnter: false,
schema: [
{
fieldName: 'name',
label: '姓名',
component: 'Input',
componentProps: {
placeholder: '请输入姓名',
},
},
{
fieldName: 'role',
label: '角色',
component: 'Input',
componentProps: {
placeholder: '请输入角色',
},
},
{
fieldName: 'age',
label: '年龄',
component: 'InputNumber',
componentProps: {
placeholder: '请输入年龄',
min: 0,
},
},
],
};
/* ================= 模拟“数据库”数据 ================= */
const fullTableData: RowType[] = Array.from({ length: 100 }, (_, i) => ({
id: i + 1,
name: `用户${i + 1}`,
age: 20 + (i % 50),
role: `角色${(i % 5) + 1}`,
}));
/* ================= 模拟后端接口（不拆文件，直接写在这里） ================= */
/**
* 模拟后端分页 + 条件查询接口
*/
function queryUserListApi(params: {
age?: number;
name?: string;
page: number;
pageSize: number;
role?: string;
}): Promise<{ items: RowType[]; total: number }> {
return new Promise((resolve) => {
setTimeout(() => {
const { page, pageSize, name, role, age } = params;
// 1. 模拟后端条件过滤
const filtered = fullTableData.filter((item) => {
if (name && !item.name.includes(name)) {
return false;
}
if (role && !item.role.includes(role)) {
return false;
}
if (age !== undefined && age !== null && item.age !== age) {
return false;
}
return true;
});
// 2. 模拟后端分页
const start = (page - 1) * pageSize;
const end = start + pageSize;
resolve({
items: filtered.slice(start, end),
total: filtered.length,
});
}, 300); // 模拟网络延迟
});
}
/* ================= 表格配置 ================= */
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ title: '序号', type: 'seq', width: 60 },
{ field: 'name', title: 'Name' },
{ field: 'age', title: 'Age' },
{ field: 'role', title: 'Role' },
],
pagerConfig: {
enabled: true,
pageSize: 10,
pageSizes: [10, 20, 50, 100],
total: 0,
},
proxyConfig: {
enabled: true,
autoLoad: true,
response: {
result: 'items',
total: 'total',
},
ajax: {
/**
* 这里就是真正“像在调后端接口”的地方
* page → 分页参数
* formValues → 搜索表单参数
*/
query: async ({ page }, formValues) => {
const currentPage = page?.currentPage || 1;
const pageSize = page?.pageSize || 10;
// 直接调用“假接口”
return await queryUserListApi({
page: currentPage,
pageSize,
...formValues,
});
},
},
},
toolbarConfig: {
// 打开搜索表单控制按钮
// 当前类型文件里没暴露 search 字段，所以先忽略 TS
// 实际完整环境中是有声明的
// @ts-ignore
search: true,
},
};
/* ================= 初始化 Grid ================= */
const [Grid] = useVbenVxeGrid({
formOptions,
gridOptions,
});
</script>
<template>
<div class="w-full">
<Grid />
</div>
</template>表格默认插槽和自定义插槽
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { ElButton, ElInput, ElMessage, ElTag } from 'element-plus';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
age: number;
role: string;
}
const tableData: RowType[] = [
{ id: 1, name: '张三', age: 24, role: 'Admin' },
{ id: 2, name: '李四', age: 28, role: 'User' },
{ id: 3, name: '王五', age: 31, role: 'Guest' },
];
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ title: '序号', type: 'seq', width: 50 },
{
field: 'name',
title: 'Name',
slots: { default: 'name' }, // 单元格插槽
},
{
field: 'age',
title: 'Age',
slots: { default: 'age' }, // 单元格插槽
},
{
field: 'role',
title: 'Role',
slots: { default: 'role' }, // 单元格插槽
},
{
title: '操作',
width: 160,
fixed: 'right',
slots: { default: 'action' }, // 操作列插槽
},
],
data: tableData,
pagerConfig: { enabled: false },
};
const [Grid] = useVbenVxeGrid({ gridOptions });
/* ===== 事件示例 ===== */
function handleEdit(row: RowType) {
ElMessage.success(`编辑：${row.name}`);
}
function handleDelete(row: RowType) {
ElMessage.error(`删除：${row.name}`);
}
</script>
<template>
<div class="w-full">
<Grid>
<!-- ================= 表格标题插槽 ================= -->
<template #table-title>
<div class="flex items-center">
<ElTag type="success" class="mr-2">Demo</ElTag>
<span class="text-base font-bold">用户列表（Slots 演示）</span>
</div>
</template>
<!-- ================= 工具栏左侧：toolbar-actions ================= -->
<template #toolbar-actions>
<ElButton
type="primary"
size="small"
@click="ElMessage.success('新增点击')"
>
新增
</ElButton>
<ElButton size="small" @click="ElMessage.info('导出点击')">
导出
</ElButton>
</template>
<!-- ================= 工具栏右侧：toolbar-tools ================= -->
<template #toolbar-tools>
<ElInput
size="small"
style="width: 180px"
placeholder="右侧快速搜索（示例）"
/>
<ElButton
size="small"
type="primary"
class="ml-2"
@click="ElMessage.success('右侧按钮点击')"
>
搜索
</ElButton>
</template>
<!-- ================= 单元格插槽 ================= -->
<template #name="{ row }: { row: RowType }">
<ElTag type="info">{{ row.name }}</ElTag>
</template>
<template #age="{ row }: { row: RowType }">
<span :style="{ color: row.age > 26 ? '#f56c6c' : '#67c23a' }">
{{ row.age }}
</span>
</template>
<template #role="{ row }: { row: RowType }">
<ElTag
:type="
row.role === 'Admin'
? 'danger'
: row.role === 'User'
? 'success'
: 'info'
"
>
{{ row.role }}
</ElTag>
</template>
<!-- ================= 操作列插槽 ================= -->
<template #action="{ row }: { row: RowType }">
<ElButton type="primary" size="small" link @click="handleEdit(row)">
编辑
</ElButton>
<ElButton type="danger" size="small" link @click="handleDelete(row)">
删除
</ElButton>
</template>
</Grid>
</div>
</template>搜索表单插槽
vue
虚拟滚动
vue
<script lang="ts" setup>
import type { VxeGridProps } from '#/adapter/vxe-table';
import { onMounted } from 'vue';
import { useVbenVxeGrid } from '#/adapter/vxe-table';
interface RowType {
id: number;
name: string;
role: string;
sex: string;
}
const gridOptions: VxeGridProps<RowType> = {
columns: [
{ type: 'seq', width: 70 },
{ field: 'name', title: 'Name' },
{ field: 'role', title: 'Role' },
{ field: 'sex', title: 'Sex' },
],
data: [],
// 表格高度交给外层容器控制
height: 'auto',
pagerConfig: {
enabled: false,
},
// 开启虚拟滚动
virtualYConfig: {
enabled: true,
gt: 50, // 大于50行启用虚拟滚动
oSize: 20, // 每次渲染偏移量
preSize: 20, // 预加载数量
immediate: true, // 实时渲染
scrollToTopOnChange: true,
},
showOverflow: true,
};
const [Grid, gridApi] = useVbenVxeGrid({ gridOptions });
// 模拟接口返回数据
function loadList(size = 1000) {
const list: RowType[] = [];
for (let i = 0; i < size; i++) {
list.push({
id: i + 1,
name: `Test${i}`,
role: 'Developer',
sex: i % 2 === 0 ? '男' : '女',
});
}
// 模拟“接口返回后刷新表格数据”
gridApi.setGridOptions({
data: list,
});
}
onMounted(() => {
loadList(5000); // 你可以改成 10000、50000 感受差别
});
</script>
<template>
<!-- 外层容器给高度，虚拟滚动才生效 -->
<div class="h-[500px] w-full">
<Grid />
</div>
</template>
