Flink on SpringBoot

集成SpringBoot框架的Flink程序，运行在集群上

基础配置

首先创建一个SpringBoot项目，以下配置基于该项目做更改。

服务版本

JDK：8
SpringBoot：2.7.18
Flink：1.19.1

配置pom.xml

xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <!-- 项目模型版本 -->
    <modelVersion>4.0.0</modelVersion>

    <!-- 项目坐标 -->
    <groupId>local.ateng.java</groupId>
    <artifactId>flink-cluster</artifactId>
    <version>v1.0</version>
    <name>flink-cluster</name>
    <description>
        集成SpringBoot框架的Flink程序，运行在集群上
    </description>

    <!-- 项目属性 -->
    <properties>
        <!-- 默认主程序 -->
        <start-class>local.ateng.java.flink.BigdataFlinkClusterApplication</start-class>
        <java.version>8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.7.18</spring-boot.version>
        <maven-compiler.version>3.12.1</maven-compiler.version>
        <maven-shade.version>3.5.1</maven-shade.version>
        <lombok.version>1.18.36</lombok.version>
        <fastjson2.version>2.0.53</fastjson2.version>
        <hutool.version>5.8.35</hutool.version>
        <hadoop.version>3.3.6</hadoop.version>
        <flink.version>1.19.1</flink.version>
        <kafka.version>3.8.1</kafka.version>
        <flink-kafka.version>3.3.0-1.19</flink-kafka.version>
        <mysql.version>8.0.33</mysql.version>
        <postgresql.version>42.7.1</postgresql.version>
    </properties>

    <!-- 项目依赖 -->
    <dependencies>
        <!-- Spring Boot Web Starter: 包含用于构建Web应用程序的Spring Boot依赖项 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-tomcat</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!-- 使用log4j2作为日志实现 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-log4j2</artifactId>
        </dependency>

        <!-- Spring Boot Starter Test: 包含用于测试Spring Boot应用程序的依赖项 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- Lombok: 简化Java代码编写的依赖项 -->
        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- 高性能的JSON库 -->
        <!-- https://github.com/alibaba/fastjson2/wiki/fastjson2_intro_cn#0-fastjson-20%E4%BB%8B%E7%BB%8D -->
        <dependency>
            <groupId>com.alibaba.fastjson2</groupId>
            <artifactId>fastjson2</artifactId>
            <version>${fastjson2.version}</version>
        </dependency>
        <!-- 在 Spring 中集成 Fastjson2 -->
        <!-- https://github.com/alibaba/fastjson2/blob/main/docs/spring_support_cn.md -->
        <dependency>
            <groupId>com.alibaba.fastjson2</groupId>
            <artifactId>fastjson2-extension-spring6</artifactId>
            <version>${fastjson2.version}</version>
        </dependency>

        <!-- Hutool: Java工具库，提供了许多实用的工具方法 -->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>${hutool.version}</version>
        </dependency>

        <!-- JavaFaker: 用于生成虚假数据的Java库 -->
        <dependency>
            <groupId>com.github.javafaker</groupId>
            <artifactId>javafaker</artifactId>
            <version>1.0.2</version>
        </dependency>

        <!-- Apache Flink 客户端库 -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- Apache Flink 连接器基础库库 -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-base</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>
        <!-- Apache Flink Kafka 连接器库 -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka</artifactId>
            <version>${flink-kafka.version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- Apache Flink Table API & SQL -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-api-java-bridge</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-planner-loader</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-runtime</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- Flink SQL parquet 格式 -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-sql-parquet</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>
        <!-- Flink SQL csv 格式 -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-sql-csv</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>
        <!-- Flink SQL json 格式 -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-sql-json</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

    </dependencies>

    <!-- Spring Boot 依赖管理 -->
    <dependencyManagement>
        <dependencies>
            <!-- SpringBoot 依赖管理 -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <!-- 插件仓库配置 -->
    <repositories>
        <!-- Central Repository -->
        <repository>
            <id>central</id>
            <name>阿里云中央仓库</name>
            <url>https://maven.aliyun.com/repository/central</url>
            <!--<name>Maven官方中央仓库</name>
            <url>https://repo.maven.apache.org/maven2/</url>-->
        </repository>
    </repositories>

    <!-- 构建配置 -->
    <build>
        <finalName>${project.name}-${project.version}</finalName>
        <plugins>
            <!-- Maven 编译插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>${maven-compiler.version}</version>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                    <encoding>${project.build.sourceEncoding}</encoding>
                </configuration>
            </plugin>

            <!-- Maven Shade 打包插件 -->
            <!-- https://maven.apache.org/plugins/maven-shade-plugin/shade-mojo.html -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>${maven-shade.version}</version>
                <configuration>
                    <!-- 禁用生成 dependency-reduced-pom.xml 文件 -->
                    <createDependencyReducedPom>false</createDependencyReducedPom>
                    <!-- 附加shaded工件时使用的分类器的名称 -->
                    <shadedClassifierName>shaded</shadedClassifierName>
                    <filters>
                        <!-- 不复制 META-INF 下的签名文件 -->
                        <filter>
                            <artifact>*:*</artifact>
                            <excludes>
                                <exclude>module-info.class</exclude>
                                <exclude>META-INF/*.SF</exclude>
                                <exclude>META-INF/*.MF</exclude>
                                <exclude>META-INF/*.DSA</exclude>
                                <exclude>META-INF/*.RSA</exclude>
                                <exclude>**/Log4j2Plugins.dat</exclude>
                                <!--<exclude>META-INF/*.txt</exclude>
                                <exclude>META-INF/NOTICE</exclude>
                                <exclude>META-INF/LICENSE</exclude>
                                <exclude>META-INF/services/java.sql.Driver</exclude>
                                -->
                                <!-- 排除resources下的xml配置文件 -->
                                <!--<exclude>log*.xml</exclude>-->
                            </excludes>
                        </filter>
                    </filters>
                    <artifactSet>
                        <!-- 排除依赖项 -->
                        <!--<excludes>
                            <exclude>org.apache.logging.log4j:*</exclude>
                            <exclude>org.slf4j:*</exclude>
                        </excludes>-->
                    </artifactSet>
                </configuration>
                <dependencies>
                    <dependency>
                        <groupId>org.springframework.boot</groupId>
                        <artifactId>spring-boot-maven-plugin</artifactId>
                        <version>${spring-boot.version}</version>
                    </dependency>
                </dependencies>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <transformers>
                                <!-- 合并 Log4j2Plugins.dat 文件 -->
                                <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>Log4j2Plugins.dat</resource>
                                </transformer>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/additional-spring-configuration-metadata.json</resource>
                                </transformer>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/spring-configuration-metadata.json</resource>
                                </transformer>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/spring.handlers</resource>
                                </transformer>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/spring.schemas</resource>
                                </transformer>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/spring.tooling</resource>
                                </transformer>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports</resource>
                                </transformer>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>
                                        META-INF/spring/org.springframework.boot.actuate.autoconfigure.web.ManagementContextConfiguration.imports
                                    </resource>
                                </transformer>
                                <transformer implementation="org.springframework.boot.maven.PropertiesMergingResourceTransformer">
                                    <resource>META-INF/spring.factories</resource>
                                </transformer>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.ServicesResourceTransformer"/>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                    <!-- 指定默认主程序 -->
                                    <mainClass>${start-class}</mainClass>
                                </transformer>
                            </transformers>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
        <resources>
            <!-- 第一个资源配置块 -->
            <resource>
                <directory>src/main/resources</directory>
                <filtering>false</filtering>
            </resource>
            <!-- 第二个资源配置块 -->
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>application*</include>
                    <include>bootstrap*.yml</include>
                    <include>common*</include>
                    <include>banner*</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

</project>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330

编辑应用配置文件

编辑 application.yml 配置文件

yaml

server:
  port: 16002
  servlet:
    context-path: /
spring:
  main:
    web-application-type: none
  application:
    name: ${project.artifactId}

创建日志配置文件

在 resources 目录下创建 log4j2.xml 日志配置文件

xml

<?xml version="1.0" encoding="UTF-8"?>
<Configuration status="WARN">
    <Appenders>
        <Console name="Console" target="SYSTEM_OUT">
            <PatternLayout pattern="%d{ISO8601} [%t] %-5level %logger{36} - %msg%n" />
        </Console>
    </Appenders>
    <Loggers>
        <!-- 设置 org.apache.kafka 包日志级别为 WARN -->
        <Logger name="org.apache.kafka" level="warn" additivity="false">
            <AppenderRef ref="Console" />
        </Logger>
        <!-- 设置 org.apache.flink 包日志级别为 WARN -->
        <Logger name="org.apache.flink" level="warn" additivity="false">
            <AppenderRef ref="Console" />
        </Logger>
        <!-- 根日志级别设置为 INFO -->
        <Root level="info">
            <AppenderRef ref="Console" />
        </Root>
    </Loggers>
</Configuration>

创建Runner

通过该Runner运行指定的类和方法

java

package local.ateng.java.flink.runner;

import cn.hutool.extra.spring.SpringUtil;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.context.ApplicationContext;
import org.springframework.stereotype.Component;
import org.springframework.util.ObjectUtils;

import java.lang.reflect.Method;
import java.util.List;

/**
 * 运行Flink任务
 *
 * @author 孔余
 * @email 2385569970@qq.com
 * @since 2025-01-22
 */
@Component
@RequiredArgsConstructor(onConstructor = @__(@Autowired))
public class MyFlinkJobRunner implements ApplicationRunner {
    private final ApplicationContext applicationContext;

    @Override
    public void run(ApplicationArguments args) throws Exception {
        // 获取需要运行的任务名称
        List<String> classArgs = args.getOptionValues("class");
        List<String> methodArgs = args.getOptionValues("method");
        List<String> nonOptionArgs = args.getNonOptionArgs();
        if (ObjectUtils.isEmpty(classArgs) || ObjectUtils.isEmpty(methodArgs)) {
            System.out.println("请提供参数：--class=xxx --method=xxx");
            System.out.println("例如：--class=local.ateng.java.flink.stream.DataStreamGeneratorToKafka --method=run");
            int exitCode = SpringApplication.exit(SpringUtil.getApplicationContext(), () -> 1);
            System.exit(exitCode);
        }
        String className = classArgs.get(0);
        String methodName = methodArgs.get(0);
        System.out.println("运行" + className + "的" + methodName + "方法");
        // 使用反射机制调用指定的类和方法
        Class<?> clazz = Class.forName(className);
        Object instance = applicationContext.getBean(clazz);
        Method method = clazz.getMethod(methodName);
        method.invoke(instance);
    }
}

编辑Flink代码

创建实体类

java

package local.ateng.java.flink.entity;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;
import java.time.LocalDateTime;

/**
 * 用户信息实体类
 * 用于表示系统中的用户信息。
 *
 * @author 孔余
 * @since 2024-01-10 15:51
 */
@Data
@NoArgsConstructor
@AllArgsConstructor
@Builder
public class UserInfoEntity implements Serializable {
    private static final long serialVersionUID = 1L;

    /**
     * 用户ID
     */
    private Long id;

    /**
     * 用户姓名
     */
    private String name;

    /**
     * 用户年龄
     * 注意：这里使用Integer类型，表示年龄是一个整数值。
     */
    private Integer age;

    /**
     * 分数
     */
    private Double score;

    /**
     * 用户生日
     */
    private LocalDateTime birthday;

    /**
     * 用户所在省份
     */
    private String province;

    /**
     * 用户所在城市
     */
    private String city;

    /**
     * 创建时间
     */
    private LocalDateTime createTime;
}

创建生成器函数

创建生成模拟数据的函数

java

package local.ateng.java.flink.function;

import com.github.javafaker.Faker;
import local.ateng.java.flink.entity.UserInfoEntity;
import org.apache.flink.api.connector.source.SourceReaderContext;
import org.apache.flink.connector.datagen.source.GeneratorFunction;

import java.time.LocalDateTime;
import java.time.ZoneId;
import java.util.Locale;

/**
 * 生成器函数
 *
 * @author 孔余
 * @since 2024-02-29 17:07
 */
public class MyGeneratorFunction implements GeneratorFunction {
    // 创建一个Java Faker实例，指定Locale为中文
    private Faker faker;

    // 初始化随机数数据生成器
    @Override
    public void open(SourceReaderContext readerContext) throws Exception {
        faker = new Faker(new Locale("zh-CN"));
    }

    @Override
    public UserInfoEntity map(Object value) throws Exception {
        // 使用 随机数数据生成器 来创建实例
        UserInfoEntity user = UserInfoEntity.builder()
                .id(System.currentTimeMillis())
                .name(faker.name().fullName())
                .birthday(faker.date().birthday().toInstant().atZone(ZoneId.systemDefault()).toLocalDateTime())
                .age(faker.number().numberBetween(0, 100))
                .province(faker.address().state())
                .city(faker.address().cityName())
                .score(faker.number().randomDouble(3, 1, 100))
                .createTime(LocalDateTime.now())
                .build();
        return user;
    }

}

创建环境

java

package local.ateng.java.flink.config;

import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * Flink Env
 *
 * @author 孔余
 * @email 2385569970@qq.com
 * @since 2025-01-22
 */
@Configuration
public class MyFlinkConfig {
    /**
     * 执行环境
     *
     * @return flinkEnv
     */
    @Bean
    public StreamExecutionEnvironment flinkEnv() {
        return StreamExecutionEnvironment.getExecutionEnvironment();
    }

    /**
     * 流式表环境
     *
     * @param env
     * @return flinkTableEnv
     */
    @Bean
    public StreamTableEnvironment flinkTableEnv(StreamExecutionEnvironment env) {
        return StreamTableEnvironment.create(env);
    }

}

创建DataStream任务

java

package local.ateng.java.flink.stream;

import cn.hutool.extra.spring.SpringUtil;
import com.alibaba.fastjson2.JSONObject;
import local.ateng.java.flink.entity.UserInfoEntity;
import local.ateng.java.flink.function.MyGeneratorFunction;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.api.connector.source.util.ratelimit.RateLimiterStrategy;
import org.apache.flink.connector.base.DeliveryGuarantee;
import org.apache.flink.connector.datagen.source.DataGeneratorSource;
import org.apache.flink.connector.kafka.sink.KafkaRecordSerializationSchema;
import org.apache.flink.connector.kafka.sink.KafkaSink;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.springframework.stereotype.Component;

/**
 * DataStream：生成模拟数据并写入Kafka
 *
 * @author 孔余
 * @email 2385569970@qq.com
 * @since 2025-01-22
 */
@Component
public class DataStreamGeneratorToKafka {

    public void run() throws Exception {
        // 获取执行环境
        StreamExecutionEnvironment env = SpringUtil.getBean("flinkEnv", StreamExecutionEnvironment.class);
        // 启用检查点，设置检查点间隔为 5 秒，检查点模式为 精准一次
        env.enableCheckpointing(5 * 1000, CheckpointingMode.EXACTLY_ONCE);
        // 设置并行度为 3
        env.setParallelism(3);

        // 创建 DataGeneratorSource 生成模拟数据
        DataGeneratorSource<UserInfoEntity> source = new DataGeneratorSource<>(
                new MyGeneratorFunction(), // 自定义的生成器函数
                Long.MAX_VALUE, // 生成数据的数量
                RateLimiterStrategy.perSecond(10), // 生成数据的速率限制
                TypeInformation.of(UserInfoEntity.class) // 数据类型信息
        );

        // 将生成的 UserInfoEntity 对象转换为 JSON 字符串
        SingleOutputStreamOperator<String> stream = env
                .fromSource(source, WatermarkStrategy.noWatermarks(), "Generator Source")
                .map(user -> JSONObject.toJSONString(user));

        // 配置 KafkaSink 将数据发送到 Kafka 中
        KafkaSink<String> sink = KafkaSink.<String>builder()
                .setBootstrapServers("192.168.1.10:9094") // Kafka 服务器地址和端口
                .setRecordSerializer(KafkaRecordSerializationSchema.builder()
                        .setTopic("ateng_flink_json") // Kafka 主题
                        .setValueSerializationSchema(new SimpleStringSchema()) // 数据序列化方式
                        .build()
                )
                .setDeliveryGuarantee(DeliveryGuarantee.AT_LEAST_ONCE) // 传输保障级别
                .build();

        // 将数据发送到 Kafka
        stream.sinkTo(sink);

        // 执行程序
        env.execute("生成模拟数据并写入Kafka");
    }

}

创建SQL任务

package local.ateng.java.flink.sql;

import cn.hutool.extra.spring.SpringUtil;
import local.ateng.java.flink.entity.UserInfoEntity;
import local.ateng.java.flink.function.MyGeneratorFunction;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.api.connector.source.util.ratelimit.RateLimiterStrategy;
import org.apache.flink.connector.datagen.source.DataGeneratorSource;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.DataTypes;
import org.apache.flink.table.api.Schema;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.TableResult;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.springframework.stereotype.Component;

/**
 * SQL：生成模拟数据并写入Kafka
 *
 * @author 孔余
 * @email 2385569970@qq.com
 * @since 2025-01-22
 */
@Component
public class SQLGeneratorToKafka {

    public void run() throws Exception {
        // 获取执行环境
        StreamExecutionEnvironment env = SpringUtil.getBean("flinkEnv", StreamExecutionEnvironment.class);
        StreamTableEnvironment tableEnv = SpringUtil.getBean("flinkTableEnv", StreamTableEnvironment.class);
        // 启用检查点，设置检查点间隔为 5 秒，检查点模式为 精准一次
        env.enableCheckpointing(5 * 1000, CheckpointingMode.EXACTLY_ONCE);
        // 设置并行度为 3
        env.setParallelism(3);
        // 设置 JobName
        tableEnv.getConfig().set("pipeline.name", "生成模拟数据并写入Kafka");

        // 创建数据生成器源，生成器函数为 MyGeneratorFunction，生成 Long.MAX_VALUE 条数据，速率限制为 3 条/秒
        DataGeneratorSource<UserInfoEntity> source = new DataGeneratorSource<>(
                new MyGeneratorFunction(),
                Long.MAX_VALUE,
                RateLimiterStrategy.perSecond(3),
                TypeInformation.of(UserInfoEntity.class)
        );
        // 将数据生成器源添加到流中
        DataStreamSource<UserInfoEntity> stream =
                env.fromSource(source,
                        WatermarkStrategy.noWatermarks(),
                        "Generator Source");

        // 将 DataStream 注册为动态表
        tableEnv.createTemporaryView("my_user", stream,
                Schema.newBuilder()
                        .column("id", DataTypes.BIGINT())
                        .column("name", DataTypes.STRING())
                        .column("age", DataTypes.INT())
                        .column("score", DataTypes.DOUBLE())
                        .column("birthday", DataTypes.TIMESTAMP(3))
                        .column("province", DataTypes.STRING())
                        .column("city", DataTypes.STRING())
                        .column("createTime", DataTypes.TIMESTAMP(3))
                        .build());

        // 创建表
        String createSql = "CREATE TABLE my_user_kafka( \n" +
                "  my_event_time TIMESTAMP(3) METADATA FROM 'timestamp' VIRTUAL,\n" +
                "  my_partition BIGINT METADATA FROM 'partition' VIRTUAL,\n" +
                "  my_offset BIGINT METADATA FROM 'offset' VIRTUAL,\n" +
                "  id BIGINT NOT NULL,\n" +
                "  name STRING,\n" +
                "  age INT,\n" +
                "  score DOUBLE,\n" +
                "  birthday TIMESTAMP(3),\n" +
                "  province STRING,\n" +
                "  city STRING,\n" +
                "  createTime TIMESTAMP(3)\n" +
                ")\n" +
                "WITH (\n" +
                "  'connector' = 'kafka',\n" +
                "  'properties.bootstrap.servers' = '192.168.1.10:9094',\n" +
                "  'properties.group.id' = 'ateng_sql',\n" +
                "  -- 'earliest-offset', 'latest-offset', 'group-offsets', 'timestamp' and 'specific-offsets'\n" +
                "  'scan.startup.mode' = 'latest-offset',\n" +
                "  'topic' = 'ateng_flink_json_2',\n" +
                "  'format' = 'json'\n" +
                ");";
        tableEnv.executeSql(createSql);

        // 写入数据到目标表
        String insertSql = "insert into my_user_kafka select * from my_user;";
        tableEnv.executeSql(insertSql);

    }
}

运行任务

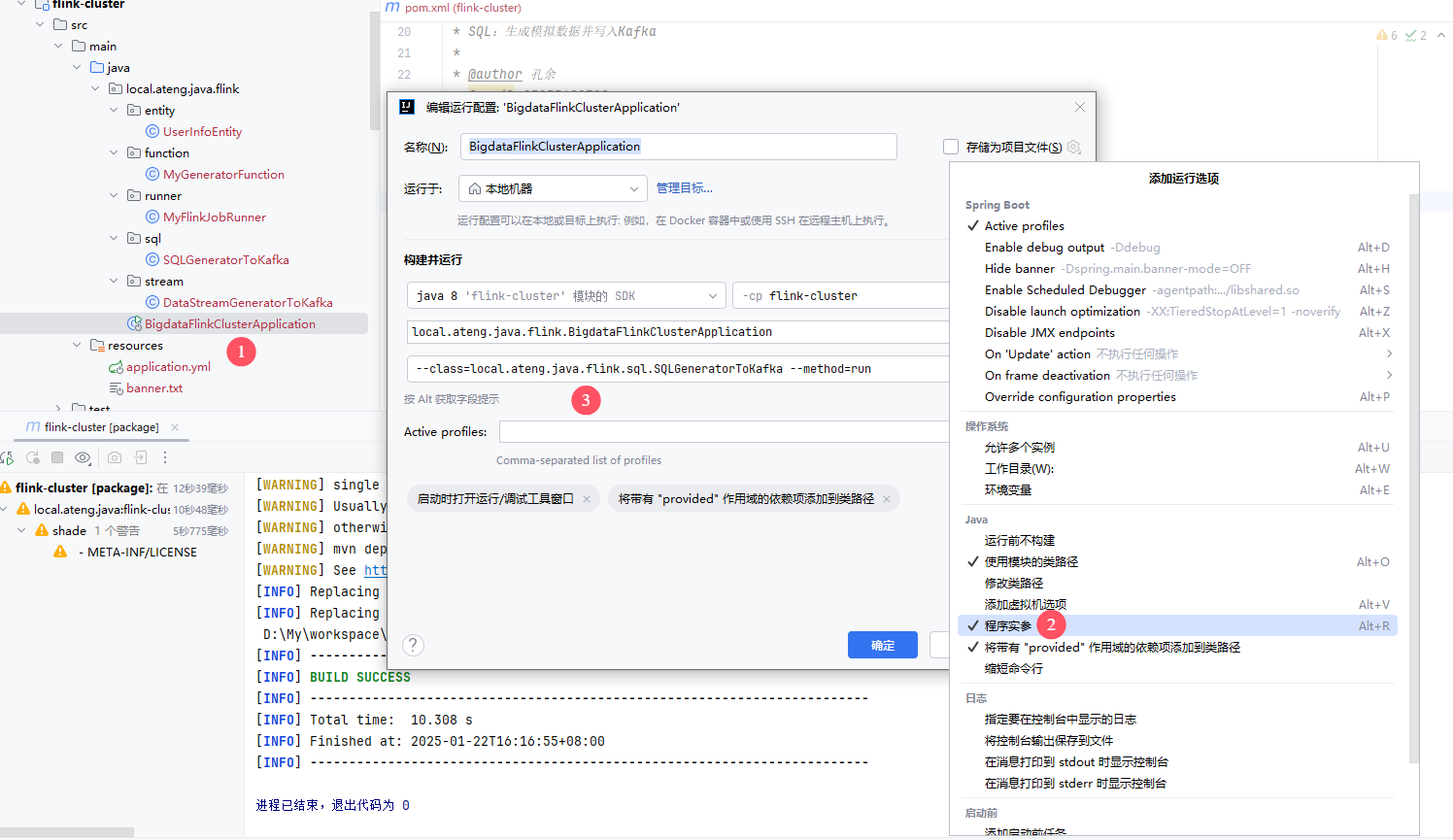

IDEA运行

配置参数，运行指定的类和方法

java

--class=local.ateng.java.flink.sql.SQLGeneratorToKafka --method=run

打包Jar

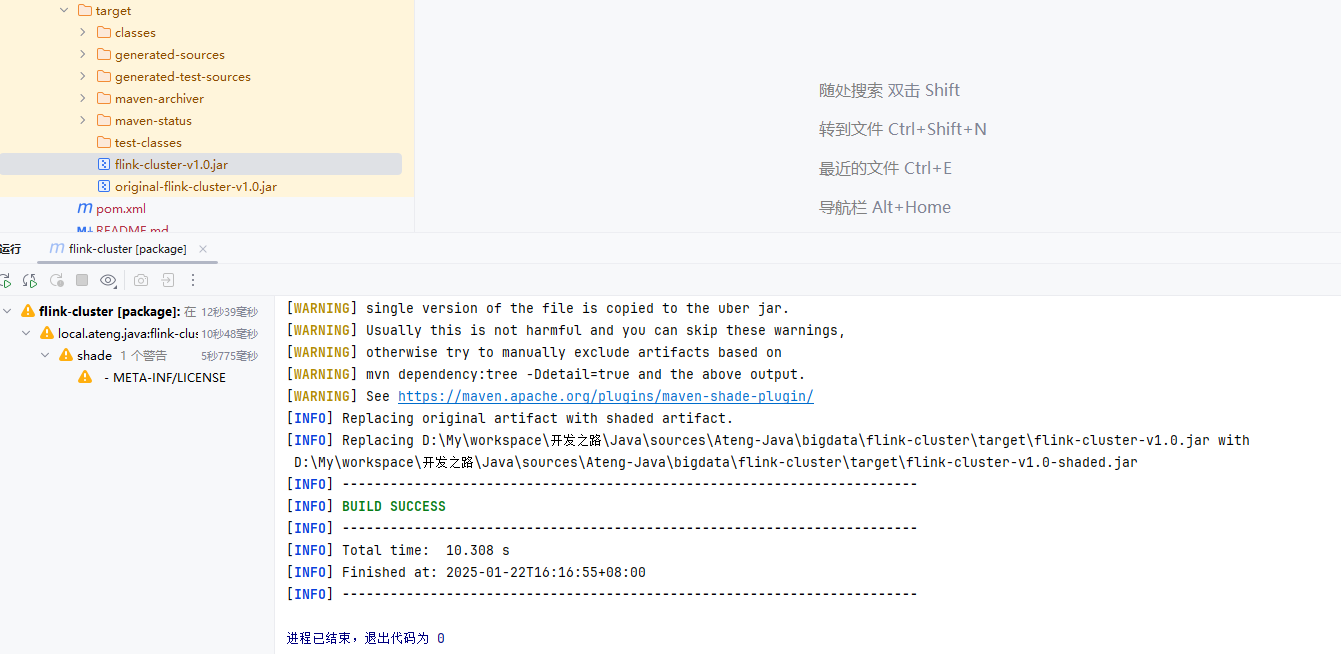

通过Maven将代码打包成Jar，如下图所示

Flink Standalone

部署集群参考：安装Flink集群

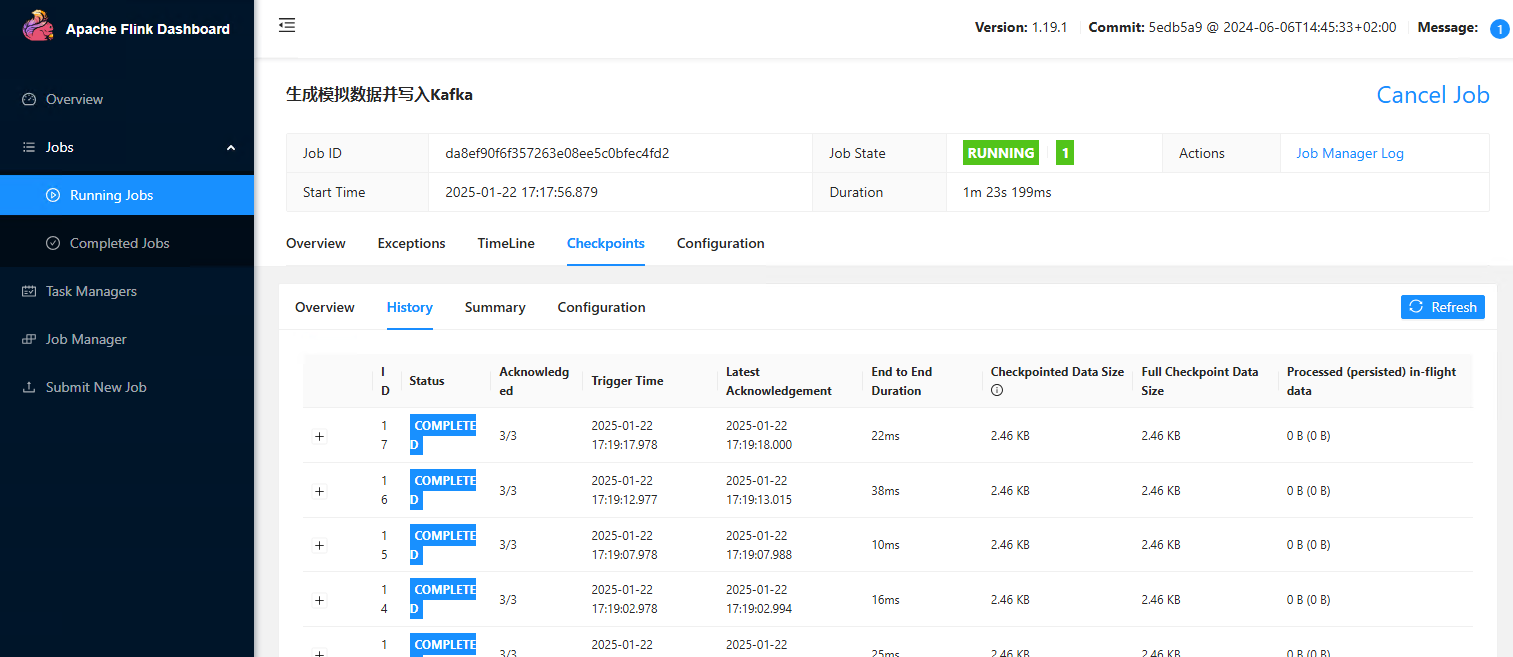

将Jar包运行在Flink Standalone集群上，这里以运行Sink数据到Kafka为示例。

提交任务到集群

不填写其他参数默认就是使用 $FLINK_HOME/conf/config.yaml 配置文件中的参数。

flink run -d \
    flink-cluster-v1.0.jar \
    --class=local.ateng.java.flink.sql.SQLGeneratorToKafka \
    --method=run

自定义参数

如果代码内部设置了parallelism，以代码内部的为准。

flink run -d \
    -m bigdata01:8082 \
    -p 3 \
    flink-cluster-v1.0.jar \
    --class=local.ateng.java.flink.sql.SQLGeneratorToKafka \
    --method=run

参数配置

-m <jobmanager>：指定 JobManager 的地址，通常以 host:port 形式给出。例如：-m localhost:8081。
-p <parallelism>：设置全局并行度。例如：-p 4 表示每个操作符并行度为 4。
-s <savepointPath>：从某个 savepoint 恢复程序的状态。用于恢复上次程序执行时的状态。
-d：后台运行 Flink 作业。
-c: 指定主类。

YARN

部署集群参考：安装配置Flink On YARN

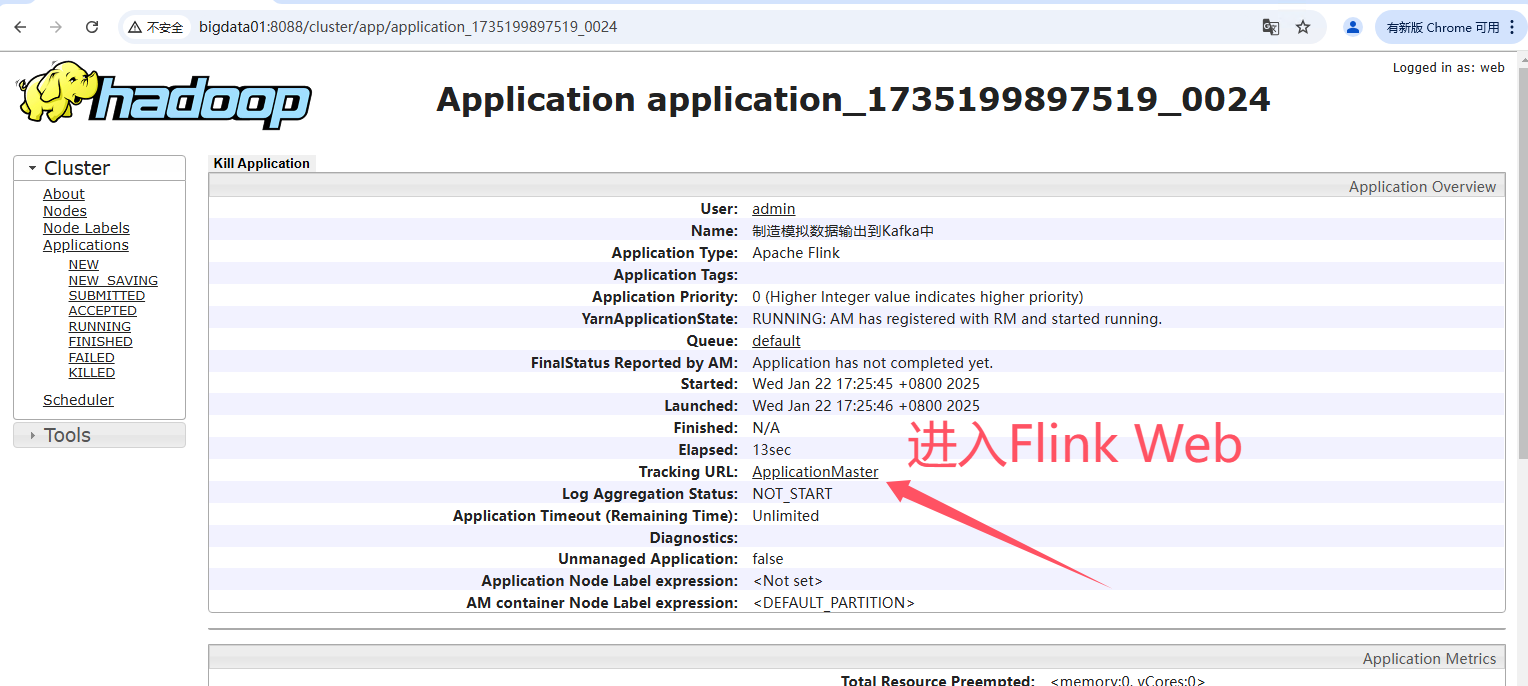

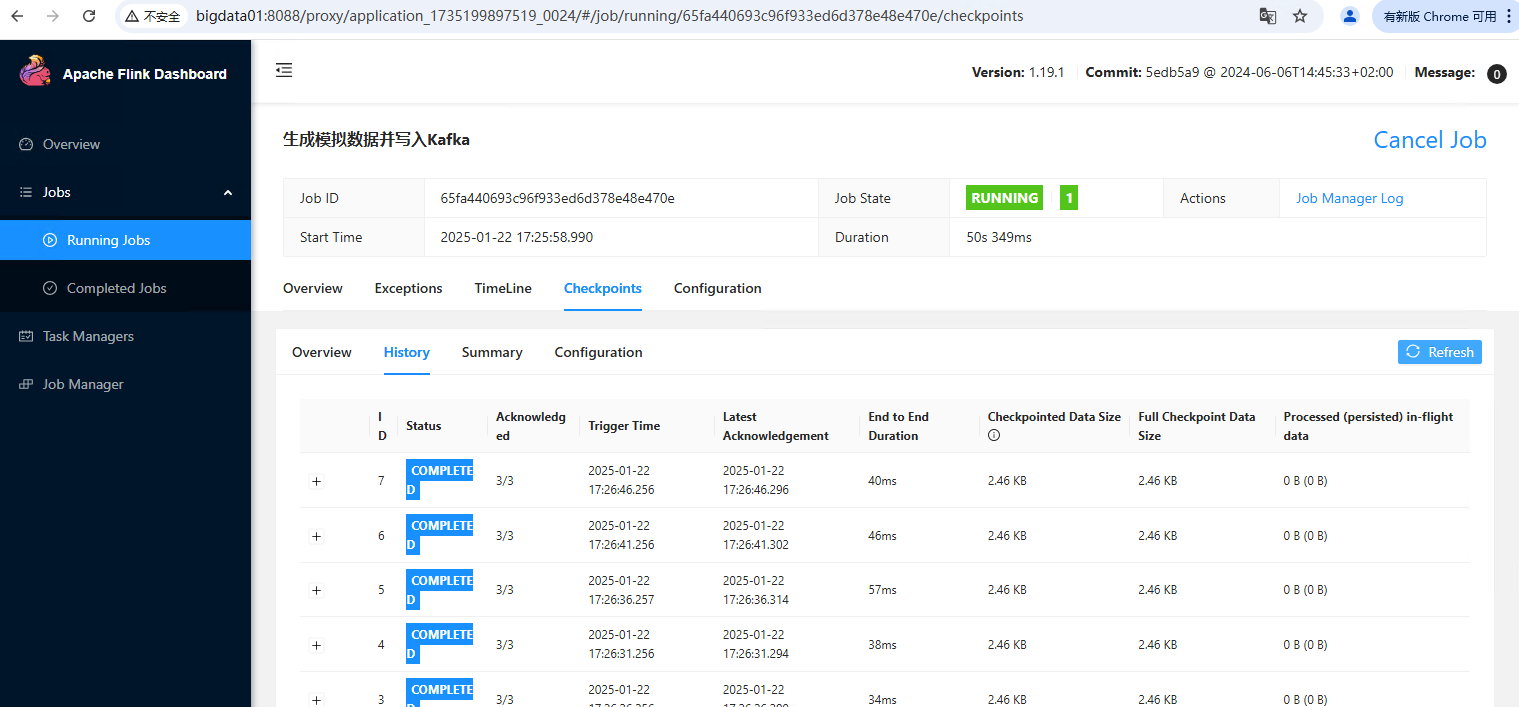

将Jar包运行在YARN集群上，这里以运行Sink数据到Kafka为示例。

提交任务到集群

不填写其他参数默认就是使用 $FLINK_HOME/conf/config.yaml 配置文件中的参数。

flink run-application -t yarn-application \
    flink-cluster-v1.0.jar \
    --class=local.ateng.java.flink.sql.SQLGeneratorToKafka \
    --method=run

自定义参数

如果代码内部设置了parallelism，以代码内部的为准。

flink run-application -t yarn-application \
    -Dparallelism.default=3 \
    -Dtaskmanager.numberOfTaskSlots=3 \
    -Djobmanager.memory.process.size=1GB \
    -Dtaskmanager.memory.process.size=2GB \
    -Dyarn.application.name="制造模拟数据输出到Kafka中" \
    flink-cluster-v1.0.jar \
    --class=local.ateng.java.flink.sql.SQLGeneratorToKafka \
    --method=run

参数配置

-t yarn-application：指定 Flink 作业运行在 YARN Application 模式下
-Dparallelism.default：设置作业的默认并行度
-Dtaskmanager.numberOfTaskSlots：设置每个 TaskManager 的 slot 数量
-Djobmanager.memory.process.size：为 JobManager 设置内存大小
-Dtaskmanager.memory.process.size：为 TaskManager 设置内存大小
-Dyarn.application.name：设置 Flink 作业在 YARN 上的应用程序名称
-c ：指定作业的主类

Java

将Flink相关的依赖的作用域都设置为compile（默认），最后打包

bash

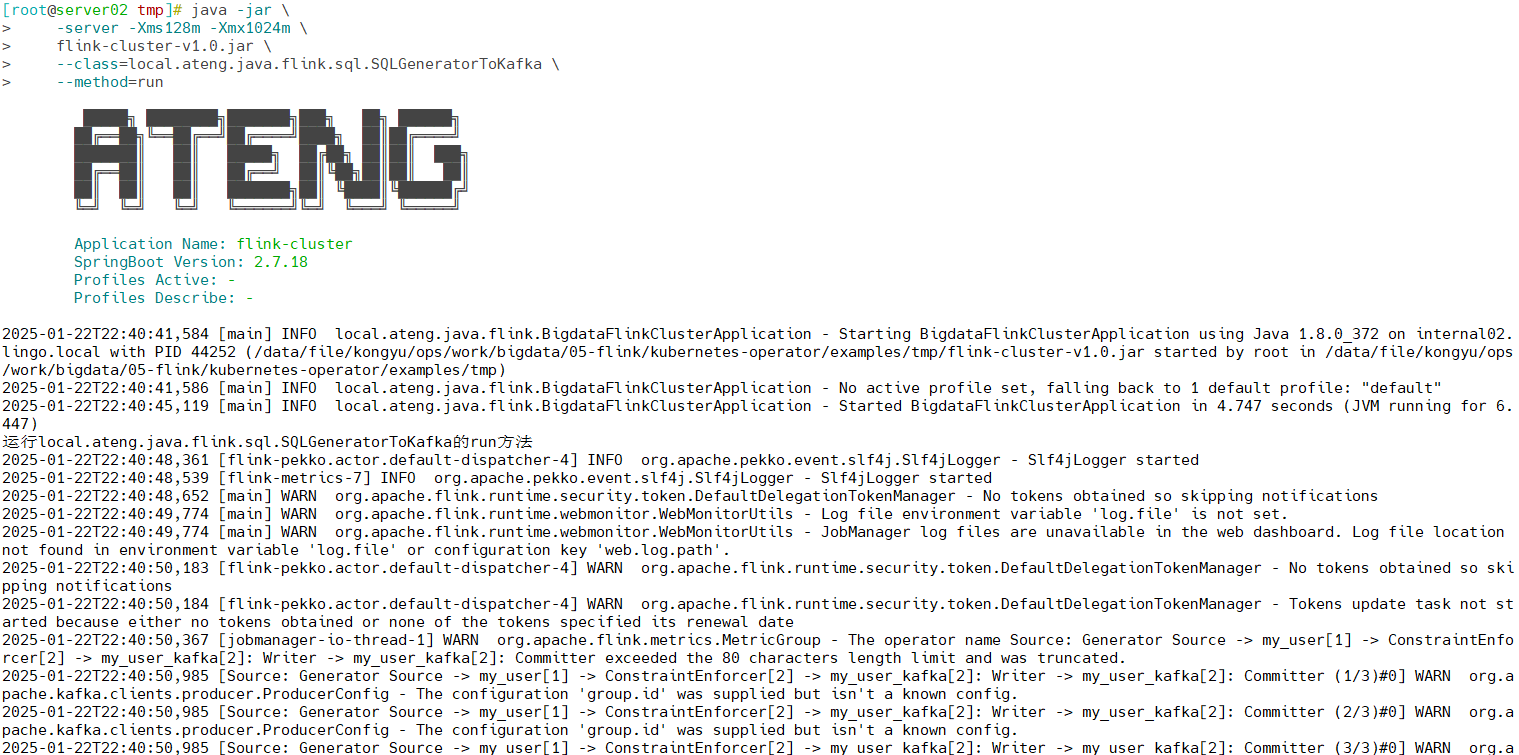

java -jar \
    -server -Xms128m -Xmx1024m \
    flink-cluster-v1.0.jar \
    --class=local.ateng.java.flink.sql.SQLGeneratorToKafka \
    --method=run

Kubernetes

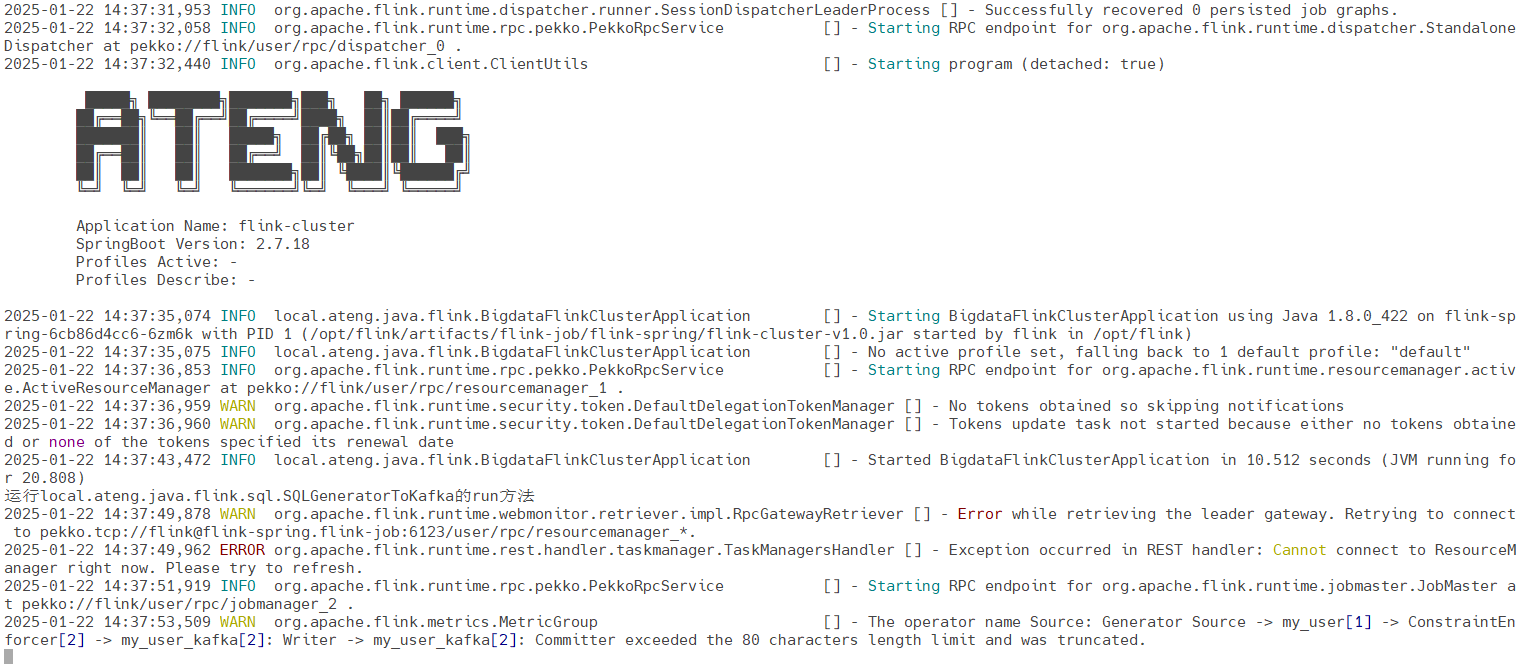

使用 flink-kubernetes-operator 运行任务，详情参考：Flink Operator

将任务需要的依赖作用域设置为compile，例如我这里是需要用到Kafka Connector，pom.xml的依赖配置如下

xml

<!-- Apache Flink 连接器基础库库 -->
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-connector-base</artifactId>
    <version>${flink.version}</version>
    <scope>compile</scope>
</dependency>
<!-- Apache Flink Kafka 连接器库 -->
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-connector-kafka</artifactId>
    <version>${flink-kafka.version}</version>
    <scope>compile</scope>
</dependency>

最小化的yaml

yaml

apiVersion: flink.apache.org/v1beta1
kind: FlinkDeployment
metadata:
  name: flink-spring
  namespace: ateng-flink
spec:
  image: registry.lingo.local/service/flink:1.19-java8
  flinkVersion: v1_19
  flinkConfiguration:
    taskmanager.numberOfTaskSlots: "3"
    user.artifacts.raw-http-enabled: "true"
  serviceAccount: flink
  jobManager:
    replicas: 1
    resource:
      memory: "1g"
      cpu: 1
  taskManager:
    resource:
      memory: "2g"
      cpu: 1
  job:
    jarURI: http://192.168.1.12:9000/test/flink/flink-cluster-v1.0.jar
    args:
      - --class=local.ateng.java.flink.sql.SQLGeneratorToKafka
      - --method=run
    parallelism: 3

Flink on SpringBoot ​

基础配置 ​

服务版本 ​

配置pom.xml ​

编辑应用配置文件 ​

创建日志配置文件 ​

创建Runner ​

编辑Flink代码 ​

创建实体类 ​

创建生成器函数 ​

创建环境 ​

创建DataStream任务 ​

创建SQL任务 ​

运行任务 ​

IDEA运行 ​

打包Jar ​

Flink Standalone ​

YARN ​

Java ​

Kubernetes ​

Flink on SpringBoot

基础配置

服务版本

配置pom.xml

编辑应用配置文件

创建日志配置文件

创建Runner

编辑Flink代码

创建实体类

创建生成器函数

创建环境

创建DataStream任务

创建SQL任务

运行任务

IDEA运行

打包Jar

Flink Standalone

YARN

Java

Kubernetes
