Monaco Editor

基于浏览器的代码编辑器

官网地址

基础配置

安装依赖

pnpm add monaco-editor@0.55.1

配置 vite.config.ts

import { defineConfig } from 'vite';
import vue from '@vitejs/plugin-vue';
import path from 'path';

export default defineConfig({
    plugins: [
        vue()
    ],
    resolve: {
        alias: {
            '@': path.resolve(__dirname, 'src'),
        }
    },
    worker: {
        format: 'es'
    },
    optimizeDeps: {
        include: ['monaco-editor']
    },
    build: {
        rollupOptions: {
            output: {
                manualChunks: {
                    monaco: ['monaco-editor']
                }
            }
        }
    }
});

配置 Worker 映射

在 src/monaco-worker.ts 新建一个文件：

// src/monaco-worker.ts
import editorWorker from 'monaco-editor/esm/vs/editor/editor.worker?worker'
import jsonWorker from 'monaco-editor/esm/vs/language/json/json.worker?worker'
import cssWorker from 'monaco-editor/esm/vs/language/css/css.worker?worker'
import htmlWorker from 'monaco-editor/esm/vs/language/html/html.worker?worker'
import tsWorker from 'monaco-editor/esm/vs/language/typescript/ts.worker?worker'

self.MonacoEnvironment = {
  getWorker(_: string, label: string) {
    if (label === 'json') return new jsonWorker()
    if (label === 'css') return new cssWorker()
    if (label === 'html') return new htmlWorker()
    if (label === 'typescript' || label === 'javascript') return new tsWorker()
    return new editorWorker()
  }
}

main.ts 添加加

import './monaco-worker'

创建 Editor 组件

src/components/CodeEditor.vue

vue

<template>
  <div class="monaco-container" ref="containerRef"></div>
</template>

<script setup lang="ts">
import { ref, onMounted, onBeforeUnmount, watch } from 'vue'
import * as monaco from 'monaco-editor'

// ======================================
// Props
// ======================================
interface Props {
  mode?: 'normal' | 'diff'
  modelValue?: string          // normal 或 diff 新内容
  original?: string            // diff 原始内容
  language?: MonacoLang
  theme?: MonacoTheme
  readOnly?: boolean
  lineNumbers?: 'on' | 'off'
  minimap?: boolean
}

type MonacoLang = 'typescript' | 'javascript' | 'json' | 'html' | 'css'
type MonacoTheme = 'vs' | 'vs-dark' | 'hc-black'

const props = withDefaults(defineProps<Props>(), {
  mode: 'normal',
  modelValue: '',
  original: '',
  language: 'typescript',
  theme: 'vs-dark',
  readOnly: false,
  lineNumbers: 'on',
  minimap: true
})

const emits = defineEmits<{
  (e: 'update:modelValue', value: string): void
  (e: 'ready', editor: monaco.editor.IStandaloneCodeEditor | monaco.editor.IStandaloneDiffEditor): void
}>()

// ======================================
// State
// ======================================
const containerRef = ref<HTMLElement | null>(null)

let editor: monaco.editor.IStandaloneCodeEditor | null = null
let diffEditor: monaco.editor.IStandaloneDiffEditor | null = null
let originalModel: monaco.editor.ITextModel | null = null
let modifiedModel: monaco.editor.ITextModel | null = null
let resizeObserver: ResizeObserver | null = null

// ======================================
// Init
// ======================================
onMounted(() => {
  if (!containerRef.value) return

  if (props.mode === 'diff') {
    // ---------- diff 模式 ----------
    originalModel = monaco.editor.createModel(props.original, props.language)
    modifiedModel = monaco.editor.createModel(props.modelValue, props.language)

    diffEditor = monaco.editor.createDiffEditor(containerRef.value, {
      theme: props.theme,
      readOnly: props.readOnly,
      renderSideBySide: true,
      automaticLayout: false,
      smoothScrolling: true,
      lineNumbers: props.lineNumbers,
      minimap: { enabled: props.minimap },
      scrollBeyondLastLine: false,
    })

    diffEditor.setModel({
      original: originalModel,
      modified: modifiedModel
    })

    /** diff 模式只关注 modified 内容 */
    modifiedModel.onDidChangeContent(() => {
      const val = modifiedModel!.getValue()
      if (val !== props.modelValue) emits('update:modelValue', val)
    })

    emits('ready', diffEditor)
  } else {
    // ---------- normal 模式 ----------
    editor = monaco.editor.create(containerRef.value, {
      value: props.modelValue,
      language: props.language,
      theme: props.theme,
      readOnly: props.readOnly,
      lineNumbers: props.lineNumbers,
      minimap: { enabled: props.minimap },
      automaticLayout: false,
      scrollBeyondLastLine: false,
      smoothScrolling: true,
      renderLineHighlight: 'line',
    })

    editor.onDidChangeModelContent(() => {
      const val = editor!.getValue()
      if (val !== props.modelValue) {
        emits('update:modelValue', val)
      }
    })

    emits('ready', editor)
  }

  // ---------- 外部更新 modelValue ----------
  watch(
      () => props.modelValue,
      (val) => {
        if (props.mode === 'diff') {
          if (modifiedModel && modifiedModel.getValue() !== val) {
            modifiedModel.setValue(val || '')
          }
        } else if (editor && editor.getValue() !== val) {
          editor.setValue(val || '')
        }
      }
  )

  // ---------- 外部更新 original（仅 diff） ----------
  watch(
      () => props.original,
      (val) => {
        if (props.mode === 'diff' && originalModel && originalModel.getValue() !== val) {
          originalModel.setValue(val || '')
        }
      }
  )

  // ---------- 语言切换 ----------
  watch(
      () => props.language,
      lang => {
        if (props.mode === 'diff') {
          originalModel && monaco.editor.setModelLanguage(originalModel, lang)
          modifiedModel && monaco.editor.setModelLanguage(modifiedModel, lang)
        } else {
          const model = editor?.getModel()
          model && monaco.editor.setModelLanguage(model, lang)
        }
      }
  )

  // ---------- 主题切换 ----------
  watch(
      () => props.theme,
      theme => monaco.editor.setTheme(theme)
  )

  // ---------- ResizeObserver（生产推荐） ----------
  resizeObserver = new ResizeObserver(() => {
    editor?.layout()
    diffEditor?.layout()
  })
  resizeObserver.observe(containerRef.value)
})

// ======================================
// Dispose
// ======================================
onBeforeUnmount(() => {
  resizeObserver?.disconnect()

  if (editor) {
    const model = editor.getModel()
    editor.dispose()
    model?.dispose()
  }

  if (diffEditor) {
    diffEditor.dispose()
    originalModel?.dispose()
    modifiedModel?.dispose()
  }
})
</script>

<style scoped>
.monaco-container {
  width: 100%;
  height: 100%;
  min-height: 300px;
  border-radius: 6px;
  overflow: hidden;
  border: 1px solid #2a2a2a;
}
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193

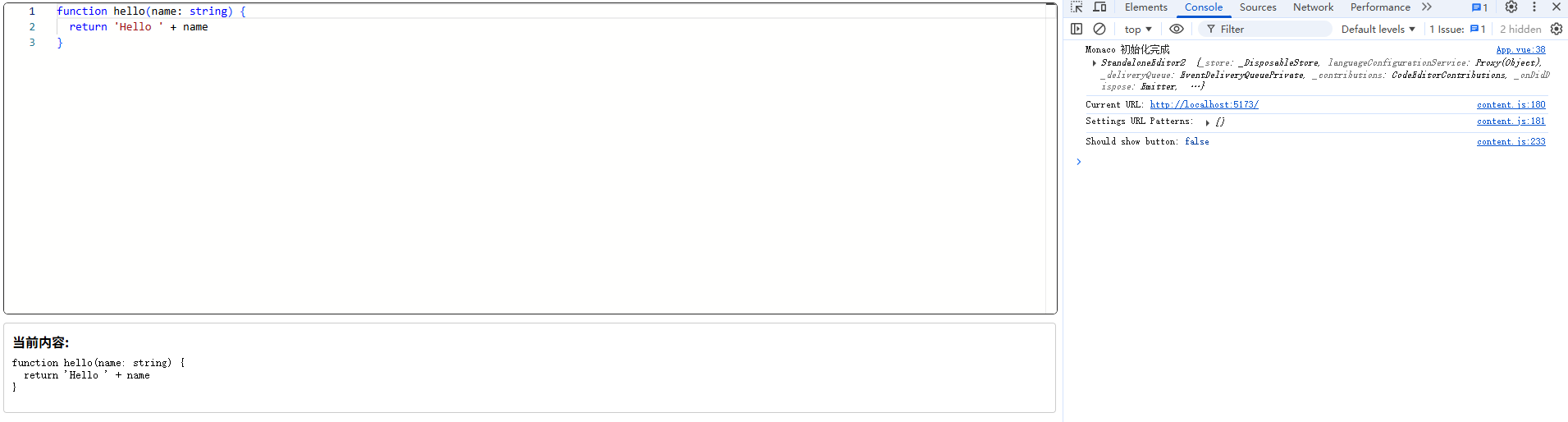

编辑器示例

vue

<template>
  <div style="height: 500px; display: flex; flex-direction: column; gap: 12px;">

    <!-- 编辑器区域 -->
    <div style="flex: 1; min-height: 300px;">
      <CodeEditor
          v-model="code"
          language="typescript"
          theme="vs"
          :read-only="false"
          line-numbers="on"
          :minimap="false"
          @ready="onEditorReady"
      />
    </div>

    <!-- 输出区 -->
    <div style="border: 1px solid #ccc; border-radius: 4px; padding: 10px; white-space: pre-wrap;">
      <strong>当前内容:</strong>
      <pre style="margin-top: 6px;">{{ code }}</pre>
    </div>

  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import CodeEditor from '@/components/CodeEditor.vue'
import * as monaco from 'monaco-editor'

const code = ref(`function hello(name: string) {
  return 'Hello ' + name
}`)

function onEditorReady(
    editor: monaco.editor.IStandaloneCodeEditor | monaco.editor.IStandaloneDiffEditor
) {
  console.log('Monaco 初始化完成', editor)
}

</script>

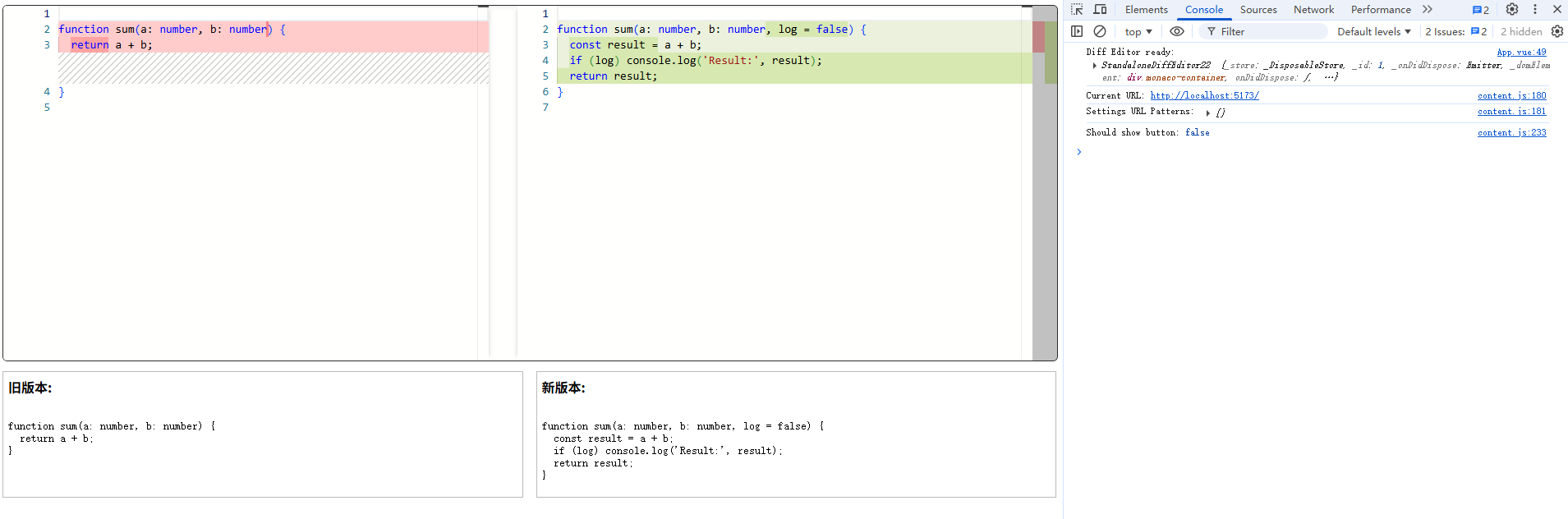

Diff编辑器示例

vue

<template>
  <div style="height: 600px; display: flex; flex-direction: column; gap: 12px;">

    <!-- Diff Editor -->
    <CodeEditor
        mode="diff"
        :original="oldCode"
        v-model="newCode"
        language="typescript"
        theme="vs"
        @ready="onDiffReady"
    />

    <!-- 输出部分用来展示两份文本 -->
    <div style="display: flex; gap: 16px;">
      <div style="flex: 1; border:1px solid #bbb; padding: 6px; white-space: pre-wrap;">
        <strong>旧版本:</strong>
        <pre>{{ oldCode }}</pre>
      </div>
      <div style="flex: 1; border:1px solid #bbb; padding: 6px; white-space: pre-wrap;">
        <strong>新版本:</strong>
        <pre>{{ newCode }}</pre>
      </div>
    </div>

  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import CodeEditor from '@/components/CodeEditor.vue'
import * as monaco from 'monaco-editor'

const oldCode = ref(`
function sum(a: number, b: number) {
  return a + b;
}
`)

const newCode = ref(`
function sum(a: number, b: number, log = false) {
  const result = a + b;
  if (log) console.log('Result:', result);
  return result;
}
`)

function onDiffReady(editor: monaco.editor.IStandaloneCodeEditor | monaco.editor.IStandaloneDiffEditor) {
  console.log('Diff Editor ready:', editor)
}
</script>
