Vue3 Signature

一个流畅优雅的 Vue 3 电子签名组件

基于 signature_pad - 最流行的 HTML5 Canvas 签名库

官网地址

基础配置

安装依赖

pnpm add vue3-signature@0.4.4 signature_pad@5.1.3

全局注册组件

import { createApp } from 'vue'
import App from './App.vue'
import Vue3Signature from "vue3-signature";

const app = createApp(App);

app.use(Vue3Signature);

app.mount('#app')

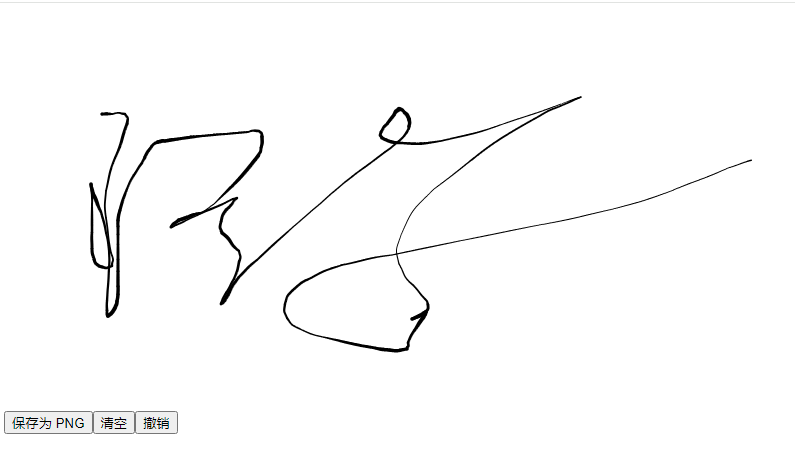

最简示例

vue

<template>
  <div>
    <Vue3Signature
        ref="signature"
        :sigOption="options"
        w="800px"
        h="400px"
    />

    <div class="buttons">
      <button @click="save">保存为 PNG</button>
      <button @click="clear">清空</button>
      <button @click="undo">撤销</button>
    </div>
  </div>
</template>

<script setup lang="ts">
import { ref, reactive } from 'vue'
import type { Options as SignaturePadOptions } from 'signature_pad'

/**
 * Vue3Signature 暴露的实例能力（与官方文档保持一致的子集）
 * 注意：这是“消费方最小可信接口”，不是重写库类型
 */
interface Vue3SignatureInstance {
  save: (format?: string, encoderOptions?: number) => string
  clear: () => void
  undo: (steps?: number) => void
  isEmpty: () => boolean
}

/**
 * 组件 ref
 */
const signature = ref<Vue3SignatureInstance | null>(null)

/**
 * 签名板配置
 * 完全对齐 signature_pad Options
 */
const options = reactive<SignaturePadOptions>({
  penColor: 'rgb(0, 0, 0)',
  backgroundColor: 'rgb(255, 255, 255)',
})

/**
 * 保存为 PNG（默认）
 */
const save = (): void => {
  if (!signature.value) {
    return
  }

  if (signature.value.isEmpty()) {
    console.warn('签名为空')
    return
  }

  const png: string = signature.value.save()
  console.log(png)
}

/**
 * 清空画布
 */
const clear = (): void => {
  signature.value?.clear()
}

/**
 * 撤销一步
 */
const undo = (): void => {
  signature.value?.undo()
}
</script>

使用组合式函数

创建组合式函数

src/composables/useSignaturePad.ts

import { ref } from 'vue'
import type SignaturePad from 'signature_pad'
import type {
    PointGroup,
    FromDataOptions,
    FromDataUrlOptions,
    ToSVGOptions,
} from 'signature_pad'

/* ===================== 官方能力类型 ===================== */

export interface WaterMarkOption {
    text?: string
    font?: string
    style?: 'all' | 'stroke' | 'fill'
    fillStyle?: string
    strokeStyle?: string
    x?: number
    y?: number
    sx?: number
    sy?: number
}

export interface TrimResult {
    canvas: HTMLCanvasElement
    dataUrl: string
    bounds: { x: number; y: number; width: number; height: number }
}

export interface TrimOptions {
    format?: string
    encoderOptions?: number
    backgroundColor?: string
}

/**
 * Vue3Signature 对外暴露的实例（官方 README 能力全集）
 */
export interface Vue3SignatureInstance {
    save(format?: string, encoderOptions?: number): string
    toDataURL(format?: string, encoderOptions?: number): string
    toSVG(options?: ToSVGOptions): string
    clear(): void
    redraw(): void
    isEmpty(): boolean
    undo(steps?: number): void
    toData(): PointGroup[]
    fromData(data: PointGroup[], options?: FromDataOptions): void
    fromDataURL(url: string, options?: FromDataUrlOptions): Promise<void>
    addWaterMark(options: WaterMarkOption): void
    trim(options?: TrimOptions): TrimResult | null
    toTrimmedDataURL(format?: string, encoderOptions?: number): string
    enable(): void
    disable(): void
    addEventListener(
        type: string,
        listener: EventListenerOrEventListenerObject,
    ): void
    removeEventListener(
        type: string,
        listener: EventListenerOrEventListenerObject,
    ): void
    getInstance(): SignaturePad | undefined
}

/* ===================== 组合式函数 ===================== */

export function useSignaturePad() {
    const signatureRef = ref<Vue3SignatureInstance | null>(null)

    /* ---------- 基础控制 ---------- */

    const clear = (): void => {
        signatureRef.value?.clear()
    }

    const undo = (steps = 1): void => {
        signatureRef.value?.undo(steps)
    }

    const isEmpty = (): boolean => {
        return signatureRef.value?.isEmpty() ?? true
    }

    const enable = (): void => {
        signatureRef.value?.enable()
    }

    const disable = (): void => {
        signatureRef.value?.disable()
    }

    /* ---------- 导出 ---------- */

    const savePNG = (): string | null => {
        if (!signatureRef.value || isEmpty()) {
            return null
        }
        return signatureRef.value.save()
    }

    const saveJPEG = (quality = 0.92): string | null => {
        if (!signatureRef.value || isEmpty()) {
            return null
        }
        return signatureRef.value.save('image/jpeg', quality)
    }

    const saveSVG = (): string | null => {
        if (!signatureRef.value || isEmpty()) {
            return null
        }
        return signatureRef.value.save('image/svg+xml')
    }

    const downloadPNG = (filename = 'signature.png'): void => {
        const dataUrl = savePNG()
        if (!dataUrl) {
            return
        }

        const link = document.createElement('a')
        link.href = dataUrl
        link.download = filename
        link.click()
    }

    const saveTrimmed = (
        format = 'image/png',
        encoderOptions?: number,
    ): string | null => {
        if (!signatureRef.value || isEmpty()) {
            return null
        }
        return signatureRef.value.toTrimmedDataURL(format, encoderOptions)
    }

    /* ---------- 数据导入 / 导出 ---------- */

    const toData = (): PointGroup[] => {
        return signatureRef.value?.toData() ?? []
    }

    const fromData = (
        data: PointGroup[],
        options?: FromDataOptions,
    ): void => {
        signatureRef.value?.fromData(data, options)
    }

    const fromDataURL = async (
        url: string,
        options?: FromDataUrlOptions,
    ): Promise<void> => {
        if (!signatureRef.value) {
            return
        }
        await signatureRef.value.fromDataURL(url, options)
    }

    /* ---------- 水印 / 裁剪 ---------- */

    const addWaterMark = (options: WaterMarkOption): void => {
        signatureRef.value?.addWaterMark(options)
    }

    const trim = (options?: TrimOptions): TrimResult | null => {
        return signatureRef.value?.trim(options) ?? null
    }

    /* ---------- 底层实例 ---------- */

    const getInstance = (): SignaturePad | undefined => {
        return signatureRef.value?.getInstance()
    }

    return {
        signatureRef,

        clear,
        undo,
        isEmpty,
        enable,
        disable,

        savePNG,
        saveJPEG,
        saveSVG,
        saveTrimmed,

        downloadPNG,

        toData,
        fromData,
        fromDataURL,

        addWaterMark,
        trim,

        getInstance,
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202

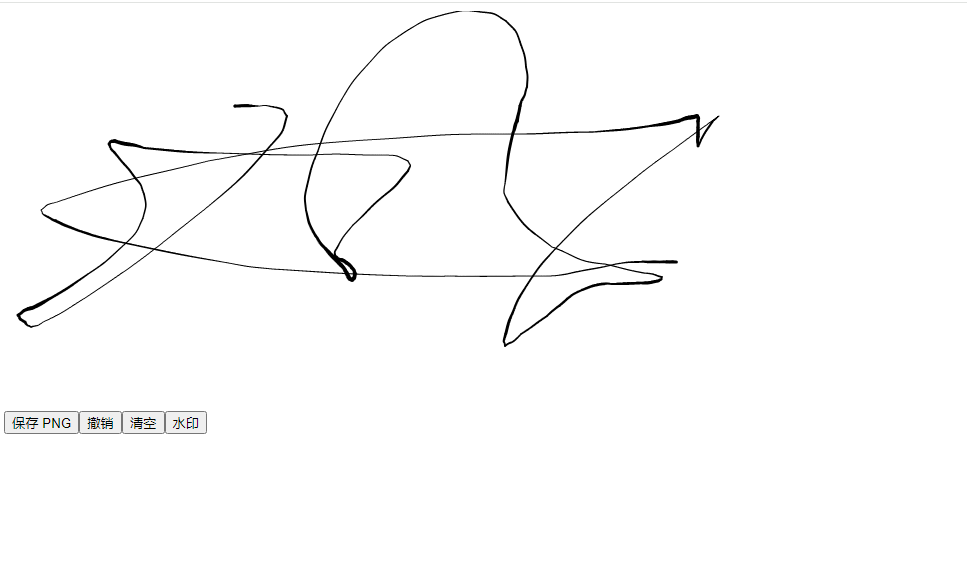

基本使用

vue

<script setup lang="ts">
import { reactive } from 'vue'
import type { Options as SignaturePadOptions } from 'signature_pad'
import { useSignaturePad } from '@/composables/useSignaturePad'

const {
  signatureRef,
  downloadPNG,
  clear,
  undo,
  addWaterMark,
} = useSignaturePad()

const options = reactive<SignaturePadOptions>({
  penColor: '#000',
  backgroundColor: '#fff',
})

</script>

<template>
  <Vue3Signature
      ref="signatureRef"
      :sigOption="options"
      w="800px"
      h="400px"
  />

  <button @click="() => downloadPNG()">保存 PNG</button>
  <button @click="() => undo()">撤销</button>
  <button @click="clear">清空</button>
  <button @click="addWaterMark({ text: 'CONFIDENTIAL' })">
    水印
  </button>
</template>

导出 PNG / JPEG / SVG（格式全家桶）

vue

<script setup lang="ts">
import { reactive } from 'vue'
import type { Options as SignaturePadOptions } from 'signature_pad'
import { useSignaturePad } from '@/composables/useSignaturePad'

const {
  signatureRef,
  savePNG,
  saveJPEG,
  saveSVG,
} = useSignaturePad()

const options = reactive<SignaturePadOptions>({
  penColor: '#000',
  backgroundColor: '#fff',
})

const log = (data: string | null) => {
  console.log(data)
}
</script>

<template>
  <Vue3Signature
    ref="signatureRef"
    :sigOption="options"
    w="800px"
    h="400px"
  />

  <button @click="log(savePNG())">PNG</button>
  <button @click="log(saveJPEG(0.8))">JPEG</button>
  <button @click="log(saveSVG())">SVG</button>
</template>

判断是否为空 + 启用 / 禁用（表单场景）

vue

<script setup lang="ts">
import { reactive } from 'vue'
import type { Options as SignaturePadOptions } from 'signature_pad'
import { useSignaturePad } from '@/composables/useSignaturePad'

const {
  signatureRef,
  isEmpty,
  enable,
  disable,
} = useSignaturePad()

const options = reactive<SignaturePadOptions>({
  penColor: '#1976d2',
  backgroundColor: '#fff',
})

const check = () => {
  alert(isEmpty() ? '当前是空的' : '已有签名')
}
</script>

<template>
  <Vue3Signature
    ref="signatureRef"
    :sigOption="options"
    w="600px"
    h="300px"
  />

  <button @click="check">是否为空</button>
  <button @click="disable">禁用</button>
  <button @click="enable">启用</button>
</template>

数据导出 / 恢复（后端存储签名）

vue

<script setup lang="ts">
import { reactive, ref } from 'vue'
import type { Options as SignaturePadOptions, PointGroup } from 'signature_pad'
import { useSignaturePad } from '@/composables/useSignaturePad'

const {
  signatureRef,
  toData,
  fromData,
  clear,
} = useSignaturePad()

const saved = ref<PointGroup[]>([])

const options = reactive<SignaturePadOptions>({
  penColor: '#000',
})

const save = () => {
  const data = toData()
  saved.value = data
}

const restore = () => {
  clear()
  fromData(saved.value)
}
</script>

<template>
  <Vue3Signature
      ref="signatureRef"
      :sigOption="options"
      w="700px"
      h="350px"
  />

  <button @click="save">保存数据</button>
  <button @click="restore">恢复数据</button>
</template>

URL 导入（历史签名回显）

vue

<script setup lang="ts">
import { reactive } from 'vue'
import type { Options as SignaturePadOptions } from 'signature_pad'
import { useSignaturePad } from '@/composables/useSignaturePad'

const {
  signatureRef,
  fromDataURL,
  clear,
} = useSignaturePad()

const options = reactive<SignaturePadOptions>({
  penColor: '#000',
})

const load = async () => {
  await fromDataURL(
    'https://dummyimage.com/600x300/ffffff/000000.png&text=Signature',
  )
}
</script>

<template>
  <Vue3Signature
    ref="signatureRef"
    :sigOption="options"
    w="600px"
    h="300px"
  />

  <button @click="load">加载远程签名</button>
  <button @click="clear">清空</button>
</template>

裁剪 & 导出（去白边）

vue

<script setup lang="ts">
import { reactive } from 'vue'
import type { Options as SignaturePadOptions } from 'signature_pad'
import { useSignaturePad } from '@/composables/useSignaturePad'

const {
  signatureRef,
  saveTrimmed,
} = useSignaturePad()

const options = reactive<SignaturePadOptions>({
  penColor: '#000',
  backgroundColor: '#fff',
})

const exportTrimmed = () => {
  const data = saveTrimmed()
  console.log(data)
}
</script>

<template>
  <Vue3Signature
    ref="signatureRef"
    :sigOption="options"
    w="800px"
    h="400px"
  />

  <button @click="exportTrimmed">裁剪导出</button>
</template>

底层 SignaturePad 实例（高级定制）

vue

<script setup lang="ts">
import { reactive } from 'vue'
import type { Options as SignaturePadOptions } from 'signature_pad'
import { useSignaturePad } from '@/composables/useSignaturePad'

const {
  signatureRef,
  getInstance,
} = useSignaturePad()

const options = reactive<SignaturePadOptions>({
  penColor: 'red',
  minWidth: 1,
  maxWidth: 3,
})

const tweak = () => {
  const pad = getInstance()
  if (!pad) return

  pad.minWidth = 2
  pad.maxWidth = 4
}
</script>

<template>
  <Vue3Signature
    ref="signatureRef"
    :sigOption="options"
    w="600px"
    h="300px"
  />

  <button @click="tweak">动态调整笔触</button>
</template>

Vue3 Signature ​

基础配置 ​

最简示例 ​

使用组合式函数 ​

创建组合式函数 ​

基本使用 ​

导出 PNG / JPEG / SVG（格式全家桶） ​

判断是否为空 + 启用 / 禁用（表单场景） ​

数据导出 / 恢复（后端存储签名） ​

URL 导入（历史签名回显） ​

裁剪 & 导出（去白边） ​

底层 SignaturePad 实例（高级定制） ​
