Xterm.js

Xterm.js是一个用TypeScript编写的前端组件，它可以让应用程序在浏览器中为用户提供功能齐全的终端。它被流行的项目如VS Code、Hyper和Theia所使用。

官网地址

基础配置

安装依赖

pnpm add @xterm/xterm@6.0.0

安装插件

pnpm add @xterm/addon-fit@0.11.0 @xterm/addon-web-links@0.12.0 @xterm/addon-search@0.16.0 @xterm/addon-clipboard@0.2.0 @xterm/addon-unicode11@0.9.0

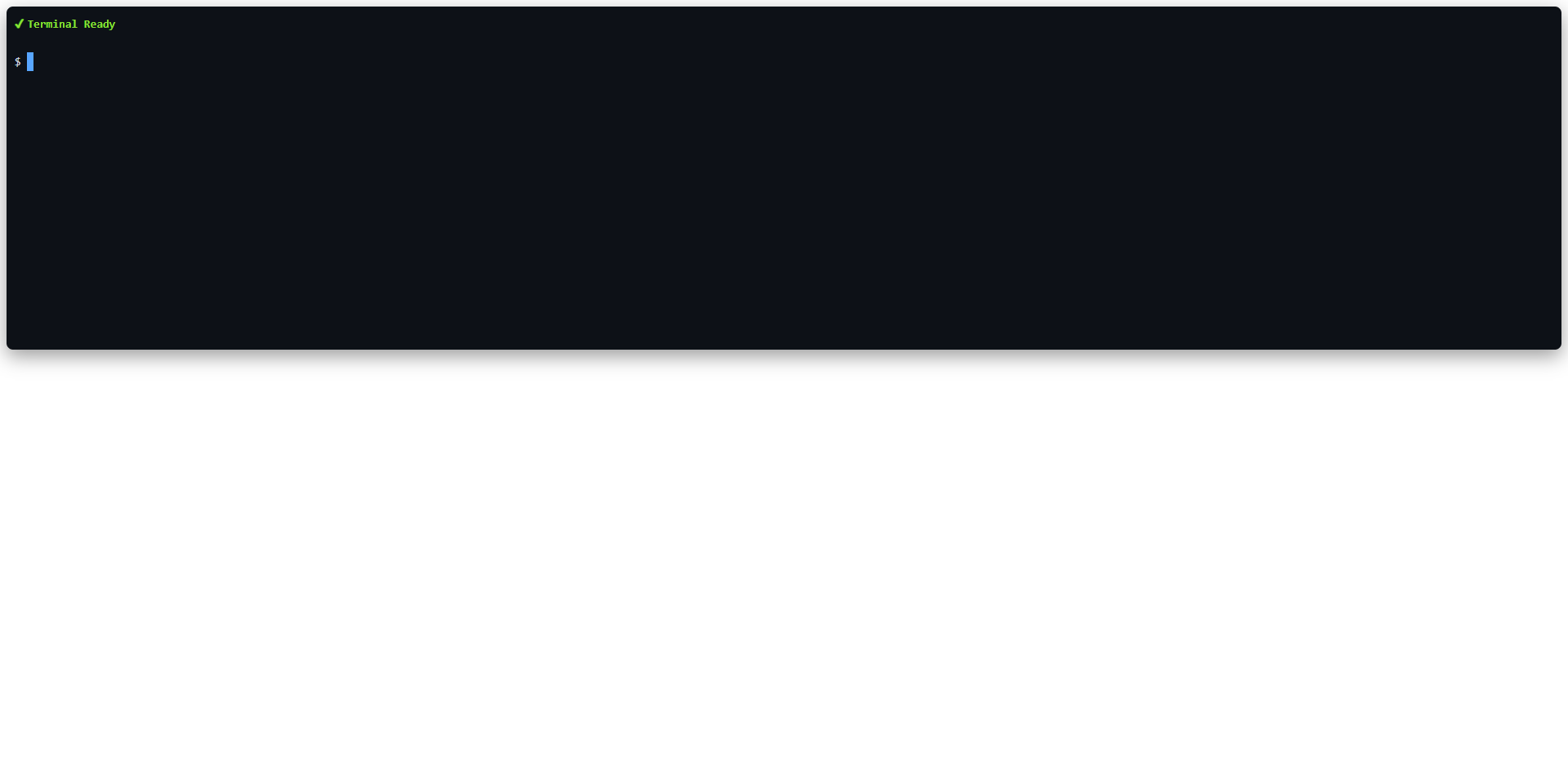

使用示例

vue

<template>
  <div class="terminal-wrapper">
    <div ref="el" class="terminal"></div>
  </div>
</template>

<script setup>
import { ref, onMounted, onBeforeUnmount } from 'vue'

import { Terminal } from '@xterm/xterm'
import { FitAddon } from '@xterm/addon-fit'
import '@xterm/xterm/css/xterm.css'

const el = ref(null)

let term
let fitAddon
let resizeHandler

onMounted(() => {
  term = new Terminal({
    cursorBlink: true,

    // ✅ 更像真实终端的配置
    fontSize: 14,
    lineHeight: 1.4,
    fontFamily: 'Menlo, Monaco, Consolas, "Courier New", monospace',

    theme: {
      background: '#0d1117',   // GitHub dark
      foreground: '#c9d1d9',
      cursor: '#58a6ff',

      black: '#484f58',
      red: '#ff7b72',
      green: '#3fb950',
      yellow: '#d29922',
      blue: '#58a6ff',
      magenta: '#bc8cff',
      cyan: '#39c5cf',
      white: '#b1bac4'
    }
  })

  fitAddon = new FitAddon()
  term.loadAddon(fitAddon)

  term.open(el.value)

  // ✅ 初始适配
  fitAddon.fit()

  // ✅ resize 防抖（优化点）
  let timer
  resizeHandler = () => {
    clearTimeout(timer)
    timer = setTimeout(() => {
      fitAddon.fit()
    }, 100)
  }

  window.addEventListener('resize', resizeHandler)

  // 示例输出
  term.writeln('\x1b[1;32m✔ Terminal Ready\x1b[0m')
  term.write('\r\n$ ')
})

onBeforeUnmount(() => {
  window.removeEventListener('resize', resizeHandler)
  term?.dispose()
})
</script>

<style scoped>
/* 外层容器（让它像一个终端窗口） */
.terminal-wrapper {
  background: #0d1117;
  border-radius: 8px;
  padding: 10px;
  box-shadow: 0 8px 24px rgba(0, 0, 0, 0.4);
}

/* xterm 容器 */
.terminal {
  width: 100%;
  height: 400px;
}

/* 可选：让光标更明显 */
:deep(.xterm-cursor) {
  background-color: #58a6ff !important;
}
</style>

终端输入交互（模拟本地终端）

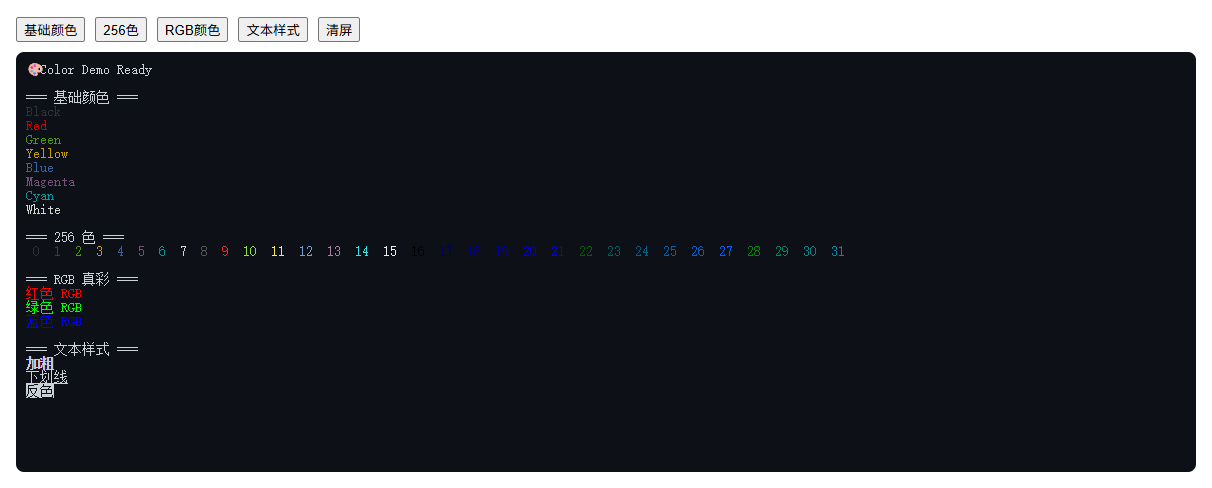

终端彩色输出

vue

<template>
  <div class="page">
    <div class="toolbar">
      <button @click="demoBasic">基础颜色</button>
      <button @click="demo256">256色</button>
      <button @click="demoRGB">RGB颜色</button>
      <button @click="demoStyle">文本样式</button>
      <button @click="clear">清屏</button>
    </div>

    <div class="terminal-wrapper">
      <div ref="el" class="terminal"></div>
    </div>
  </div>
</template>

<script setup>
import { ref, onMounted } from 'vue'
import { Terminal } from '@xterm/xterm'
import { FitAddon } from '@xterm/addon-fit'
import '@xterm/xterm/css/xterm.css'

const el = ref(null)

let term

onMounted(() => {
  term = new Terminal({
    cursorBlink: true,
    fontSize: 14,
    scrollback: 2000,
    theme: {
      background: '#0d1117',
      foreground: '#c9d1d9'
    }
  })

  const fitAddon = new FitAddon()
  term.loadAddon(fitAddon)

  term.open(el.value)
  fitAddon.fit()

  term.writeln('🎨 Color Demo Ready')
})

/* ================= 基础颜色 ================= */
function demoBasic() {
  term.writeln('\r\n=== 基础颜色 ===')

  term.writeln('\x1b[30mBlack\x1b[0m')
  term.writeln('\x1b[31mRed\x1b[0m')
  term.writeln('\x1b[32mGreen\x1b[0m')
  term.writeln('\x1b[33mYellow\x1b[0m')
  term.writeln('\x1b[34mBlue\x1b[0m')
  term.writeln('\x1b[35mMagenta\x1b[0m')
  term.writeln('\x1b[36mCyan\x1b[0m')
  term.writeln('\x1b[37mWhite\x1b[0m')
}

/* ================= 256色 ================= */
function demo256() {
  term.writeln('\r\n=== 256 色 ===')

  for (let i = 0; i < 32; i++) {
    term.write(`\x1b[38;5;${i}m ${i} \x1b[0m`)
  }
  term.writeln('')
}

/* ================= RGB 真彩 ================= */
function demoRGB() {
  term.writeln('\r\n=== RGB 真彩 ===')

  term.writeln('\x1b[38;2;255;0;0m红色 RGB\x1b[0m')
  term.writeln('\x1b[38;2;0;255;0m绿色 RGB\x1b[0m')
  term.writeln('\x1b[38;2;0;0;255m蓝色 RGB\x1b[0m')
}

/* ================= 文本样式 ================= */
function demoStyle() {
  term.writeln('\r\n=== 文本样式 ===')

  term.writeln('\x1b[1m加粗\x1b[0m')
  term.writeln('\x1b[4m下划线\x1b[0m')
  term.writeln('\x1b[7m反色\x1b[0m')
}

/* ================= 清屏 ================= */
function clear() {
  term.clear()
}
</script>

<style scoped>
.page {
  padding: 16px;
}

.toolbar {
  margin-bottom: 10px;
}

button {
  margin-right: 10px;
}

.terminal-wrapper {
  background: #0d1117;
  padding: 10px;
  border-radius: 8px;
}

.terminal {
  height: 400px;
}
</style>

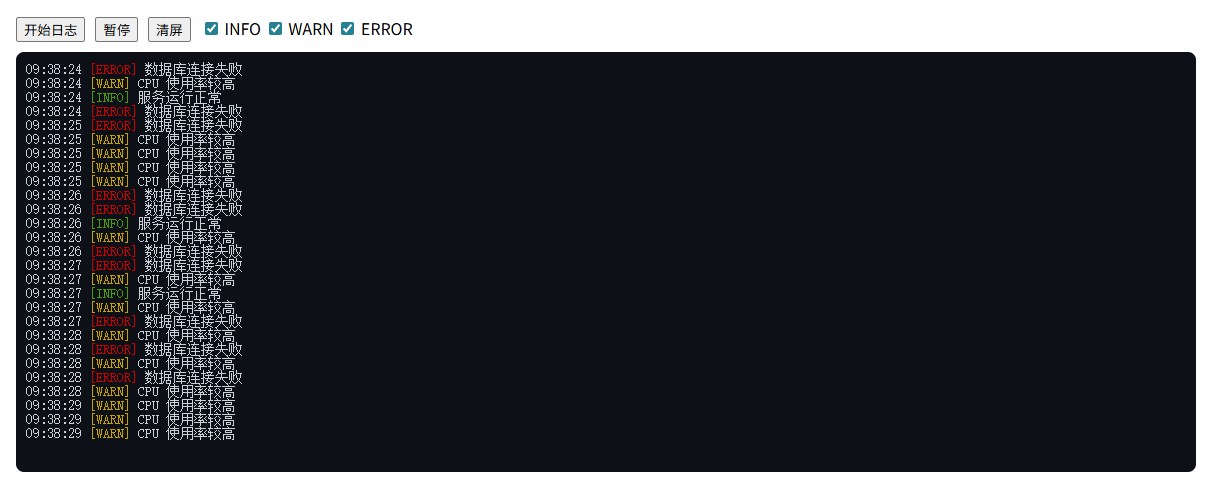

日志终端模式

vue

<template>
  <div class="page">
    <!-- 工具栏 -->
    <div class="toolbar">
      <button @click="start">开始日志</button>
      <button @click="stop">暂停</button>
      <button @click="clear">清屏</button>

      <label>
        <input type="checkbox" v-model="filter.info" /> INFO
      </label>
      <label>
        <input type="checkbox" v-model="filter.warn" /> WARN
      </label>
      <label>
        <input type="checkbox" v-model="filter.error" /> ERROR
      </label>
    </div>

    <!-- 终端 -->
    <div class="terminal-wrapper">
      <div ref="el" class="terminal"></div>
    </div>
  </div>
</template>

<script setup>
import { ref, onMounted, onBeforeUnmount } from 'vue'

import { Terminal } from '@xterm/xterm'
import { FitAddon } from '@xterm/addon-fit'
import '@xterm/xterm/css/xterm.css'

const el = ref(null)

let term
let fitAddon
let timer = null

// 日志过滤
const filter = ref({
  info: true,
  warn: true,
  error: true
})

// 是否暂停自动滚动
let isPaused = false

onMounted(() => {
  term = new Terminal({
    cursorBlink: false,
    scrollback: 10000, // ✅ 大数据量
    fontSize: 14,
    convertEol: true,
    theme: {
      background: '#0d1117',
      foreground: '#c9d1d9'
    }
  })

  fitAddon = new FitAddon()
  term.loadAddon(fitAddon)

  term.open(el.value)
  fitAddon.fit()

  window.addEventListener('resize', () => fitAddon.fit())

  printHeader()
})

onBeforeUnmount(() => {
  stop()
  term?.dispose()
})

/* ================= 日志输出 ================= */

function printHeader() {
  term.writeln('\x1b[36m=== 日志终端模式 ===\x1b[0m')
  term.writeln('\x1b[33m支持：过滤 / 暂停 / 自动滚动\x1b[0m')
}

/* ================= 日志生成 ================= */

function start() {
  if (timer) return

  timer = setInterval(() => {
    const log = generateLog()
    printLog(log)
  }, 200)
}

function stop() {
  clearInterval(timer)
  timer = null
}

/* ================= 日志核心 ================= */

function printLog(log) {
  // 过滤
  if (!filter.value[log.level]) return

  const text = formatLog(log)

  term.writeln(text)

  // 自动滚动（未暂停时）
  if (!isPaused) {
    term.scrollToBottom()
  }
}

/* ================= 日志格式 ================= */

function formatLog({ time, level, message }) {
  const levelMap = {
    info: '\x1b[32m[INFO]\x1b[0m',
    warn: '\x1b[33m[WARN]\x1b[0m',
    error: '\x1b[31m[ERROR]\x1b[0m'
  }

  return `${time} ${levelMap[level]} ${message}`
}

/* ================= 模拟日志 ================= */

function generateLog() {
  const levels = ['info', 'warn', 'error']
  const level = levels[Math.floor(Math.random() * 3)]

  return {
    time: new Date().toLocaleTimeString(),
    level,
    message: getRandomMessage(level)
  }
}

function getRandomMessage(level) {
  if (level === 'info') return '服务运行正常'
  if (level === 'warn') return 'CPU 使用率较高'
  return '数据库连接失败'
}

/* ================= 工具 ================= */

function clear() {
  term.clear()
}

// 用户滚动时暂停自动滚动
term?.onScroll(() => {
  const { viewportY, baseY } = term.buffer.active
  isPaused = viewportY + term.rows < baseY
})
</script>

<style scoped>
.page {
  padding: 16px;
}

.toolbar {
  margin-bottom: 10px;
}

button {
  margin-right: 10px;
}

label {
  margin-right: 10px;
}

.terminal-wrapper {
  background: #0d1117;
  padding: 10px;
  border-radius: 8px;
}

.terminal {
  height: 400px;
}
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187

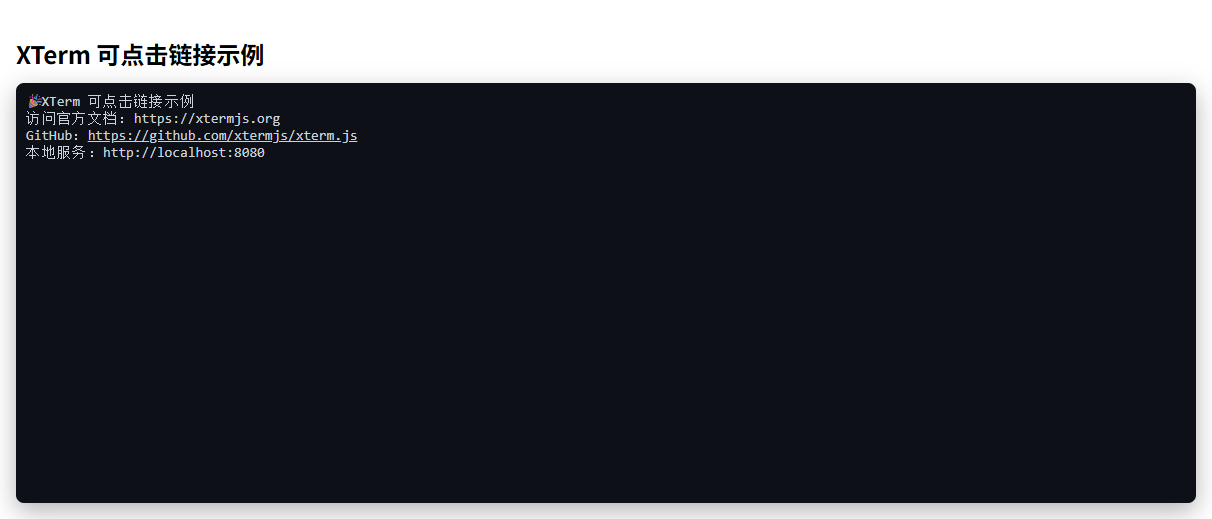

可点击链接（web-links 插件）

vue

<template>
  <div class="page">
    <h2>XTerm 可点击链接示例</h2>
    <div class="terminal-wrapper">
      <div ref="el" class="terminal"></div>
    </div>
  </div>
</template>

<script setup>
import { ref, onMounted, onBeforeUnmount, nextTick } from 'vue'
import { Terminal } from '@xterm/xterm'
import { FitAddon } from '@xterm/addon-fit'
import { WebLinksAddon } from '@xterm/addon-web-links'

import '@xterm/xterm/css/xterm.css'

const el = ref(null)

let term
let fitAddon
let resizeHandler

onMounted(async () => {
  // 等待 DOM 渲染完成
  await nextTick()

  if (!el.value) {
    console.error('Terminal container not found!')
    return
  }

  // 初始化终端
  term = new Terminal({
    cursorBlink: true,
    fontSize: 14,
    scrollback: 5000,
    convertEol: true,
    fontFamily: 'Menlo, Monaco, Consolas, monospace',
    theme: {
      background: '#0d1117',
      foreground: '#c9d1d9',
      cursor: '#58a6ff'
    }
  })

  fitAddon = new FitAddon()
  term.loadAddon(fitAddon)

  // WebLinks 插件（可点击链接）
  term.loadAddon(
      new WebLinksAddon((event, uri) => {
        event.preventDefault()
        console.log('Clicked link:', uri)
        window.open(uri, '_blank') // 打开新窗口
      })
  )

  term.open(el.value)

  // 自动适配大小
  fitAddon.fit()

  // 窗口 resize 重新适配
  resizeHandler = () => fitAddon.fit()
  window.addEventListener('resize', resizeHandler)

  // 输出示例内容
  term.writeln('🎉 XTerm 可点击链接示例')
  term.writeln('访问官方文档：https://xtermjs.org')
  term.writeln('GitHub：https://github.com/xtermjs/xterm.js')
  term.writeln('本地服务：http://localhost:8080')
})

onBeforeUnmount(() => {
  window.removeEventListener('resize', resizeHandler)
  term?.dispose()
})
</script>

<style scoped>
.page {
  padding: 16px;
}

h2 {
  margin-bottom: 12px;
}

.terminal-wrapper {
  background: #0d1117;
  padding: 10px;
  border-radius: 8px;
  box-shadow: 0 8px 24px rgba(0, 0, 0, 0.3);
}

.terminal {
  width: 100%;
  height: 400px;
}

/* 强化链接可见性 */
:deep(.xterm a) {
  color: #58a6ff;
  text-decoration: underline;
}
</style>

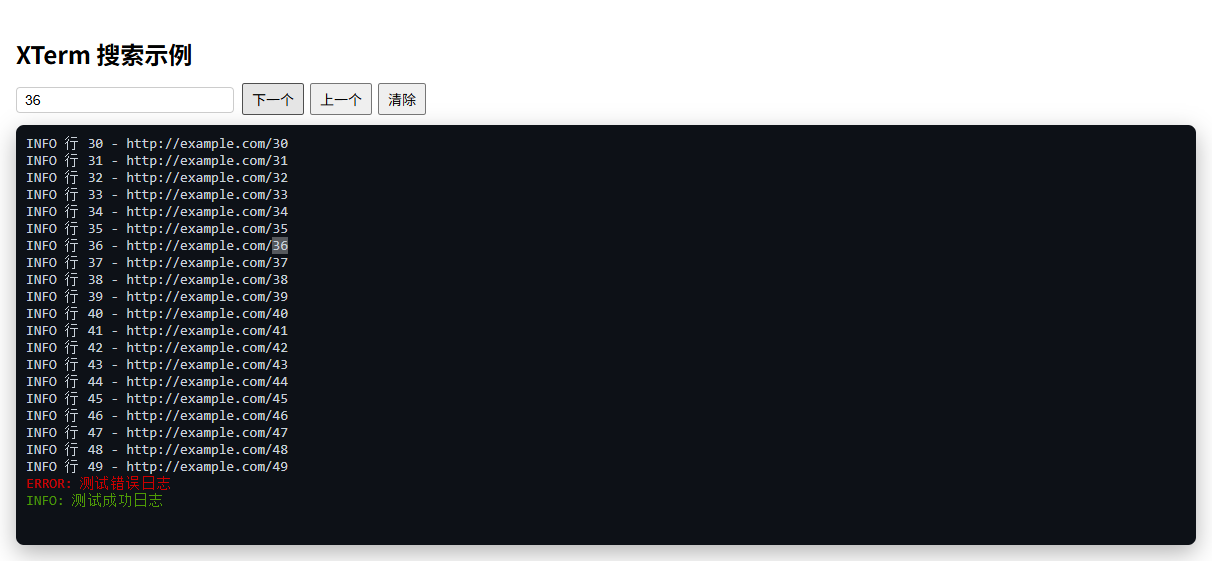

终端搜索

vue

<template>
  <div class="page">
    <h2>XTerm 搜索示例</h2>

    <!-- 搜索栏 -->
    <div class="search-bar">
      <input
          v-model="keyword"
          placeholder="输入关键词或正则"
          @keydown.enter.prevent="searchNext"
      />
      <button @click="searchNext">下一个</button>
      <button @click="searchPrev">上一个</button>
      <button @click="clearSearch">清除</button>
    </div>

    <!-- 终端 -->
    <div class="terminal-wrapper">
      <div ref="el" class="terminal"></div>
    </div>
  </div>
</template>

<script setup>
import { ref, onMounted, onBeforeUnmount, nextTick } from 'vue'
import { Terminal } from '@xterm/xterm'
import { FitAddon } from '@xterm/addon-fit'
import { SearchAddon } from '@xterm/addon-search'
import { WebLinksAddon } from '@xterm/addon-web-links'
import '@xterm/xterm/css/xterm.css'

const el = ref(null)
let term
let fitAddon
let searchAddon
let resizeHandler

const keyword = ref('')

// 初始化终端
onMounted(async () => {
  await nextTick()
  if (!el.value) return

  term = new Terminal({
    cursorBlink: true,
    fontSize: 14,
    scrollback: 5000,
    convertEol: true,
    fontFamily: 'Menlo, Monaco, Consolas, monospace',
    theme: {
      background: '#0d1117',
      foreground: '#c9d1d9',
      cursor: '#58a6ff'
    }
  })

  fitAddon = new FitAddon()
  searchAddon = new SearchAddon()

  term.loadAddon(fitAddon)
  term.loadAddon(searchAddon)
  term.loadAddon(
      new WebLinksAddon((e, uri) => {
        e.preventDefault()
        window.open(uri, '_blank')
      })
  )

  term.open(el.value)
  fitAddon.fit()
  resizeHandler = () => fitAddon.fit()
  window.addEventListener('resize', resizeHandler)

  // 输出示例日志 / 彩色文本
  term.writeln('🎉 XTerm 搜索示例')
  for (let i = 0; i < 50; i++) {
    term.writeln(`INFO 行 ${i} - http://example.com/${i}`)
  }
  term.writeln('\x1b[31mERROR: 测试错误日志\x1b[0m')
  term.writeln('\x1b[32mINFO: 测试成功日志\x1b[0m')
})

onBeforeUnmount(() => {
  window.removeEventListener('resize', resizeHandler)
  term?.dispose()
})

// 搜索功能
function searchNext() {
  if (!keyword.value) return
  searchAddon.findNext(keyword.value, { caseSensitive: false, regex: false })
}

function searchPrev() {
  if (!keyword.value) return
  searchAddon.findPrevious(keyword.value, { caseSensitive: false, regex: false })
}

function clearSearch() {
  searchAddon.clearDecorations()
  keyword.value = ''
}
</script>

<style scoped>
.page {
  padding: 16px;
}

h2 {
  margin-bottom: 12px;
}

.search-bar {
  margin-bottom: 10px;
}

.search-bar input {
  padding: 4px 8px;
  font-size: 14px;
  width: 200px;
  margin-right: 8px;
  border-radius: 4px;
  border: 1px solid #ccc;
}

.search-bar button {
  margin-right: 6px;
  padding: 4px 8px;
  font-size: 14px;
  cursor: pointer;
}

.terminal-wrapper {
  background: #0d1117;
  padding: 10px;
  border-radius: 8px;
  box-shadow: 0 8px 24px rgba(0, 0, 0, 0.3);
}

.terminal {
  width: 100%;
  height: 400px;
}

/* 链接高亮 */
:deep(.xterm a) {
  color: #58a6ff;
  text-decoration: underline;
}
</style>

复制粘贴增强（clipboard）

vue

大数据量终端优化

vue

自动滚动到底部

vue

Unicode / 中文优化

vue

终端主题切换

vue

Xterm.js ​

基础配置 ​

使用示例 ​

终端输入交互（模拟本地终端） ​

终端彩色输出 ​

日志终端模式 ​

可点击链接（web-links 插件） ​

终端搜索 ​

复制粘贴增强（clipboard） ​

大数据量终端优化 ​

自动滚动到底部 ​

Unicode / 中文优化 ​

终端主题切换 ​
